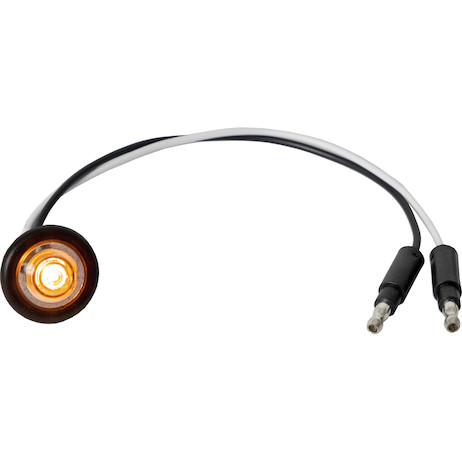

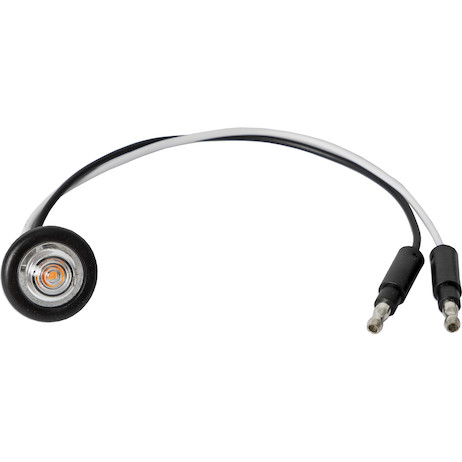

.75 Inch Round Marker Clearance Lights - 1 Amber LED with Clear Lens with Male Bullets
$2.65
Product Information
Description:
0.75 Inch Round Marker Clearance Lights with 1 LED
Buyers Products 0.75 Inch Round Marker Clearance Lights with 1 LED are used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
The round marker lights have a single LED and are PC rated to produce a 90° angle left and right of center when properly mounted.
Lights are available in red, clear, or amber with smooth or faceted lenses. They mount with either blunt cut leads or .180 in. male bullet connectors. The clear lights cannot be used as a marker light.
Lights are sold in bulk (in multiples of 10) and backed with a limited lifetime warranty.
Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. PC rated.
Features:
- Wiring options include leads with blunt cut ends or .180 in. male bullet connector.
- PC rated to produce light at a 90° angle left and right of center.
- Mounting grommet is included.
- Backed with a limited lifetime warranty.
- Lights are IP67 rated.
- Trailers
- Service Vehicles
- Dump Trucks
- Work Trucks
Technical Details
- Mfg #
- 5623443
- SKU
- 5623443
- UPC
- 724920229319
- NMFC #
- 17870SUB5
- Dimensions
- 10 × 1 × 1 inches
- Hard Wired or Plug
- Hard Wired
- Built-In Switch
- No
- Color
- Amber
- IP Rating
- IP67
- Height
- - inch
- Depth
- - inch
- Lens Shape
- Round
- Lens Material
- Polycarbonate
- Voltage
- 12 vdc
- Wattage
- 0.25 watts
- Overall Width
- - inch
- Base / Mount Type
- Recessed
- Number of Wires
- 2
- Housing Material
- Plastic
- Plug Included
- No
- Type of Plug
- Bullet Connectors
- Amp draw at 12 Volts
- 0.021 amps
