Product Information
Description:

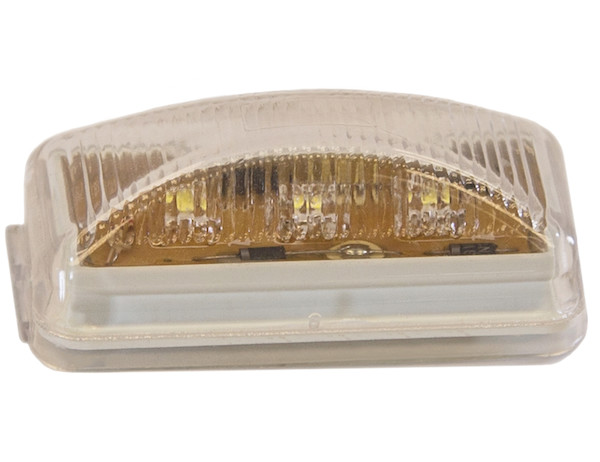

2.5 Inch Surface Mount Marker Light with 3 LEDs
Buyers Products 2.5 Inch Surface Mount Marker Light with 3 LEDs is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
The lights have three LEDs and can be ordered with an amber, red, or clear color lens. They fit existing ID bars or can be mounted using an available flush mount grommet. The clear version can be used as a courtesy light. Lights wire with a PL-10 connection.
Lights are available in bulk (sold in multiples of 10) or individually in kits that include a mounting bracket. They are backed with a limited lifetime warranty.
Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
Features:
- Lights fit existing ID bars.
- Available in bulk (multiples of 10) or individually in kits that include a mounting bracket.
- Backed with a limited lifetime warranty.
- Trucks
- Trailers
Technical Details
- Mfg #
- 5622304
- SKU
- 5622304
- UPC
- 724920152570
- NMFC #
- 17870SUB5
- Dimensions
- 3 × 1 × 1 inches
- Height
- 1.250 inch
- Depth
- - inch
- Base / Mount Type
- Surface
- Overall Width
- 2.500 inch
- Housing Material
- Plastic
- Type of Plug
- PL-10 Connection
- Amp draw at 12 Volts
- 0.042 amps
- Operating Temperature
- fahrenheit
- Wattage
- 0.50 watts
- Lens Material
- Polycarbonate
- Hard Wired or Plug
- Plug
- Voltage
- 12 vdc
- Plug Included
- No
- Lens Shape
- Rectangular
- Color
- Clear
- Built-In Switch
- No
