Product Information
Description

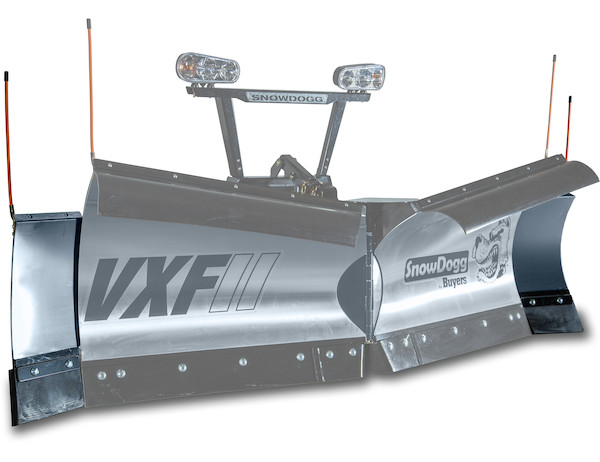

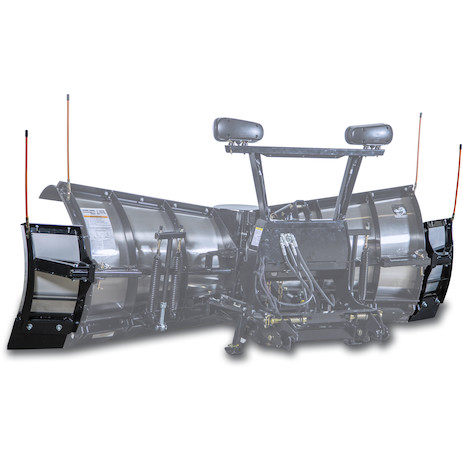

Buyers Products 16021712 SnowDogg VXF Series Wing Kit
Buyers Products SnowDogg VXF Series Plow Wing Kit adds a full 2 ft to your plow to cut down your time per job, serve customers quickly, and maximize your fleet capacity. For easy transport between jobs, the stowable wings can be rotated behind the plow with a pull of a pin -- no lifting required.
The shear attachment pin is a safeguard designed to break upon stressful impact to help protect your plow and wings from expensive damage. Product Common Use: Parking lots
Features
- Cut down on your time per job by adding a full 2 ft to your plow.
- Wings fold behind plow for easy stowing and transport between jobs.
- Integrated torsion lock ensures wings add a stiff plow extension.
- Shear attachment pin designed to break upon stressful impact to help protect your plow and wings from expensive damage.
Technical Details
- Mfg #
- 16021712
- SKU
- 16021712
- Weight
- 124 lbs.
- Dimensions
- 32 × 26 × 23 inches
- Cutting Edge Height
- - inch
- Cutting Edge Material
- Rubber
- Deflector
- -
- Markers
- Orange Wire Reinforced
- Trip Springs
- -
- Trip Adjustment
- -
- Cutting Edge Thickness
- 1.500 inch
- Moldboard Thickness
- .075 inch
- Trip Type
- None
- Finish
- Powder Coat with Primer
- Color
- Black
- Moldboard Material
- 304 Stainless Steel
- Blade Width
- 11 inch
- Plowing Width at Angle
- -
- Additional Structual Support
- 2 in. Cross Tube
- Support Ribs
- 2
- Blade Attack Angle
- 70 degreeangle
- Blade Height
- 30 inch
