Hitch Plate with Pintle Mount for GMC®/Chevy®/International® 4500HD-6500HD (2019+) - Bottom Channel
Product Information
Description:

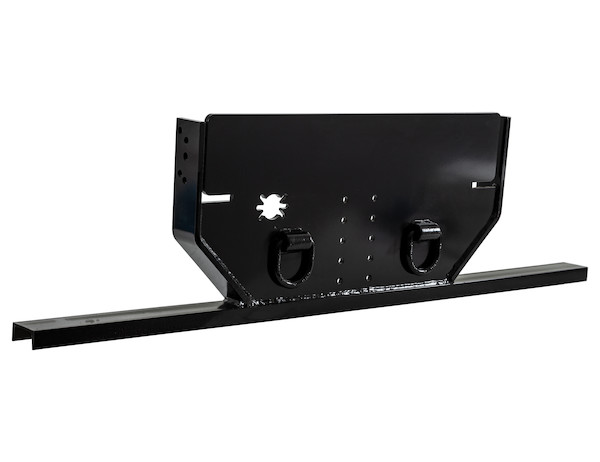

Pintle Mount Hitch Plate with Bottom ICC Channel
The Hitch Plate for Pintle Mounting with Bottom Channel from Buyers Products features multiple pintle hook mounting positions, two forged D-rings, and a pre-punched hole that fits most trailer electrical connectors.
The hitch plate is pre-fabricated and ready to use. The 1/2 in. thick hitch plate includes ICC bumper protection and features a black powder-coated finish for corrosion resistance. It should be both welded and bolted to the frame.
Available in several chassis-specific models (not for pickups). Please consult the vehicle/chassis owner's manual before installing. For use with cab and chassis trucks with a nominal 34 in. frame width.
Features multiple pintle hook mounting positions, two forged D-rings, and a trailer connector location.
Features:
- Ready-to-use with little or no fabrication needed.
- For use with cab and chassis trucks with a nominal 34 in. frame width.
- Corrosion-resistant black powder-coated finish.
- Built-in trailer connector location.
- Four pintle hook mounting positions.
- Built-in ICC bumper protection.
- Made in the USA.
- Upfitters
Technical Details
- Mfg #
- 1809080
- SKU
- 1809080
- UPC
- 724920176170
- NMFC #
- 106140
- Weight
- 120 lbs.
- Dimensions
- 62 × 18 × 8 inches
- Style
- Cab & Chassis
- Receiver Size (in.)
- - inch
- Model
- 4500HD - 6500HD
- M.G.T.W. (lbs.)
- 20,000 pounds
- Color
- Black
- Finish
- Powder-Coat
- Material
- Carbon Steel
- Hitch Plate or Bumper
- Hitch Plate with Bottom Bumper
- Width (in.)
- 62.00 inch
- Height (in.)
- 17.10 inch
- Thickness (in.)
- 1/2 inch
- Year
- 2019+
- Application Specific (Y/N)
- Yes
- Application Summary
- Chevy/GMC/International 4500HD - 6500HD Cab & Chassis (2019+)
- Make
- Chevy®/GMC®/International®
