SaltDogg

SaltDogg Under Tailgate Spreader Standard Discharge-8 Inch Sides-Stainless 5:1

$5,333.90

Product Information

Description:

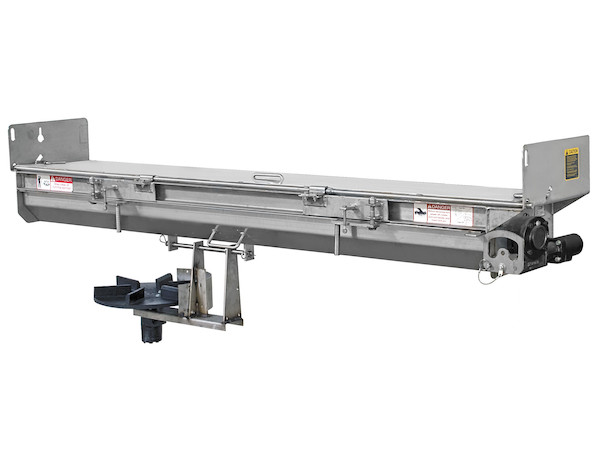

SaltDogg® Hydraulic Under Tailgate Spreader

Buyers Products SaltDogg Hydraulic Under Tailgate Spreader is the perfect way for contractors and municipalities to convert their dump trucks into winter warriors. It can handle spreading bulk sand, salt, or 50/50 salt/sand mixes and fits 96 in. wide dump bodies.

The spreader is built to last with corrosion resistant 304 stainless steel. It features an anti-flow plate and a hydraulic safety lockout. Its 6 in. auger with 3/8 in. flighting provides steady material flow. An auger screen is included to help break up clumps and prevent jams, and a three-point hinged bottom cover allows easy access to the entire auger assembly and hassle-free cleaning.

Spread material up to 40 ft with the 18 in. poly spinner (available with standard, center, or driver side discharges). The spreader is also available in direct drive or 5:1 gearbox configurations. Both systems feature sealed, self-aligning 1-1/4 in. diameter bearings with grease fittings and low-speed, high-torque orbital motors.

Buyers Products offers additional options that can make the spreader suit your needs, including hard-face flighting and stainless steel spill shields. Call for more information.

Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS. See Related Products below.

Features corrosion resistant 304 stainless steel construction.

Features:

  • Works with 96 in. wide dump bodies.
  • Rugged 6 in. auger with 3/8 in. flighting.
  • Independent hydraulic auger and spinner motors.
  • Handles bulk salt or a 50/50 sand/salt mix.
  • 18 in. poly spinner can cast material up to 40 ft.
  • High quality 304 stainless steel construction.
  • Made in the USA.
  • Dump Bodies
  • Snow and Ice Control
  • Road and Highway Maintenance

Technical Details

Mfg #
92430SSA
SKU
92430SSA
UPC
724920108355
NMFC #
130355SUB6
Weight
515 lbs.
Dimensions
96 × 20 × 26 inches
Feed Mechanism2
6 in. Auger with 3/8 in. Flighting
Discharge Position
Standard
Side Plate Height
8.00 inch
Gearbox Ratio
5:1
Spinner Diameter
18.00 inch
Spinner Material
Polyurethane
Spreading Width Range
4 To 40 feet
Chute Primary Material
304 Stainless Steel
Chute
Adjustable Height
Controller Type
Not Included
Vibrator Included?
No
Number of Motors
2
Feed Mechanism
Horizontal Auger
Top Screen
Yes
Works with Bagged #1 Rock Salt
Yes
Works with Salt / Sand Mix
Yes
Included Cover
Y
Works with Bulk Sand
Yes
Works with Bulk Salt
Yes
Hopper Width (in.)
96.00 inch
Hopper Length (in.)
18.00 inch
Overall Width (at top)
96.00 inch
Overall Length
18.00 inch
Vehicle Application
Multiple Dump Body Configurations
Drive Type
Hydraulic
Capacity
- cubicyards
Overall Height (in.)
31.25 inch
Hopper Material
304 Stainless Steel
