Product Information
Description:

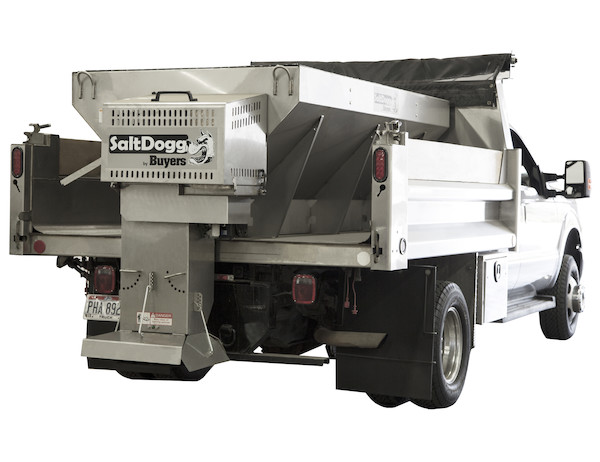

SaltDogg® 2.5-3 Cubic Yard Gas Conveyor Chain Spreader (Discontinued Models)
Please note: all products listed on this page have been discontinued. Buyers has upgraded all mid size spreaders.
Gives contractors and municipalities a gas-powered spreader ready for commercial use.
Features:
- Designed for dump bodies and flatbeds with a minimum 13,000 lb GVW (gross vehicle weight).
- Available with 96 in., 108 in., or 120 in. hoppers with a capacity from 2.5 to 3 cubic yards.
- 10-1/2 HP gas engine with convenient electric start and throttle control.
- Spreads bulk salt, bulk sand, or a 50/50 salt/sand mix.
- In-cab controls with independent variable speeds for the conveyor and spinner.
- 18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute.
- Versatile 14-1/2 in. chain conveyor drive with 1/4 in. crossbars.
- Two chute baffles allow you to adjust the spread pattern to your application.
- High quality, 304 stainless steel construction for optimum corrosion resistance.
- Stainless steel inverted V improves flow and reduces stress on the drive line.
- Two hinged top screens with 1/4 in. bars included.
- Made in the USA.
- Property Maintenance
- Residential & Commercial
- Parking Lots
- Sidewalks
Technical Details
- Mfg #
- 1400460SS
- SKU
- 1400460SS
- UPC
- 724920139007
- NMFC #
- 130355SUB5
- Weight
- 1460 lbs.
- Dimensions
- 127 × 58 × 38 inches
- Feed Mechanism2
- 14 1/2 in. Pintle Chain with 1/4in. Bars
- Gearbox Ratio
- 20:1
- Vibrator Included?
- No
- Number of Motors
- 1
- Drive Motor Horse Power
- 10.50 horsepower
- Feed Mechanism
- Conveyor Chain
- Top Screen
- Yes
- Included Cover
- N
- Works with Bagged #1 Rock Salt
- Yes
- Works with Bulk Sand
- Yes
- Works with Salt / Sand Mix
- Yes
- Works with Bulk Salt
- Yes
- Hopper Length (in.)
- 108.00 inch
- Hopper Width (in.)
- 58.00 inch
- Overall Length
- 127.90 inch
- Overall Width (at top)
- 58.00 inch
- Overall Height (in.)
- 38.00 inch
- Capacity
- 2.75 cubicyards
- Vehicle Application
- Dump Bodies & Flat Beds
- Drive Type
- Gas
- Hopper Material
- 304 Stainless Steel
- Chute
- Standard
- Controller Type
- In-Cab Throttle/Choke
- Chute Primary Material
- 304 Stainless Steel
- Spinner Diameter
- 18.00 inch
- Spinner Material
- Polyurethane
- Spreading Width Range
- 2 To 30 feet
