SaltDogg

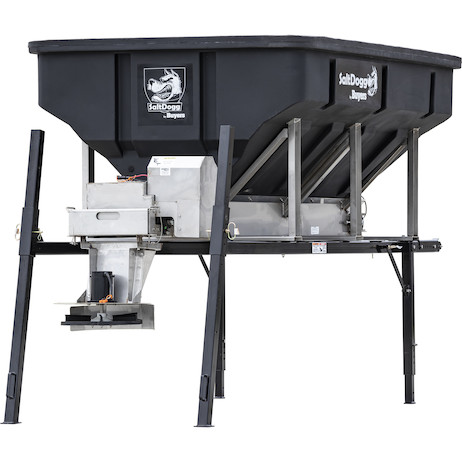

SaltDogg® PRO4000HCH Hydraulic Poly Hopper Spreader With Conveyor Chain

$9,096.10

Product Information

Description:

SaltDogg® PRO4000CH Series Poly Hopper Spreaders with Conveyor Chain

Buyers Products SaltDogg PRO4000CH Series Poly Hopper Spreaders are a powerful spreader designed for commercial and municipal use. The spreader works with dump trucks and flatbeds with a minimum 17,500 GVW (gross vehicle weight). The 4 cubic yard spreader handles bulk salt, sand, or a 50/50 salt/sand mix. Its electric-powered design means quieter operation that doesn't require refueling or engine servicing, giving you more time on the road. The hydraulic version provides the extra power needed for municipal applications.

A PRO Series spreader is an investment made to last. The double-wall, lighter weight, all-poly hopper won't rust or dent. A simple cleaning makes it look like new. The spreader is supported by a corrosion-resistant stainless steel frame. An inverted V eases start up and works with the included 400 lb vibrator to break up clumps and keep material flowing.

The all steel 14-1/2 in. pintle chain conveyor with 1/4 in. bars, driven by a 3/4 HP, 12V gear motor or 3.17 CI hydraulic motor, feeds material at a smooth, steady pace. An 18 in. polymer spinner, powered by an independent 1/2 HP, 12V motor or 3.17 CI hydraulic motor, casts material 5-30 ft. The adjustable chute has an open trough and stainless steel spinner shield. The spinner assembly is easily removable for cleaning and storage.

Intuitive in-cab controls for the electric version let you independently manage conveyor and spinner speeds and turn the vibrator on and off with the flick of a switch. The spreader also comes standard with two steel top screens and a vinyl tarp with tie down kit.

The PRO4000CH Series is backed with a 2 year warranty.

A powerful spreader for commercial and municipal use.

Features:

  • Works with dump trucks and flatbeds with minimum 17,500 lb GVW (gross vehicle weight).
  • Durable 4 cubic yard poly hopper with stainless steel frame and trough.
  • 12V DC-powered electric or hydraulic drive with independent conveyor and spinner motors.
  • Handles bulk salt, sand, or a 50/50 sand/salt mix.
  • In-cab control of independent auger and spinner speeds, with vibrator control electric version only.
  • 18 in. spinner broadcasts material up to 30 ft.
  • A high flow 14-1/2 inch conveyor chain keeps the material moving to the spinner.
  • Included 400 lb vibrator keeps material from clumping and getting stuck.
  • Top screens, inverted V, and tie downs included
  • Backed with a 2 year warranty.
  • Made in the USA.
  • Industrial Parking Lots
  • City Roadways
  • Commercial Properties
  • Apartment Complexes

Technical Details

Mfg #
PRO4000HCH
SKU
PRO4000HCH
UPC
724920238557
NMFC #
130355SUB5
Feed Mechanism2
14 1/2 in. Pintle Chain with 1/4in. Bars
Gearbox Ratio
20:1
Spreading Width Range
5 to 30 feet
Spinner Diameter
18.00 inch
Spinner Material
Polyurethane
Chute
Adjustable Height w/Side Swing
Controller Type
High Current Variable Speed
Chute Primary Material
Polyethylene
Vibrator Force
450 pounds
Vibrator Included?
Yes
Number of Motors
2
Trough Material
304 Stainless Steel
Feed Mechanism
Conveyor Chain
Top Screen
Yes
Works with Bagged #1 Rock Salt
Yes
Works with Bulk Sand
Yes
Works with Salt / Sand Mix
Yes
Works with Bulk Salt
Yes
Frame Base Width
56.40 inch
Hopper Length (in.)
99.50 inch
Hopper Width (in.)
74.00 inch
Capacity
4.00 cubicyards
Overall Width (at top)
74.00 inch
Drive Type
Electric
Overall Length
114.80 inch
Hopper Material
Polyethylene
Hopper Color
Black
Overall Height (in.)
43.50 inch
