SaltDogg™ Electric Replacement Tailgate Spreader Drivers Discharge

$6,273.80

Product Information

Description:

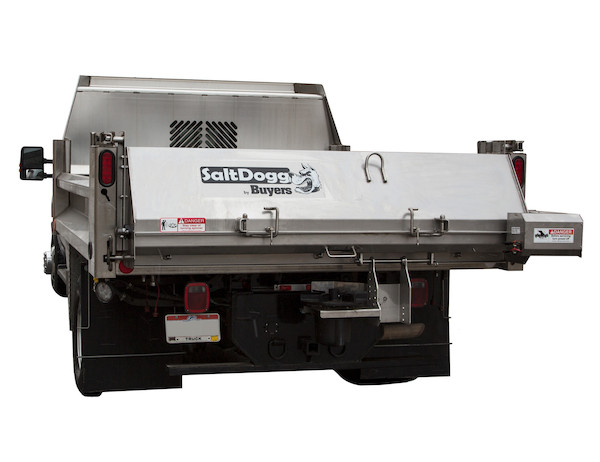

SaltDogg® Electric Replacement Tailgate Spreader

Buyers Products SaltDogg Electric Replacement Tailgate Spreader is designed to install in place of the tailgate of 1 ton dump bodies. It is easy to mount and dismount and is ideal for dump bodies with low ground clearance. The spreader can handle bulk salt or a 50/50 salt/sand mix.

The spreader is constructed of corrosion resistant 304 stainless steel for ultimate durability and corrosion resistance. It features an anti-flow plate as well as a lifting loop for ease of installation. The spreader is equipped with a 6 in. dual flight auger with 3/8 in. flighting that keeps material moving and screens on either end. It's powered by a 3/4 HP motor.

A second 1/2 HP motor powers the 18 in. poly spinner and can spread material up to 25 ft. The spreader is controlled by a heavy duty in-cab controller with independent variable speeds for the conveyor and spinner.

Ideal for dump bodies with low ground clearance.

Features:

  • Fits in place of tailgate on a 1 ton/super duty dump body.
  • Ideal for dump bodies with low ground clearance.
  • High quality 304 stainless steel construction.
  • Handles bulk salt or a 50/50 salt/sand mix.
  • In-cab controls with independent variable speeds for the auger and spinner.
  • 18 in. spinner casts up to 25 ft.
  • 6 in. auger with 3/8 in. dual flighting keeps material moving.
  • Easy to mount and remove with built-in lift point.
  • Available with center or left side discharge.
  • Made in the USA.
  • Salt Spreaders
  • Dump Trucks
  • Road and Highway Maintenance

Technical Details

Mfg #
9035101
SKU
9035101
UPC
724920151030
NMFC #
130355SUB3
Weight
502 lbs.
Dimensions
90 × 32 × 20 inches
Hopper Material
304 Stainless Steel
Capacity
- cubicyards
Hopper Width (in.)
84.27 inch
Works with Bulk Salt
Yes
Hopper Length (in.)
23.80 inch
Works with Salt / Sand Mix
Yes
Works with Bagged #1 Rock Salt
Yes
Works with Bulk Sand
No
Included Cover
Y
Top Screen
Yes
Feed Mechanism
Horizontal Auger
Drive Motor Horse Power
0.75 horsepower
Number of Motors
2
Trough Material
304 Stainless Steel
Vibrator Included?
No
Controller Type
High Current Variable Speed
Chute Primary Material
304 Stainless Steel
Chute
Adjustable Height
Spreading Width Range
4 To 25 feet
Spinner Material
Polyurethane
Spinner Diameter
18.00 inch
Gearbox Ratio
Direct
System Voltage
12 vdc
Discharge Position
Driver Side
Overall Length
23.80 inch
Overall Width (at top)
84.27 inch
Feed Mechanism2
6 in. Auger with 3/8 in. Flighting
Vehicle Application
Multiple Dump Body Configurations
Overall Height (in.)
36.00 inch
Drive Type
Electric
