SnowDogg

SnowDogg® VXF85II Snow Plow - 102" with RapidLink™ Attachment System

In order to add this product to your cart, configure a kit for your specific vehicle.

$7,227.00

Product Information

Description:

SnowDogg® VXFII Snow Plow - 102" with RapidLink™ Complete Plow Package

Buyers Products SnowDogg VXFII Snow Plow gives commercial users a powerful and versatile v-blade with intuitive one-handed controls. 3/4 Ton with Plow Prep and 1+ Ton Trucks

Low Maintenance Blades

Dual corrosion resistant 304 stainless steel moldboards never need paint. A robust frame spreads impact across the blades to reduce wear on vital components.

  • Full-length 2 in. cross tube
  • Heavy duty bottom channel
  • Four 1/4 in. laser-cut steel ribs per wing
  • 1/2 in. cutting edges
Quick and Easy Attachment

Mount and dismount in one minute or less with the new RapidLink™ Attachment System.

  • Center-mounted drop foot props up your plow on any surface with the pull of a handle
  • Hydraulically powered Jack Switch™ adjusts your plow's mounting height on the fly so it's easy to line up with your vehicle
  • Connects to your truck with a single driver side foot pedal

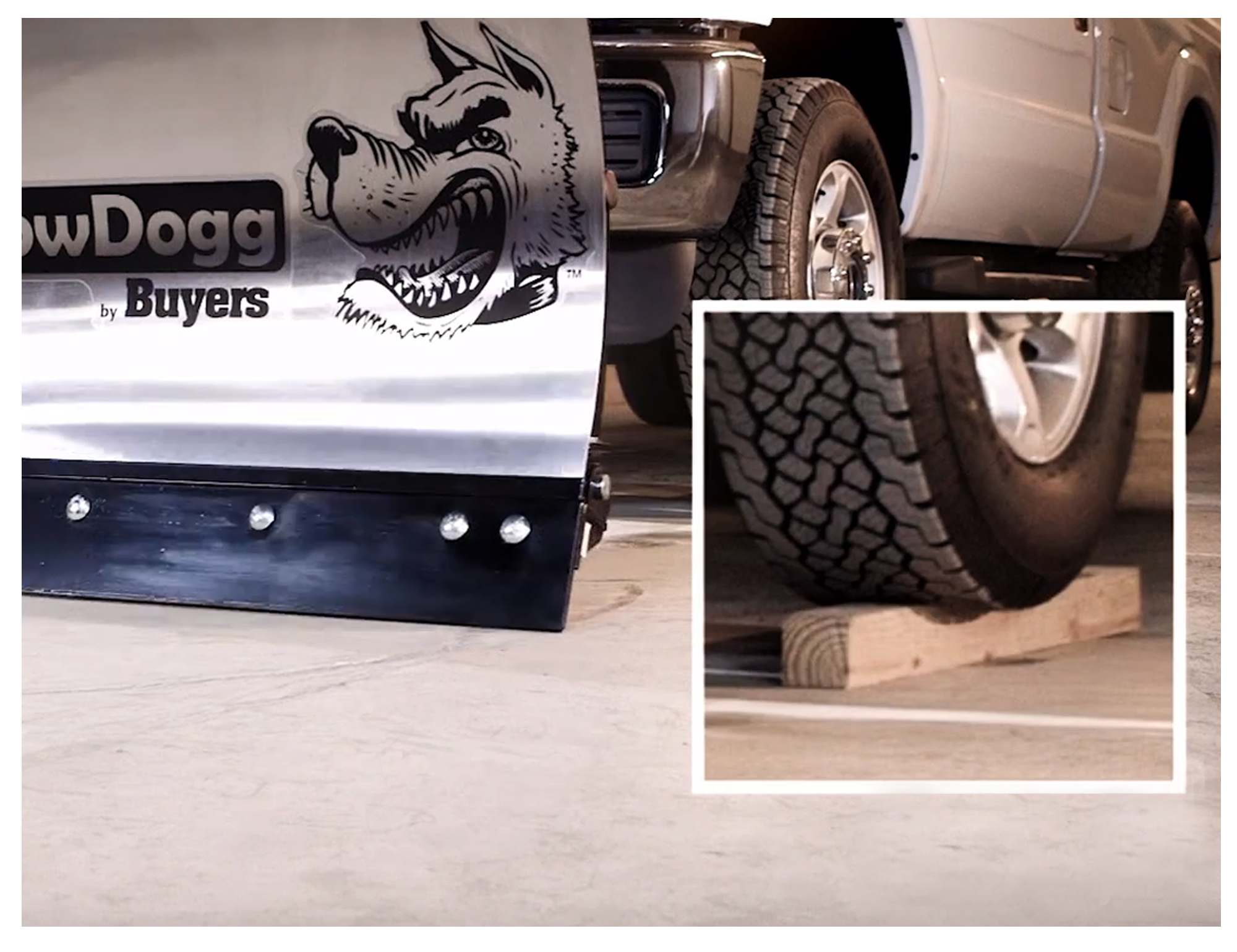

Clean, Even Scrape

The tubular steel Floating A-Frame features a sliding-pin connection, so the plow contours the ground for a clean, efficient scrape. Outstanding performance at any mounting height.

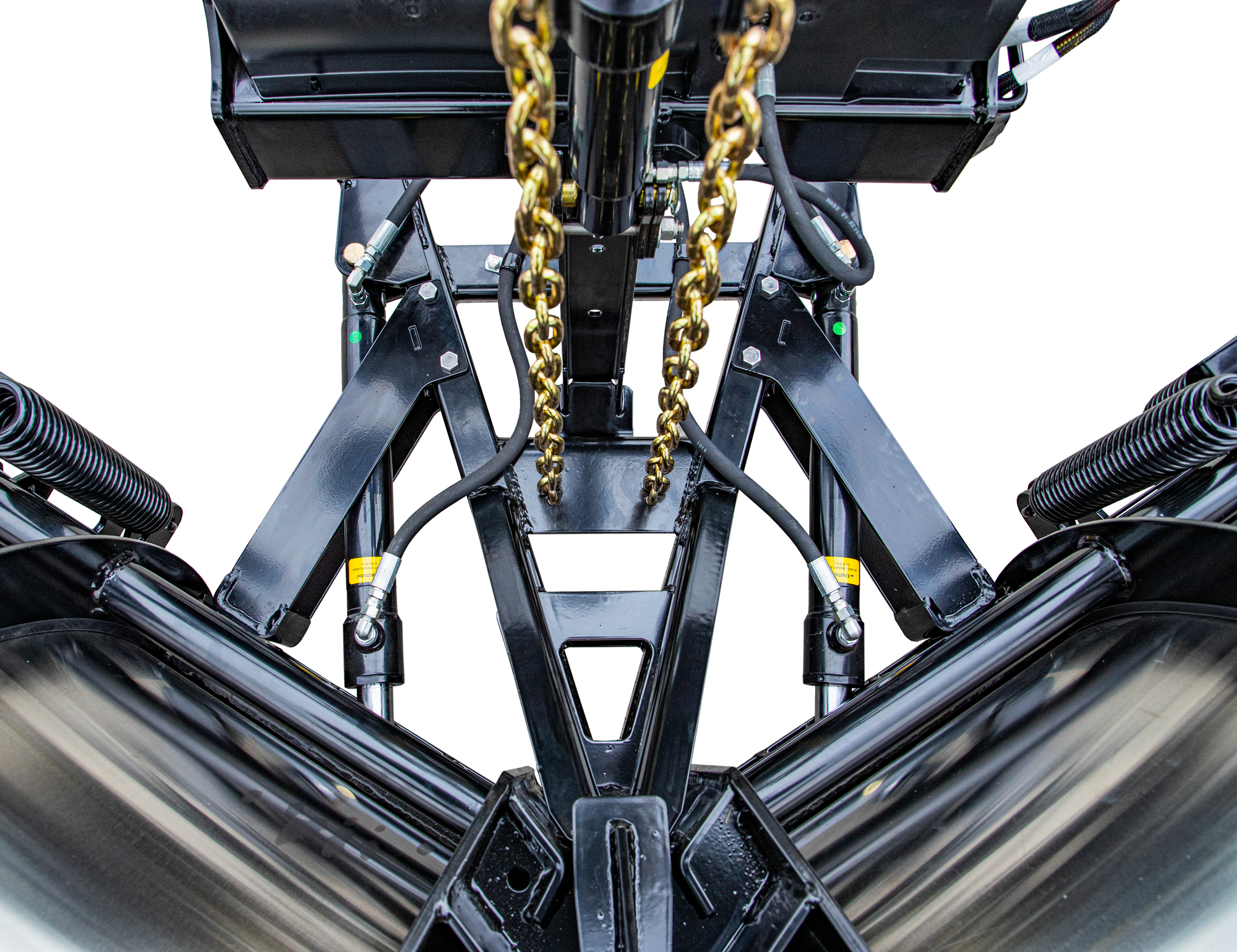

Components You Can Rely On

From the municipal style chain lift to the fully enclosed hydraulic power unit, the VXFII is built to endure whatever winter throws at you.

  • Powerful 2 in. lift cylinders
  • Over-sized 1-1/2 in. angle cylinders
  • Fully enclosed 2 HP hydraulic power unit
  • SAE standard cartridge valves and hefty 3/8 in. rubber hoses

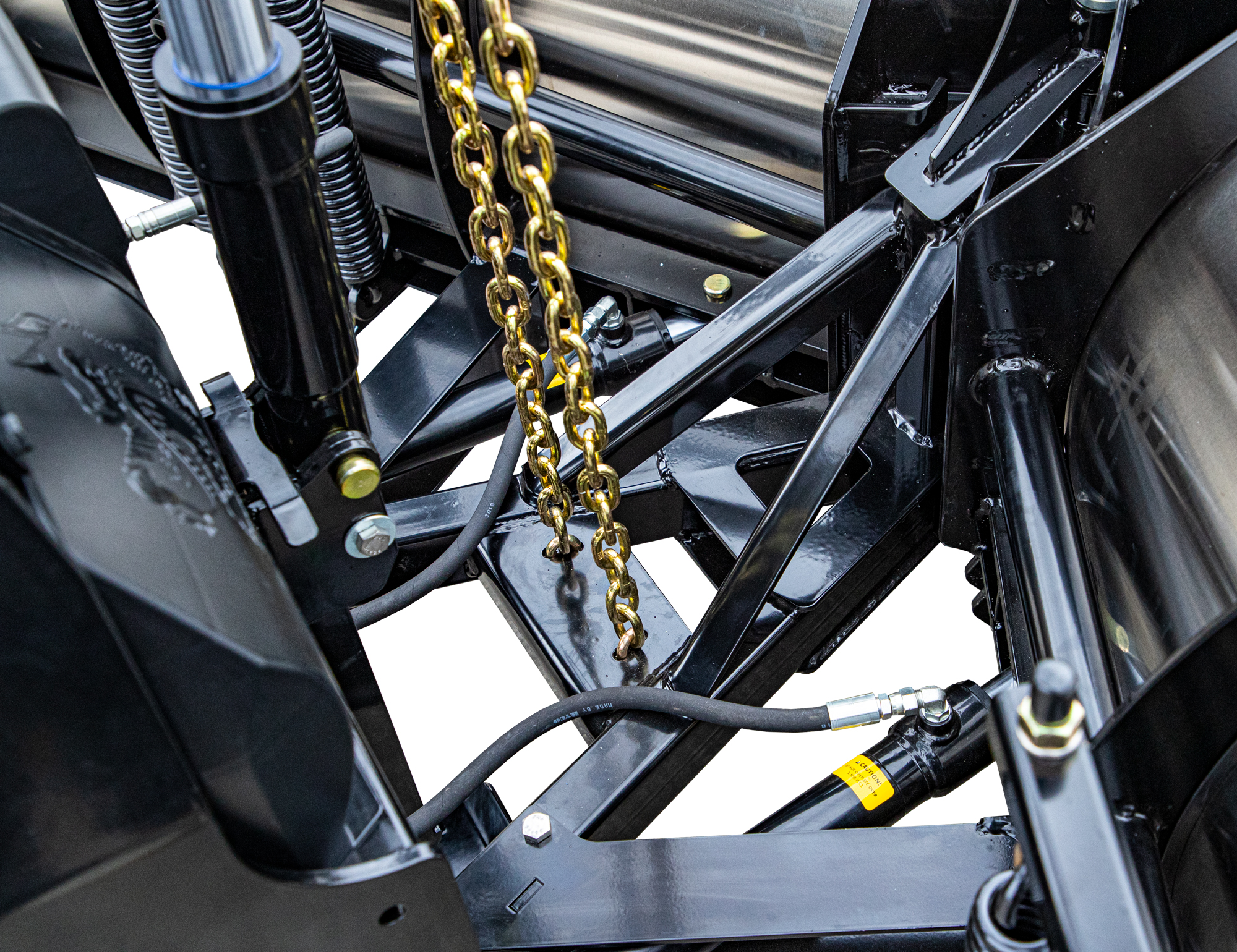

Powerful Back Dragging

Double acting 1-3/4 in. angle cylinders make it easy to put snow where you want it. Back drag with confidence, even in tight spaces.

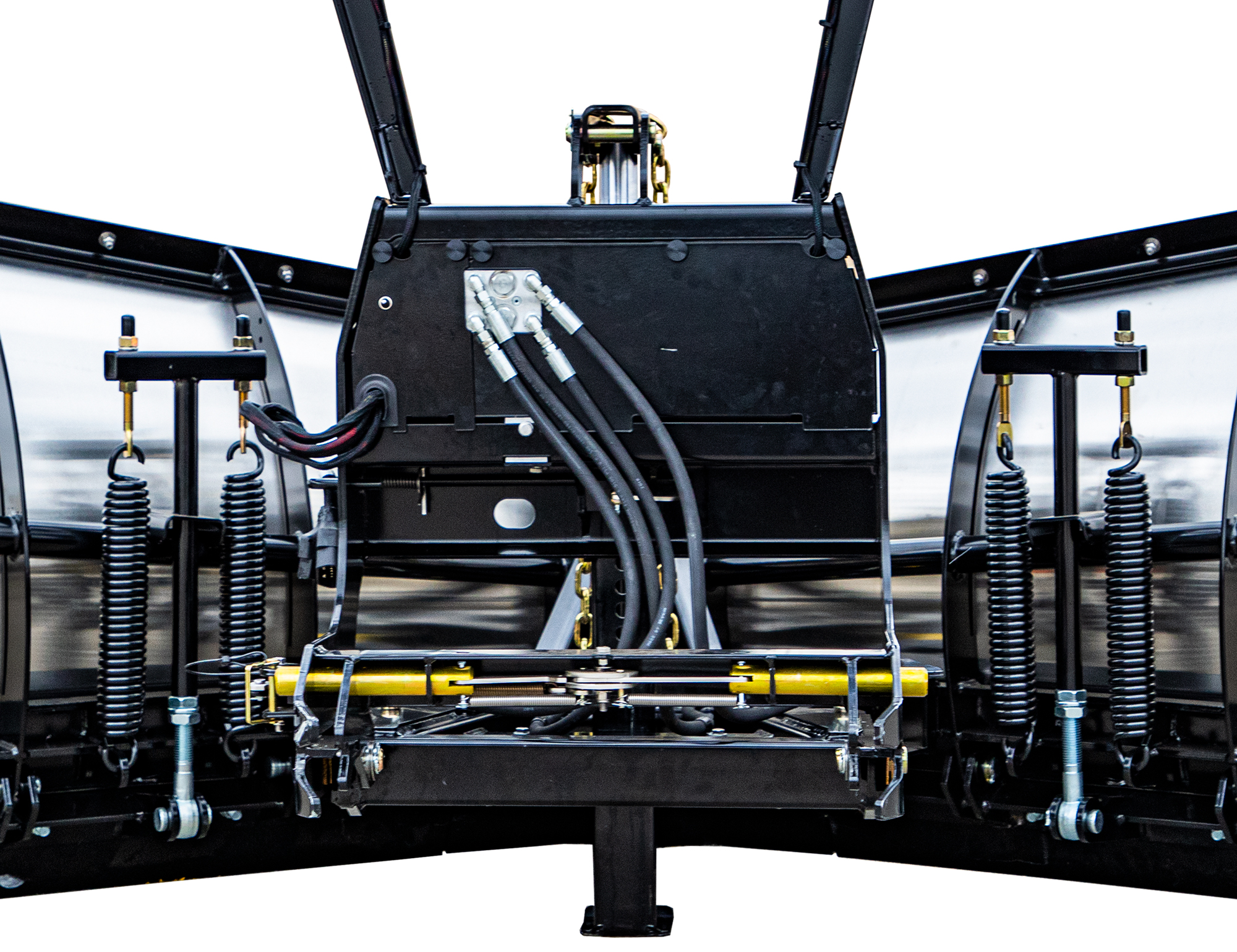

Smooth Trip Edge Action

Each wing has an independent 6 in. trip edge and two stress-optimized trip springs to protect your equipment from hidden curbs and obstacles without dumping the snow you're pushing.

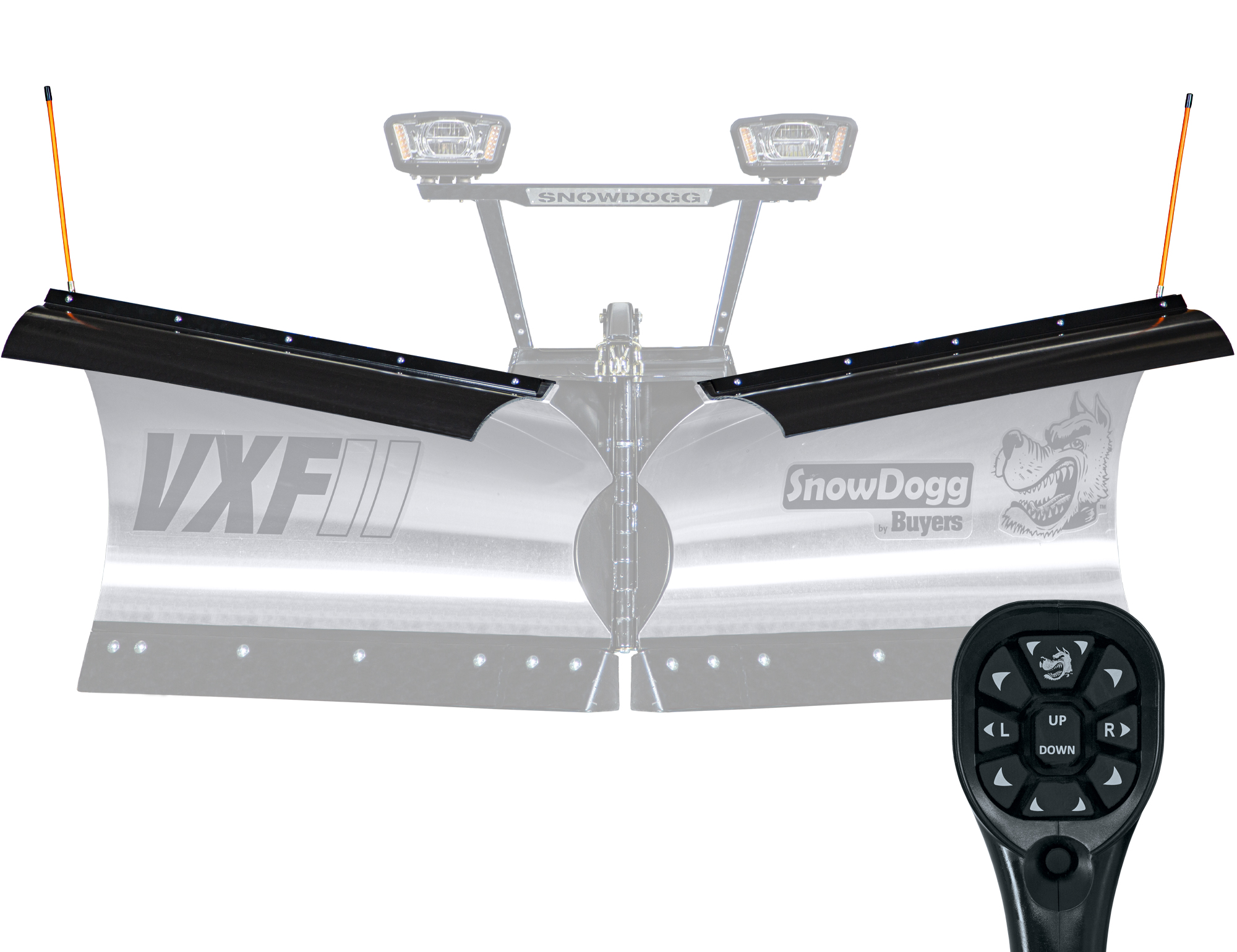

Included Accessories

Intuitive in-cab controls are simple to use even with gloves on. The backlit, one-handed controller puts all plows functions, including angle, scoop, and V, in the palm of your hand.

Other standard accessories:

  • Contoured poly snow deflector
  • Wire reinforced blade guides

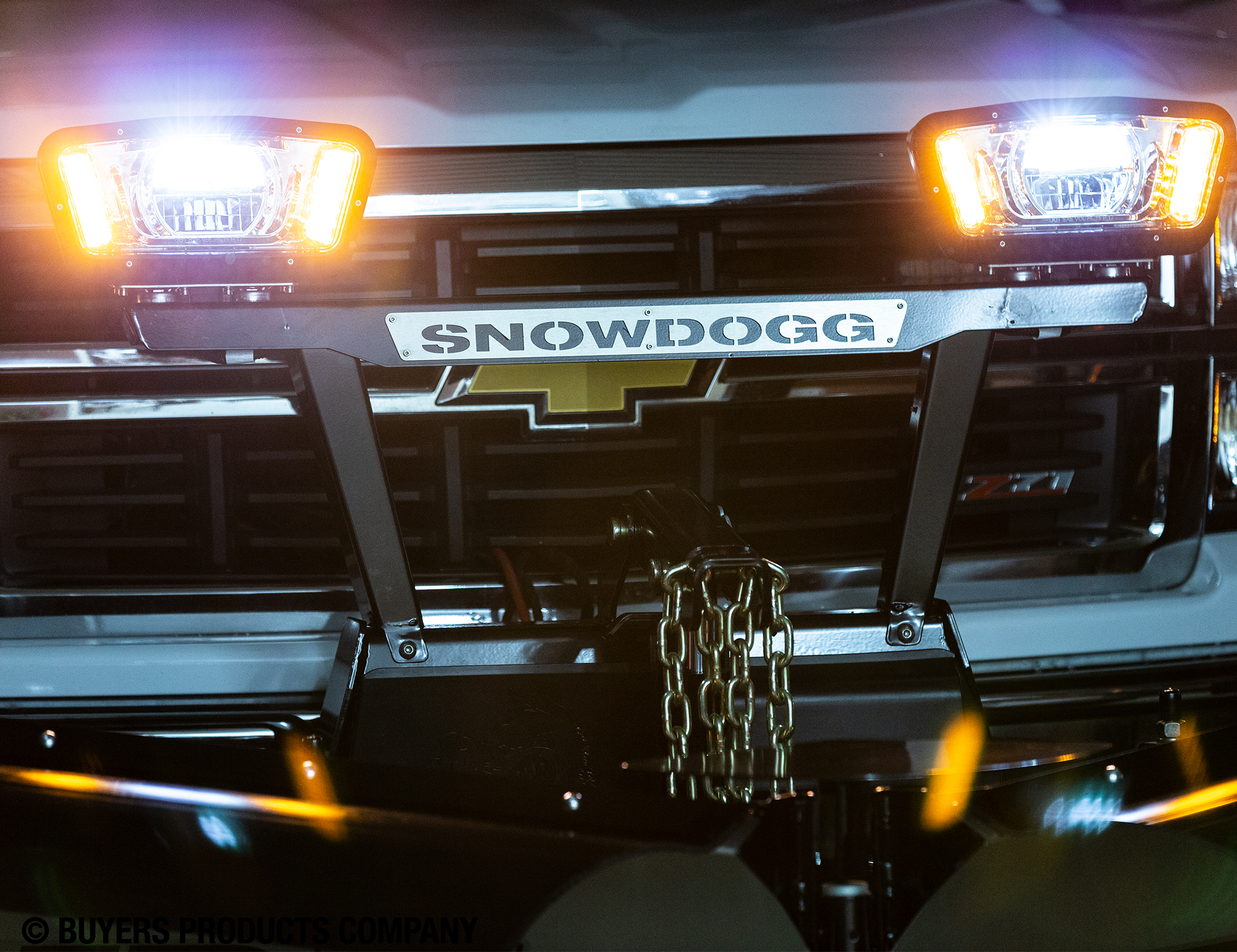

Ultra Bright LED Light Option

SnowDogg Illuminator™ LED Headlights are brighter and longer lasting than traditional halogens. Active Defrosting Technology™ keeps the Illuminators ice-free even in the biting cold - a central heat source defrosts the entire lens evenly, preventing the streaking or banding that's common with other LED plow lights.

SnowDogg HX High Intensity Halogens are also available.

Features:

  • Popular for: Ford® F-250
  • Chevy® Silverado 2500
  • RAM® 2500

Technical Details

Mfg #
VXF85IIR
SKU
VXF85IIR
NMFC #
130195SUB2
Weight
978 lbs.
Dimensions
52 × 12 × 32 inches
Snow Deflector
Contoured Poly
Electrical
Headlamp Rated Replaceable Micro-ISO Relays
Ribs
6
Lift Cylinder
2 x 6 inch
Moldboard Material
304 Stainless Steel
Plow Type
V Plow
Trip Springs
4
Angle Cylinders
1 1/2 x 1 3/4 x 12 inch
Blade Height
29/37 inch
Blade Width
102 inch
Trip Style
Trip Edge
Stand
Drop Leg
Plow Shoes
Optional
Moldboard Thickness
12 Gauge
Cutting Edge
1/2 x 6 inch
Mounting System
RapidLink™ Attachment System
Lights
Dual Halogen Bulbs or Illuminator™ Heated LEDs
Harnesses
Separate Light and Hydraulic 4GA Power Wires
Angled Blade Width
88.0 inch
