Product Information
Description:

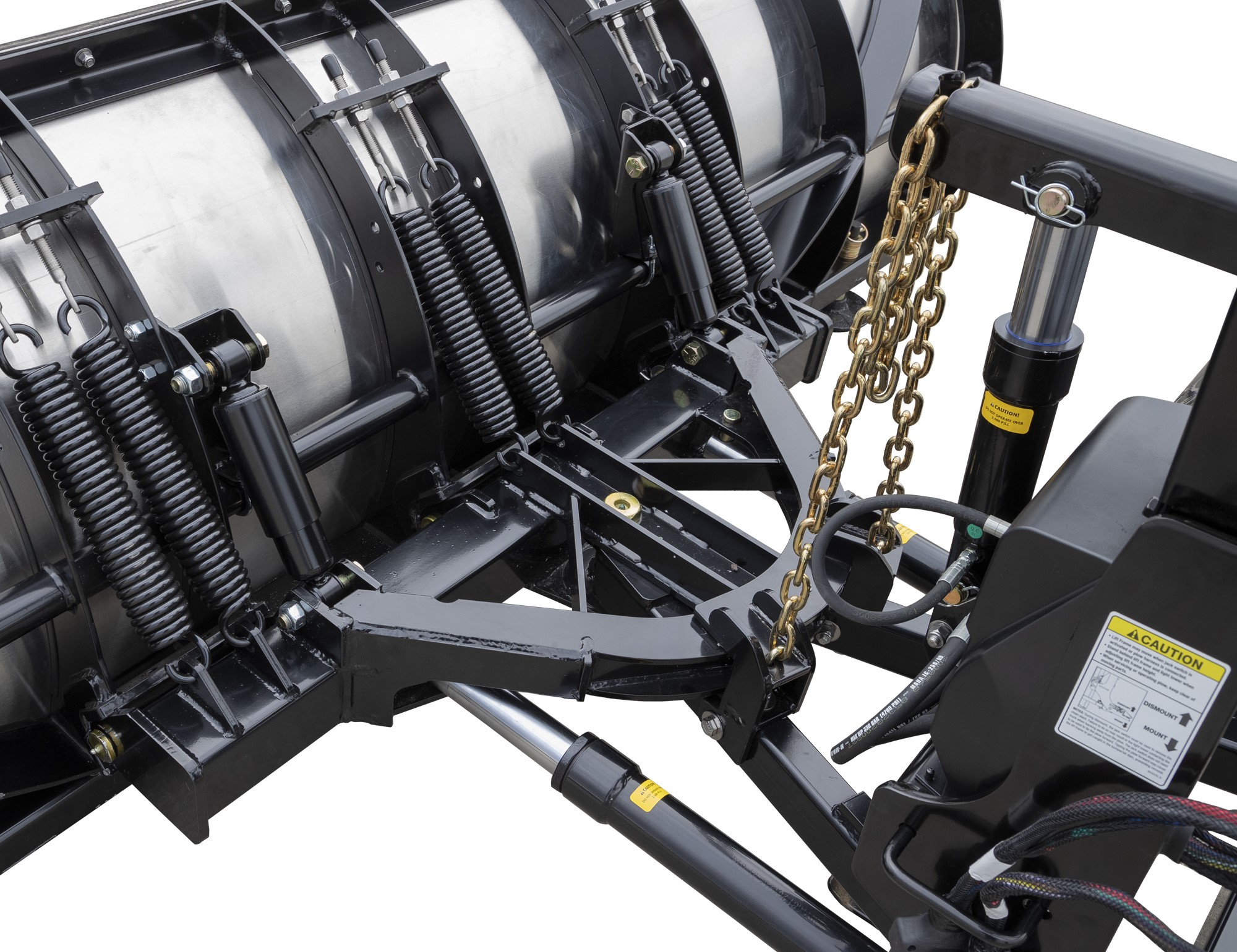

SnowDogg® CMII Series Liftframe
The SnowDogg® CMII Series Liftframe pairs with other series components to create a full snow plow. Works with the SnowDogg CM90II, SnowDogg CM100II, and SnowDogg CM110II snow plows.
Pairs with other series components to create a full snow plow.
Technical Details
- Mfg #
- 16017006
- SKU
- 16017006
- UPC
- 724920180436
- NMFC #
- 130195SUB2
- Weight
- 598 lbs.
- Dimensions
- 55 × 50 × 35 inches
- A-frame Construction
- Tubular
- Sector Construction
- Fabricated 3/8 in. Plate
- Hydaulic Power Unit Construction
- Integrated Block Design w/SAE Cartridge Valves
- Hydraulic Power Unit HP
- 2.0 horsepower
- Hydraulic Hose
- SAE 100R17-6
- Angle Cylinder Size
- 2 x 12 inch
- Controller Type
- NEW Ergonomic Handheld Controller
- Connector Features
- Overmolded w/Beryllium Copper Spring Cage Pins
- Control Harness Features
- 4 Gauge
- Light Electrical Connection
- Headlamp Rated Replaceable Micro-ISO Relays
- Plow Light Mount
- Dual Stud
- Plow Light
- LED or Dual Bulb Halogen
- Angle Cylinder Action
- Single Acting
- Lift Cylinder Size
- 2 x 6 inch
- System Working Pressure
- 1850 poundpersqin
- Angling Relief Pressure
- 3000 poundpersqin
- Chain
- Grade 70 5/16 Transport Chain
- Lift Mechanism
- Chain Lift
- Attachment System
- RapidLink™
