Product Information
Description:

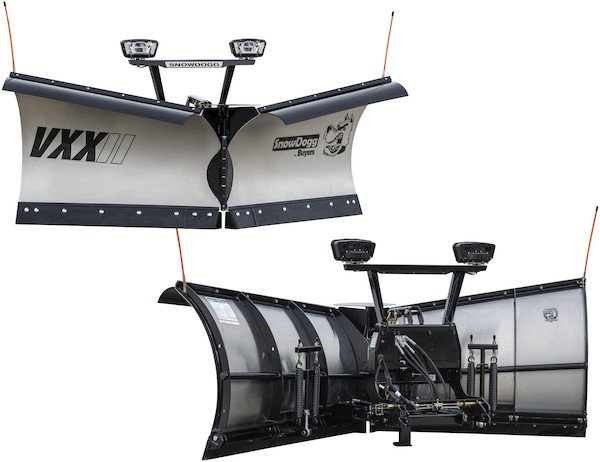

SnowDogg® VXX105II Moldboard
SnowDogg® VXX105II Moldboard pairs with other series components to create a full snow plow.
Moldboard ONLY - Pairs with other series components to create a full snow plow.
Technical Details
- Mfg #
- 16021744
- SKU
- 16021744
- UPC
- 724920180351
- NMFC #
- 130195SUB2
- Weight
- 914 lbs.
- Dimensions
- 66 × 54 × 36 inches
- Moldboard Thickness
- .105 inch
- Finish
- Powder Coat with Primer
- Trip Springs
- 4
- Trip Adjustment
- Eye Bolt
- Moldboard Material
- 304 Stainless Steel
- Blade Width
- 126 inch
- Plowing Width at Angle
- 110.0
- Blade Attack Angle
- 70 degreeangle
- Blade Height
- 35/45 inch
- Support Ribs
- 8
- Additional Structual Support
- 2 in. Cross Tube
- Cutting Edge Thickness
- 0.500 inch
- Trip Type
- Trip Edge
- Markers
- Orange Wire Reinforced
- Shoes
- Optional
- Deflector
- Formed HDPE
- Moldboard Pivot Angle
- +/-30 degreeangle
- Cutting Edge Height
- 6 inch
- Cutting Edge Material
- 1080 Steel
