Product Information
Description:

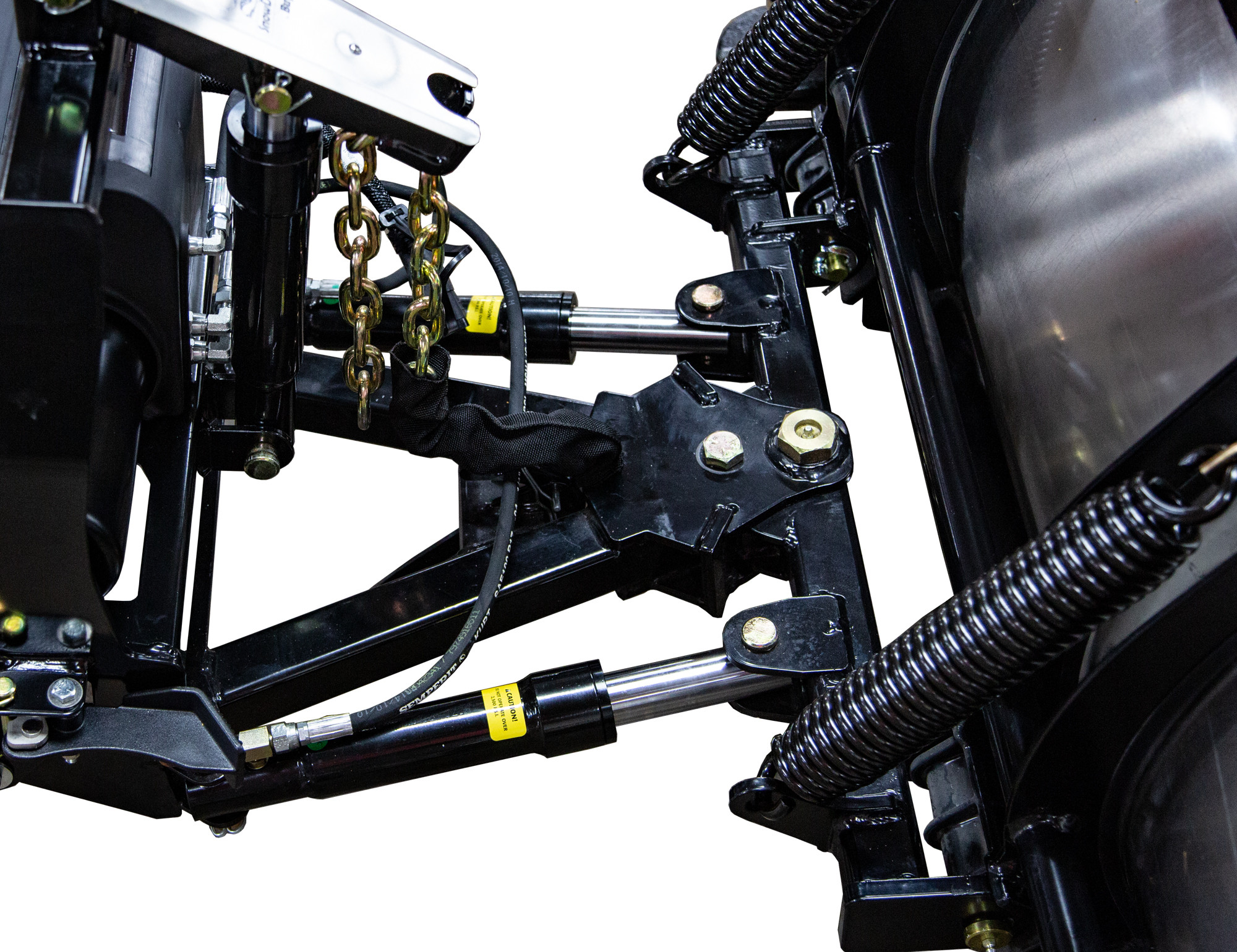

SnowDogg™ VUT Series Liftframe
Liftframe ONLY - Pairs with other series components to create a full snow plow.
Technical Details
- Mfg #
- 16018000
- SKU
- 16018000
- UPC
- 724920148078
- NMFC #
- 130195SUB2
- Weight
- 230 lbs.
- Dimensions
- 35 × 30 × 26 inches
- Hydraulic Hose
- SAE 100R17-6
- Angle Cylinder Size
- 1½ x 1¾ x 8 inch
- Angle Cylinder Action
- Double Acting
- System Working Pressure
- 1850 poundpersqin
- Lift Cylinder Size
- 2 x 6 inch
- Angling Relief Pressure
- 3000 poundpersqin
- Chain
- Grade 70 5/16 Transport Chain
- Lift Mechanism
- Chain Lift
- Attachment System
- Dual Foot Pedal Quick Mount
- Hydraulic Power Unit HP
- 2.0 horsepower
- Hydaulic Power Unit Construction
- Integrated Block Design w/SAE Cartridge Valves
- Hinge
- 1.000 inch
- Pivot Bolt
- 1.000 inch
- A-frame Construction
- Tubular
- Plow Light Mount
- Dual Stud
- Control Harness Features
- 4 Gauge
- Controller Type
- Handheld Controller
- Connector Features
- Overmolded w/Beryllium Copper Spring Cage Pins
