Product Information
Description:

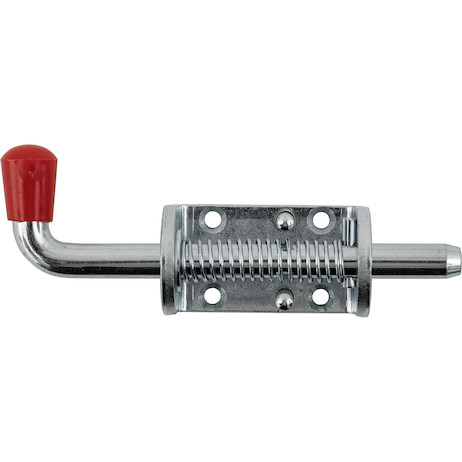

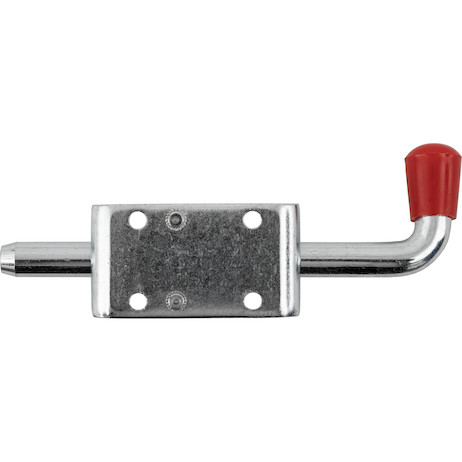

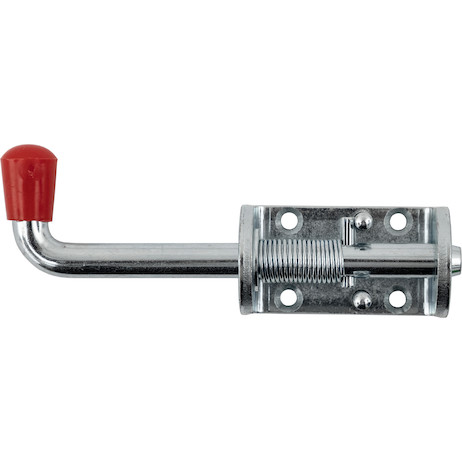

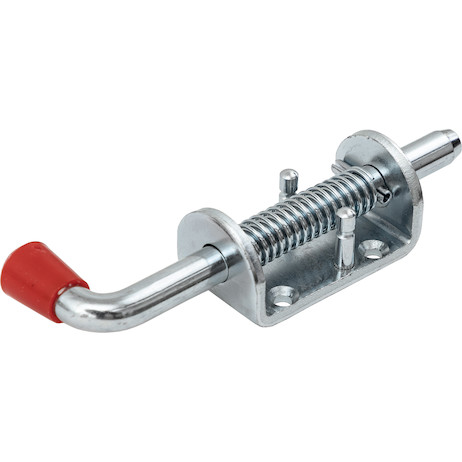

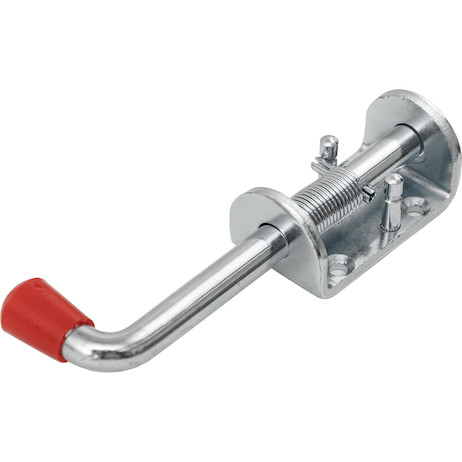

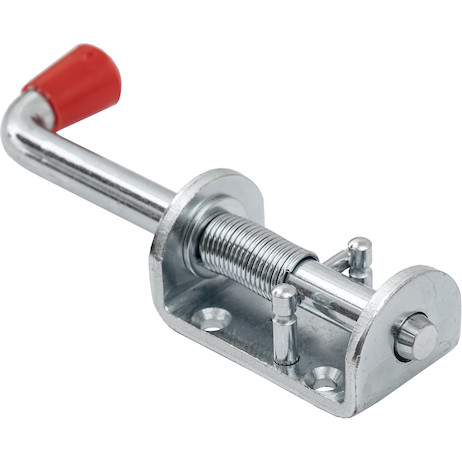

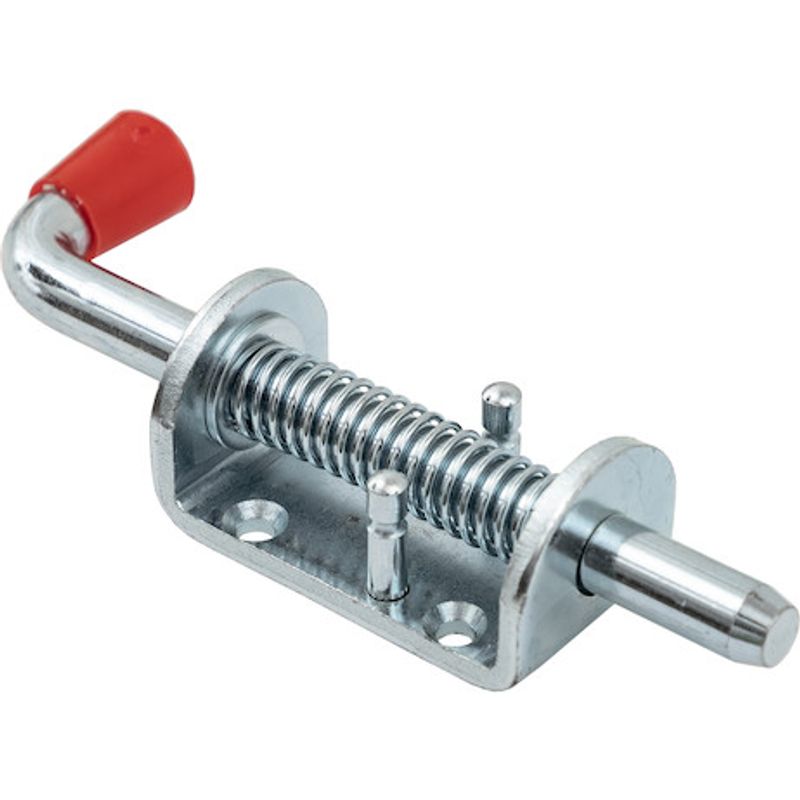

Spring Latch
Buyers Products Spring Latch is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely.
The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure.
The latch is available in your choice of stainless steel or zinc-plated steel and in various sizes. It can be ordered with or without the keeper. All mounting hardware is sold separately.
Is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely.
Features:
- Ideal where doors, compartments, or panels need to engage and disengage quickly and securely.
- Corrosion-resistant zinc-plated steel or stainless steel construction.
- Spring-loaded bolt can be locked in the open position.
- Turning lever allows the bolt to close under spring pressure.
- Stake Body Assembly
- Trailer Gates
- Gates
Technical Details
- Mfg #
- B2575
- SKU
- B2575
- UPC
- 724920080392
- NMFC #
- 105200
- Weight
- 1 lbs.
- Dimensions
- 7 × 4 × 1 inches
- Bolt Material
- Carbon Steel
- Latch Style
- Spring Latch
- Housing Material
- Carbon Steel
- Bolt Finish
- Zinc Plated
- Handle Material
- Carbon Steel
- Housing Finish
- Zinc Plated
- Handle Finish
- Zinc Plated

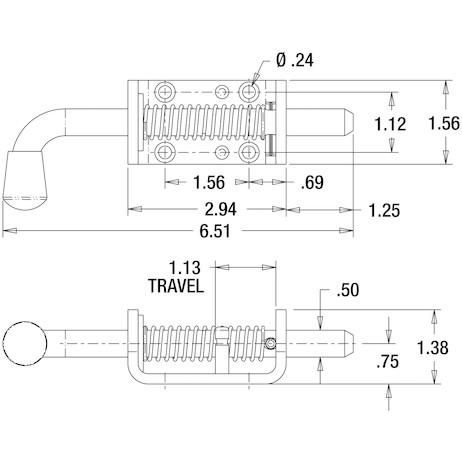

- Bolt Length (in.)
- 6.51 inch
- Bolt Dia. (in.)
- 0.50 inch
- Housing Length (in.)
- 2.94 inch
- Housing Width (in.)
- 1.56 inch
- Housing Height (in.)
- 1.38 inch
- Mount Type
- Bolt-On
- Mounting Hole Diameter
- 0.24 inch
- Mounting Holes Center to Center
- 1.56 inch
- Keeper (y/n)
- No
- Bolt Travel
- 1.13
