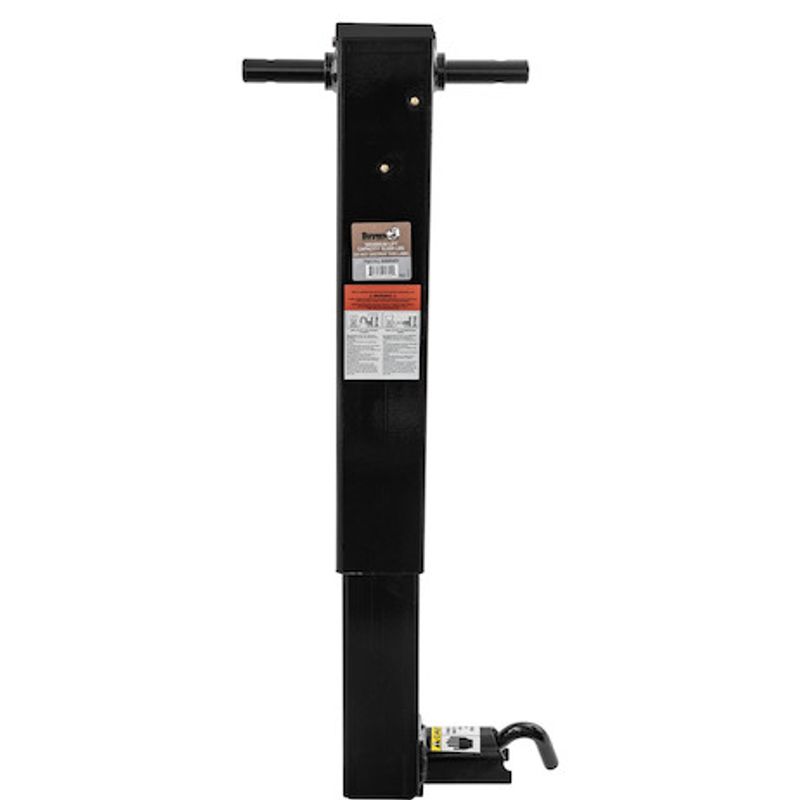

5331411 - 12 Inch Heavy-Duty Side Pin 4 Inch Square Jack - No Handle

Description:

Side-Pin Square Jacks

The Side-Pin Heavy Duty Square Jack from Buyers Products features a spring-return drop leg that allows easier expanding and retracting. The spring return is activated by pulling a sturdy side-mounted pin to drop the leg.

Ideal for RVs, construction trailers and triaxial trailers, each jack has a 10,000 lb (dynamic) and 12,000 lb (static) capacity.

The 4 in. square tube features a weather-resistant black powder-coated finish, and includes a footpad.

Note: If using dual jacks, use the front pin style of this product.

39.72" fully extended; 27.28" fully retracted.

Features a spring-return drop leg that will lift up to 10,000 lb.

Features:

• Easy retraction and expansion with the spring return mechanism.
• Strong, durable 4-in. square construction will handle up to 10,000 lb (dynamic) and 12,000 lb (static).
• Corrosion-resistant black powder-coated finish.
• Can be ordered with or without handle.
• Foot pad measures 8 1/4" x 8 1/2" (the side of the foot with the flared ends is 8 1/2").
• RVs
• Construction Trailers
• Triaxial Trailers
• Utility Trailers
