Product Information
Description:

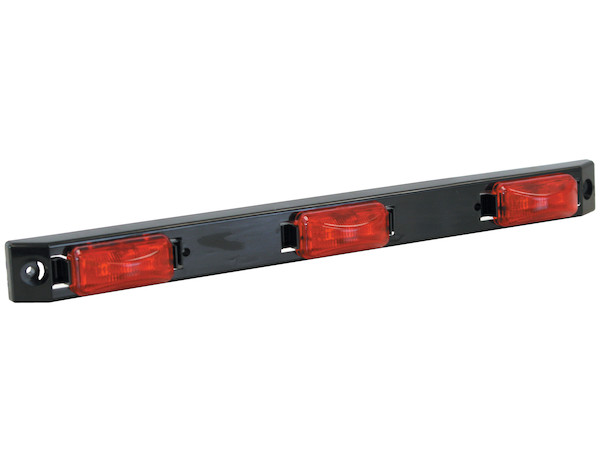

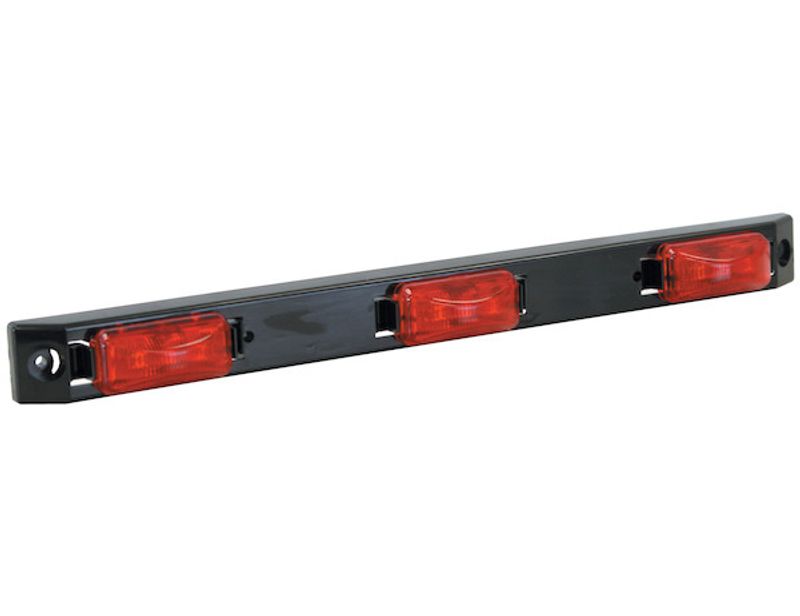

17 Inch Polycarbonate ID Bar Light with 9 LEDs
Buyers Products 17 Inch Polycarbonate ID Bar Light with 9 LEDs is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
With three 3-LED marker lights, the surface-mounted ID bars are ready to install with a blunt cut lead and ring terminal.
Lights are backed with a limited lifetime warranty.
Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
Features:
- Backed with a limited lifetime warranty.
- Ready to install with included mounting bracket.
- Trailers
- Trucks
- Salt Spreaders
Technical Details
- Mfg #
- 5621719
- SKU
- 5621719
- UPC
- 724920096850
- NMFC #
- 17870SUB5
- Weight
- 1 lbs.

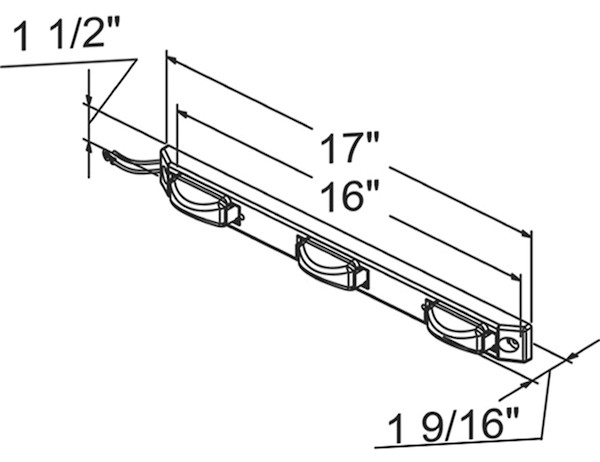

- Dimensions
- 17 × 4 × 2 inches
- Height
- 1.500 inch
- Depth
- - inch
- Housing Material
- Plastic
- Overall Width
- 17.000 inch
- Base / Mount Type
- Surface
- Number of Contacts
- Number of Wires
- (2) Wires, (1) w/Stripped Power Wire & (1) w/#10 Ring On Ground
- Type of Plug
- Blunt Cut
- Plug Included
- No
- Voltage
- 12 vdc
- Wattage
- 1.44 watts
- Operating Temperature
- fahrenheit
- Amp draw at 12 Volts
- 0.120 amps
- Lens Material
- Polycarbonate
- Lens Shape
- Rectangular
- Built-In Switch
- No
- Hard Wired or Plug
- Hard Wired
- Color
- Red
