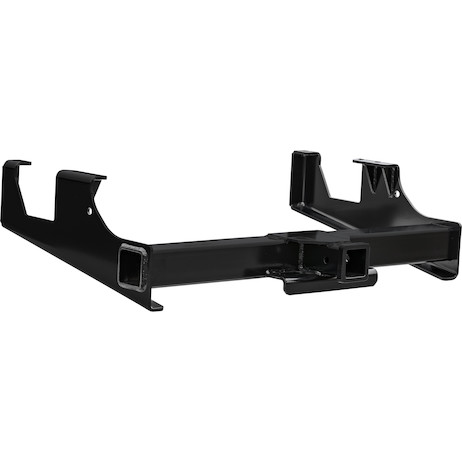

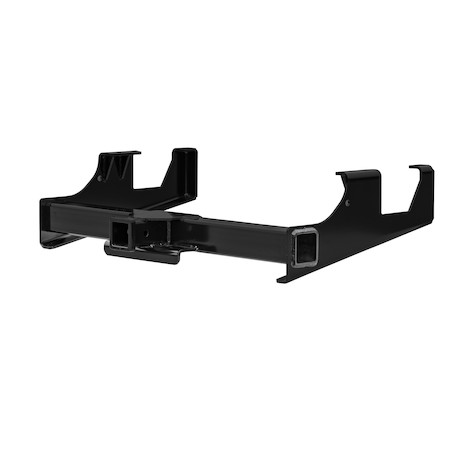

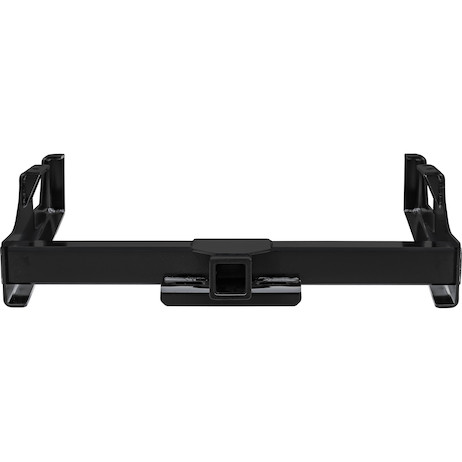

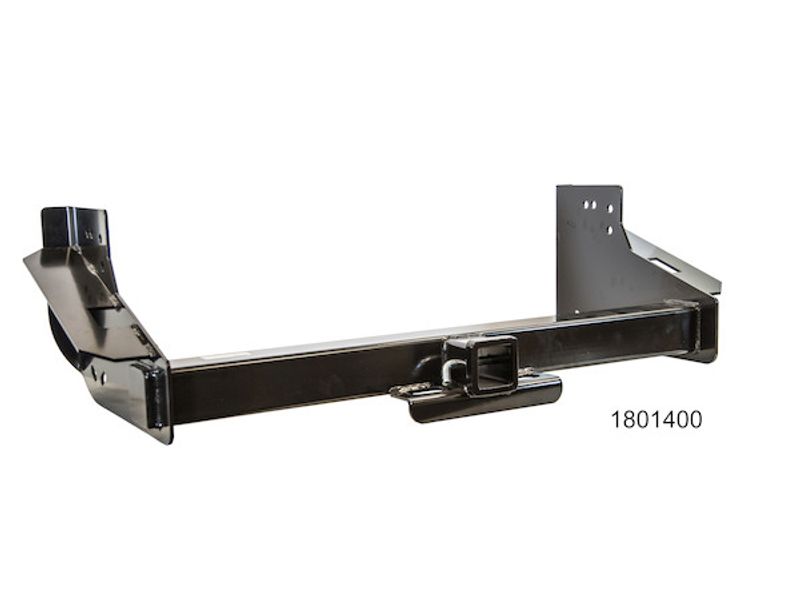

2-1/2 Inch Hitch Receiver For GM 2500/3500 Pickup Frame (bed delete) with Service Body (excluding short bed)
$502.13
Product Information
Description:
Class 5 Hitch Receivers with 2-1/2 Inch Receiver Tubes
Heavy duty Class 5 Hitch Receivers with 2-1/2 Inch Receiver Tubes from Buyers Products will handle loads from 16,000 lb. to 22,000 lb., depending on your vehicle make and model. They all feature a corrosion-resistant black powder-coated finish for long life.
Hitch receivers are available for cutaway service bodies and cab & chassis. Mounting hardware is included for the cab & chassis model. The receivers accept 2-1/2 in. hitches and accessories and come complete with a 5/8 in. hitch pin with cotter.
Rated from 16,000 to 22,000 lb, depending on your vehicle make and model. Accepts 2-1/2 in. hitches and accessories.
Features:
- Easy bolt-on installation with no welding required.
- Corrosion-resistant black powder-coated finish.
- Handles loads up to 22,000 lb depending on model.
- Includes 5/8 in. hitch pin with cotter.
- Service Trucks
Technical Details
- Mfg #
- 1801505
- SKU
- 1801505
- UPC
- 724920235303
- NMFC #
- 104650
- Weight
- 92 lbs.

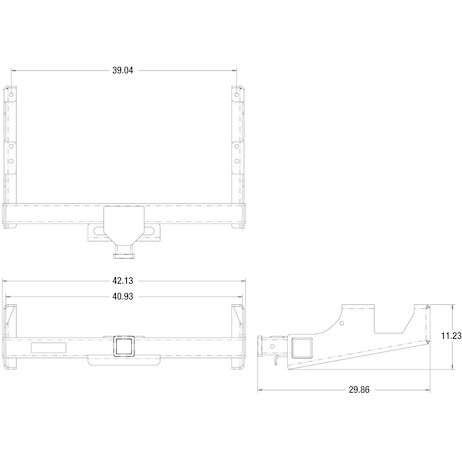

- Dimensions
- 42 × 31 × 9 inches
- Class
- Class IV
- M.G.T.W. (lbs.)
- 20,000 pounds
- Color
- Black
- Finish
- Powder-Coat
- Material
- Carbon Steel
- Receiver Tube Size (in.)
- 2.50 inch
- Application Summary
- GM® 2500/3500 (Bed delete) with Service Body (excluding Short Bed)
- Mount Type
- Bolt-On
- Width (in.)
- 41.56 inch
- M.V.L. (lbs.)
- 2,000 pounds
- Model
- 2500/3500
- Year
- 2020+
- Style
- Service Body, Bed Delete, No Short Bed
- Receiver Tube Length (in.)
- 9.00 inch
- Height (in.)
- 11.25 inch
- Depth (in.)
- 29.86 inch
- Make
- GM®
