Product Information
Description:

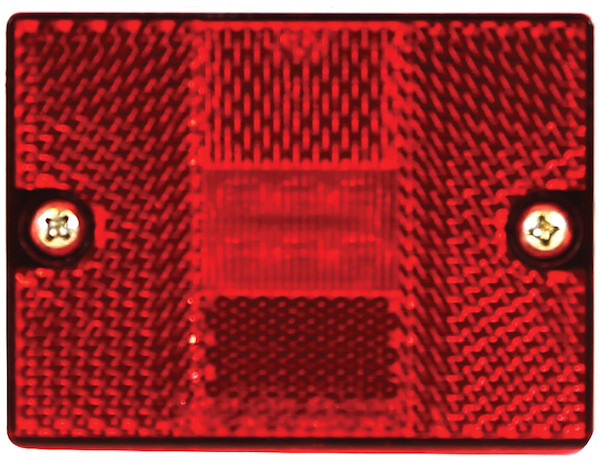

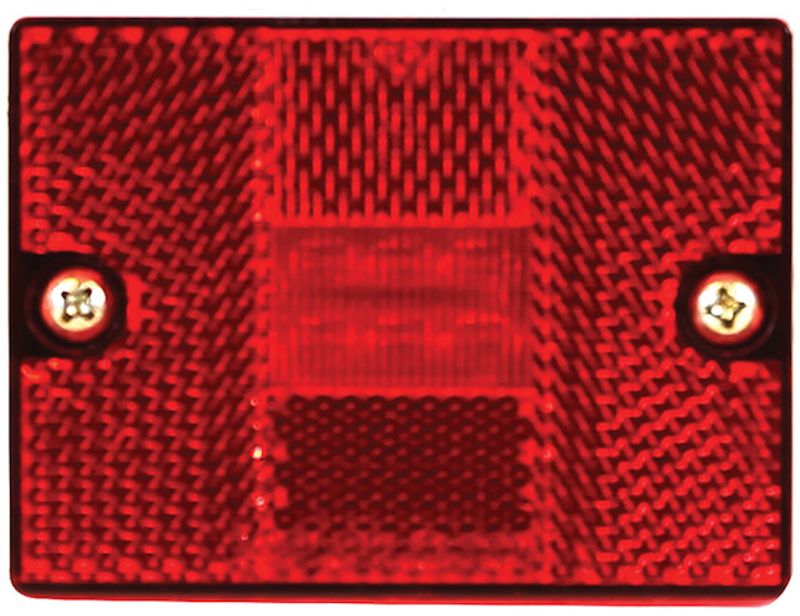

2.875 Inch Rectangular Marker Clearance Light Kit with Reflex and 6 LEDs

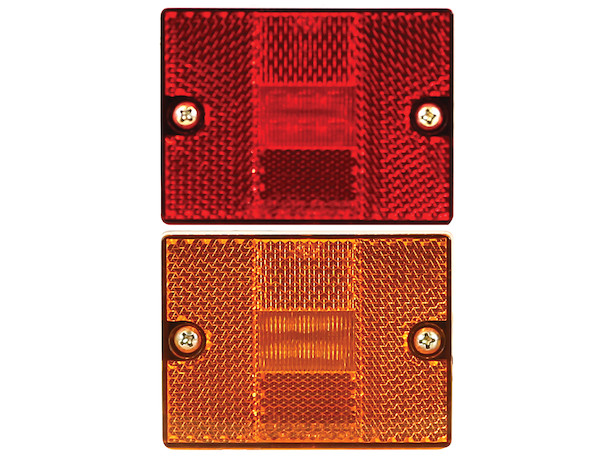

Buyers Products 2.875 Inch Rectangular Marker Clearance Light with Reflex and 6 LEDs is available in your choice of red or amber lens with built-in reflector.
Lights feature an internal Reflex optic, which eliminates the need for a separate reflector. They install using an integrated stud mount and are hard-wired with a blunt cut lead and ring terminal.
Marker lights are sold in bulk (multiples of 10) and backed with a limited lifetime warranty.
Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
Features:
- Sold in bulk (multiples of 10).
- Backed with a limited lifetime warranty.
- Flatbeds
- Utility Trailers
- Trucks
- Trailers
Technical Details
- Mfg #
- 5622716
- SKU
- 5622716
- UPC
- 724920123136
- NMFC #
- 17870SUB8
- Weight
- 1 lbs.
- Dimensions
- 3 × 3 × 2 inches
- Height
- - inch
- Depth
- - inch
- Base / Mount Type
- Surface
- Overall Width
- 2.875 inch
- Housing Material
- Plastic
- Number of Wires
- (2) Wires, (1) w/Stripped Power Wire & (1) w/#10 Ring On Ground
- Number of Contacts
- Plug Included
- No
- Amp draw at 12 Volts
- 0.033 amps
- Voltage
- 12 vdc
- Wattage
- 0.40 watts
- Operating Temperature
- fahrenheit
- Type of Plug
- Blunt Cut
- Lens Material
- Polycarbonate
- Lens Shape
- Rectangular
- Built-In Switch
- No
- Hard Wired or Plug
- Hard Wired
- Color
- Red
