Product Information
Description:

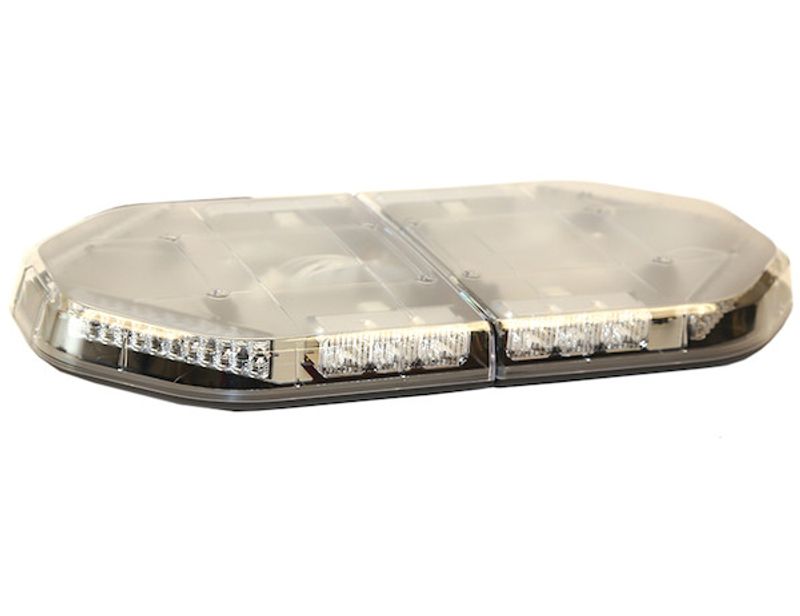

24 Inch LED Modular Light Bars
Buyers Products 24 Inch LED Modular Light Bars are available in four standard configurations. The amber light bar is SAE Class 1 certified and has a CA13 rating. All models feature 24 different flash patterns and a dimming mode to suit a variety of applications.
Middle modules are reflective with three LEDs each. Corner modules have six LEDs each.
The light bar's extruded aluminum frame is excellent at dissipating heat, and the sturdy polycarbonate lens is extremely resistant to impact. Two recessed mounting channels and a 10 ft pre-wired power/function cable make the light bar easy to install and operate.
Mounting feet and controller are sold separately. Please contact Customer Service for more information.
Modular light bars are backed with a 5 year warranty.
Solid colors rated SAE J845 Class I with 24 flash patterns.
Features:
- Stock configurations are available to fit any need.
- 24 flash patterns.
- Amber light bar has a SAE Class 1 and CA13 rating.
- Backed with a 5 year warranty.
- 3024646 Adjustable Plastic Mounting Feet NOT included. Must be purchased separately.
- Work Trucks
- Safety Vehcilces
- Utility Trucks
Technical Details
- Mfg #
- 88930243
- SKU
- 88930243
- UPC
- 724920142335
- NMFC #
- 17870SUB5
- Weight
- 14 lbs.
- Dimensions
- 31 × 18 × 8 inches
- Depth
- - inch
- Overall Width
- 25 inch
- Height
- 2.188 inch
- Base / Mount Type
- Surface
- Number of Wires
- Number of Contacts
- Housing Material
- Multiple
- Plug Included
- No
- Type of Plug
- Stripped Leads
- Amp draw at 12 Volts
- 6 amps
- Amber Modules
- 4
- Take Downs?
- No
- Class Level
- 1
- Clear Modules
- 4
- Dimming Mode (y/n)
- No
- Number of LEDs per Middle Strobe
- 3
- Number of LEDs per Corner Strobe
- 6
- Mounts Included
- No
- Number of Flash Patterns
- 24
- Red Stop/Turn/Tail Modules?
- No
- Traffic Adviser?
- No
- Voltage
- 12 vdc
- Lens Material
- Polycarbonate
- Lead Length
- 10 inch
- Wattage
- 72 watts
- Lens Shape
- Octagonal
- Operating Temperature
- fahrenheit
- Built-In Switch
- No
- Certification
- CA13/SAE J845 Class 1/SAE J595 Class 1
- Connector
- Blunt Cut
- Color
- Amber/Clear
- Hard Wired or Plug
- Hard Wired
