Buyers Products

24 Inch Modular Light Bar (4 Amber Modules, 4 Green)

$511.94

Product Information

Description:

24 Inch LED Modular Light Bars

Buyers Products 24 Inch LED Modular Light Bars are available in four standard configurations. The amber light bar is SAE Class 1 certified and has a CA13 rating. All models feature 24 different flash patterns and a dimming mode to suit a variety of applications.

Middle modules are reflective with three LEDs each. Corner modules have six LEDs each.

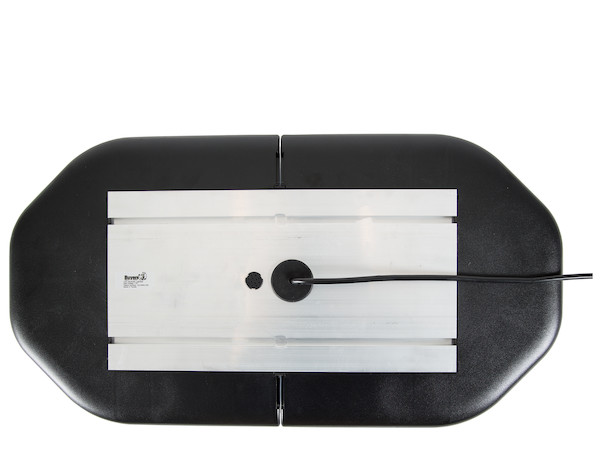

The light bar's extruded aluminum frame is excellent at dissipating heat, and the sturdy polycarbonate lens is extremely resistant to impact. Two recessed mounting channels and a 10 ft pre-wired power/function cable make the light bar easy to install and operate.

Mounting feet and controller are sold separately. Please contact Customer Service for more information.

Modular light bars are backed with a 5 year warranty.

Solid colors rated SAE J845 Class I with 24 flash patterns.

Features:

  • Stock configurations are available to fit any need.
  • 24 flash patterns.
  • Amber light bar has a SAE Class 1 and CA13 rating.
  • Backed with a 5 year warranty.
  • 3024646 Adjustable Plastic Mounting Feet NOT included. Must be purchased separately.
  • Work Trucks
  • Safety Vehcilces
  • Utility Trucks

Technical Details

Mfg #
3034374
SKU
3034374
UPC
724920157261
NMFC #
17870SUB5
Weight
8 lbs.
Dimensions
31 × 18 × 8 inches
Color
Amber/Green
Built-In Switch
No
Hard Wired or Plug
Hard Wired
Connector
Blunt Cut
Certification
CA13/SAE J845 Class 1/SAE J595 Class 1
Lens Shape
Octagonal
Lens Material
Polycarbonate
Lead Length
10 inch
Voltage
12 vdc
Wattage
72 watts
Type of Plug
Stripped Leads
Plug Included
No
Amp draw at 12 Volts
6 amps
Traffic Adviser?
No
Red Stop/Turn/Tail Modules?
No
Take Downs?
No
Number of Flash Patterns
24
Number of LEDs per Middle Strobe
3
Housing Material
Multiple
Base / Mount Type
Surface
Mounts Included
No
Number of LEDs per Corner Strobe
6
Dimming Mode (y/n)
No
Class Level
1
Amber Modules
4
Height
2.188 inch
Overall Width
25 inch
Depth
- inch
