Product Information
Description:

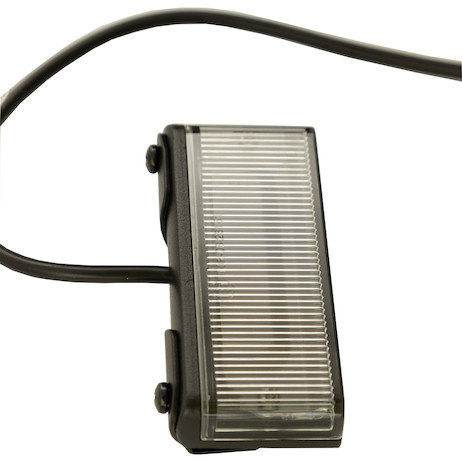

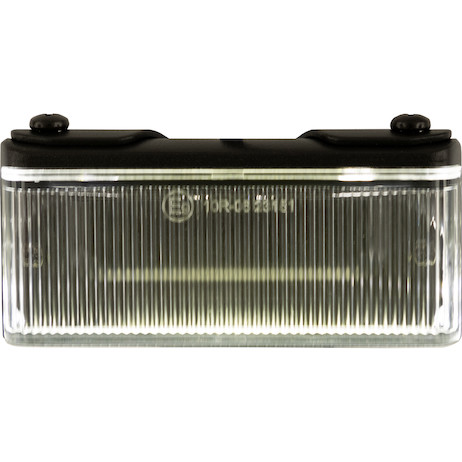

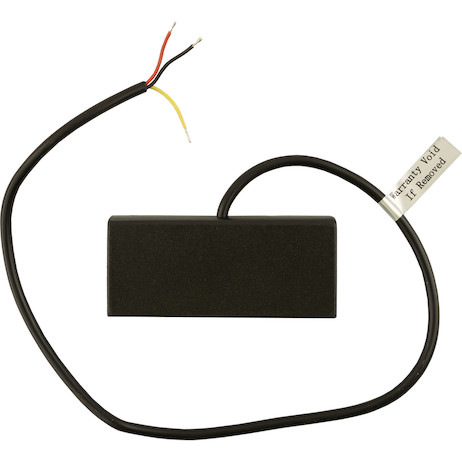

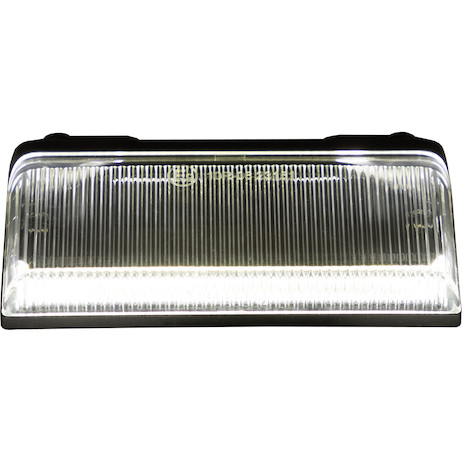

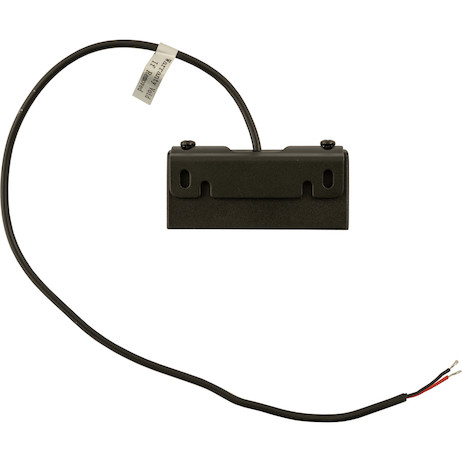

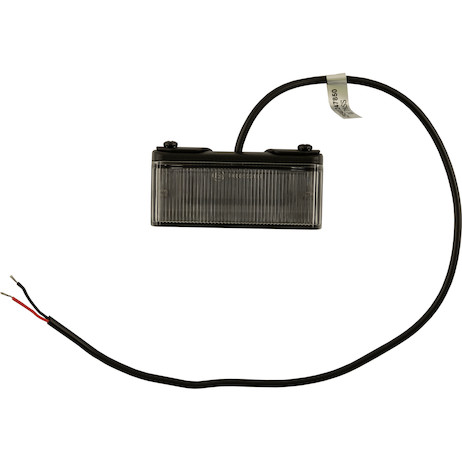

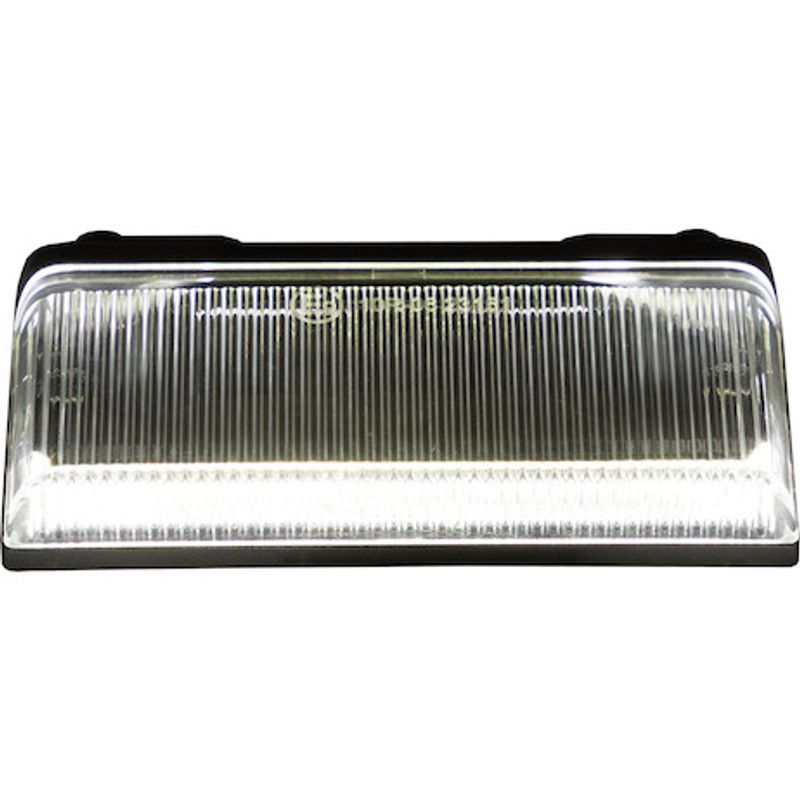

3.5 Inch LED Backup/Flood Lights with Strobe Option
Buyers Products 3.5 Inch LED 3.5 Inch LED Backup/Flood Lights with Strobe Option are rated SAE J595 Class 2 and IP67 & IP69K certified.
The surface mounted lights are available Clear or Clear with Amber Strobe. Mounting bracket and all mounting hardware included. Lights are backed with a 5-year warranty.
1492247: Backup/Flood (23 Clear LEDs) 1492248: With Amber Strobe (12 Amber and 11 Clear LEDs)
Rated SAE J595 Class 2 and IP67 & IP69K certified.
Features:
- Cast aluminum housing for durability.
- SAE J595 Class 2 rating for brightness.
- Rated IP67 for water and dust resistance.
- Backed with a 5-year warranty.
- 1492247: Backup/Flood (23 Clear LEDs)
- 1492248: With Amber Strobe (12 Amber and 11 Clear LEDs)
- Work Trucks
- Construction Vehicles
- Pickup Trucks
- Utility Vehicles
Technical Details
- Mfg #
- 1492247
- SKU
- 1492247
- UPC
- 724920248839
- NMFC #
- 17870SUB9
- Weight
- 1 lbs.
- Dimensions
- 5 × 3 × 2 inches
- Bracket (y/n)
- Yes
- Flash Patterns
- None
- Number of LEDs
- 23
- SAE Classification
- SAE J595 CLASS 2
- Color
- Clear
- Hard Wired or Plug
- Hard Wired
- Certification
- CE, RoHS, IP67, IP69K, R10, R148, R65, SAE J595 CLASS 2
- Lens Shape
- Rectangular
- Operating Temperature
- N/A fahrenheit
- Lens Material
- Plastic
- Wattage
- 1.5W watts
- Overall Length
- 3.56 inch
- Lead Length
- 18 inch
- Voltage
- 12-24 vdc
- Amp draw at 12 Volts
- 0.53-1.55 amps
- IP Rating
- IP67, IP69K
- Mount Type
- Surface
- Height
- 1.57 inch
- Depth
- 0.60 inch
- Housing Material
- Aluminum
- Number of Wires
- 2
- Type of Plug
- Blunt Cut
