Buyers Products

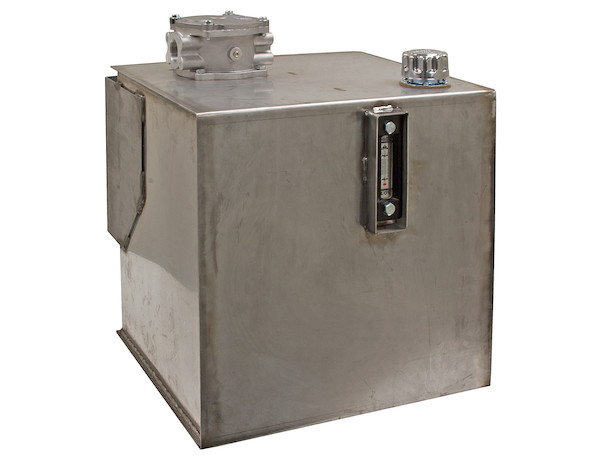

30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir With 10 Micron Filter

$1,028.82

Product Information

Description:

30 Gallon Stainless Steel Reservoir with Micron Filter

The 30 Gallon Stainless Steel Reservoir with Micron Filter from Buyers Products is made of high-quality 304 stainless steel with welded-on stainless steel mounting brackets. Its sleek, polished appearance will stand up to salt and weather for long lasting use. Great for winter road applications, this reservoir comes fully tested.

The reservoir has several features for optimal fluid operation, including:

  • a quarter-turn chrome filler breather with a wire basket strainer
  • a sight fluid level and temperature gauge
  • an interior baffle between suction and discharge to aid in fluid cooling
  • a magnetic drain plug to aid in preventing metallic particle contamination

The reservoir comes pre-drilled for an included tank-mounted HFA5S series return filter. Choose from a 10 micron or 25 micron filter (shipped separately).

Is made of high-quality stainless steel to stand up to salt and the elements.

Features:

  • Sleek, polished stainless steel will stand up to salt and weather.
  • Pre-drilled for an included 10 micron or 25 micron filter (shipped separately).
  • Fluid level and temperature gauge included.
  • Contaminant-catching magnetic drain plug.
  • Interior baffle keeps fluid cool and directed where it should be.
  • Fully tested for optimal operation.
  • Walking Floor Trailers
  • Belt Trailers
  • Lowboy Trailers
  • Sliding Axle Trailers

Technical Details

Mfg #
SMR30SS10
SKU
SMR30SS10
UPC
724920114868
NMFC #
181390
Weight
98 lbs.
Dimensions
29 × 17 × 24 inches
Additional Port Size
3/4 NPT
Hardware and Brackets Included (y/n)
No
Material
Stainless Steel
Color
Natural
Material Gauge
13
Finish
Smooth
Capacity
30 gallons
Usable Capacity
30 gallons
Width
28.35 inch
Depth
17.00 inch
Mount Style
Side
Integral Brackets (y/n)
Yes
Integral Level Gauge (y/n)
Yes
Height
22 inch
Style 1 Port Diameter
1-1/4 inch
Reservoir Shape
Rectangle
Included Valve (y/n)
No
Magnetic Drain Plug (y/n)
Yes
Mount Position
Side Mount
Return Line Filter Included (y/n)
Yes
Oil Level Gauge (y/n)
Yes
Temperature Gauge (y/n)
Yes
Return Line Filter Rating
10 micron
Filter Head Material_1
Aluminum
Additional Port Size
1 1/4 NPT
Suction Port Size
2 NPT
