Product Information
Description:

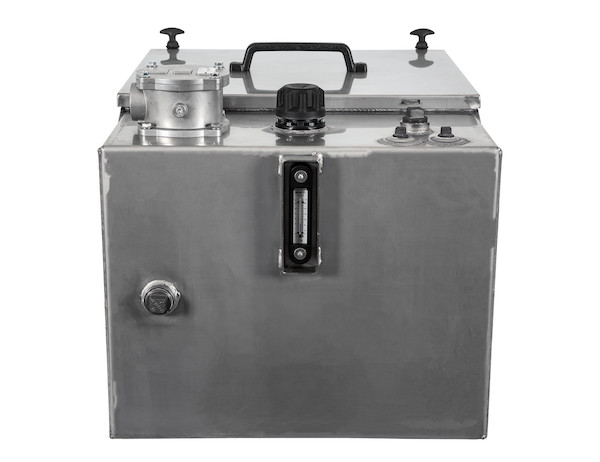

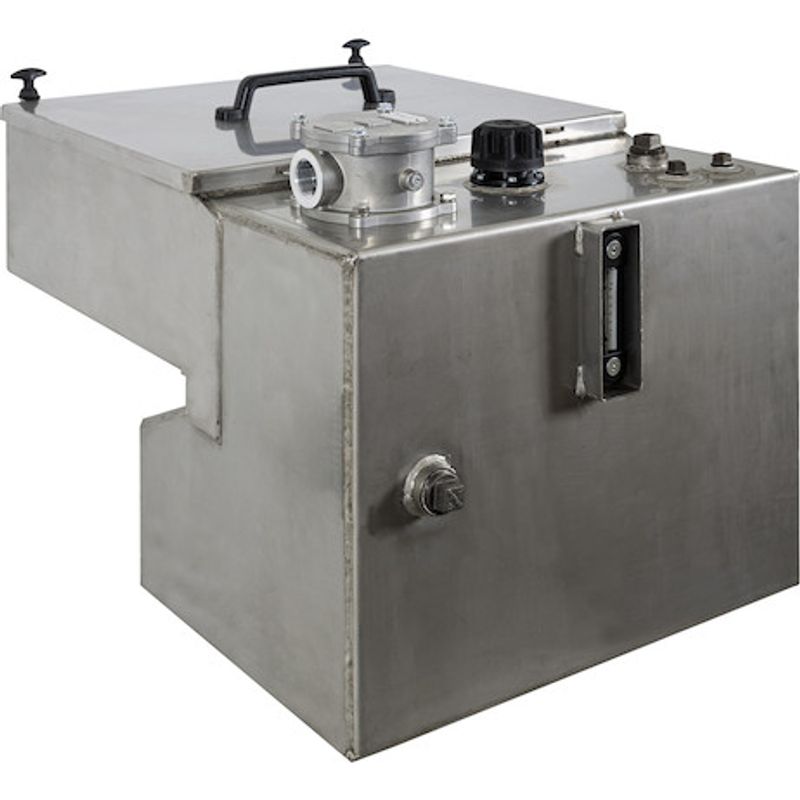

30 Gallon Stainless Steel Reservoir with Valve Enclosure
The 30 Gallon Stainless Steel Reservoir with Valve Enclosure from Buyers Products includes a water-resistant stainless enclosure for the valve. This all-in-one design also makes it easy to remove, access, and install on a new truck.
The reservoir is constructed of high-quality 10 Ga, 304 stainless steel. Its sleek, polished appearance will stand up to salt and weather for long-lasting use.
It also features a tank-mounted 50 GPM return line filter, a nylon rust-resistant filler/breather and a fluid level and temperature sight gauge.
Includes a water-resistant stainless enclosure for the valve.
Features:
- Sleek, polished stainless steel will stand up to salt and weather.
- Features water-resistant stainless enclosure for the valve.
- All-in-one design makes removal, access, and installation simple.
- Includes 50 GPM tank-mounted return filter.
- Includes system-protecting fluid level/temperature gauge and nylon rust-resistant filler/breather.
- Lowboy Trailers
- Dump Trailers
- Municipal
- Sliding Axle Trailers
Technical Details
- Mfg #
- SMR30VESS
- SKU
- SMR30VESS
- UPC
- 724920114707
- NMFC #
- 181390
- Weight
- 264 lbs.

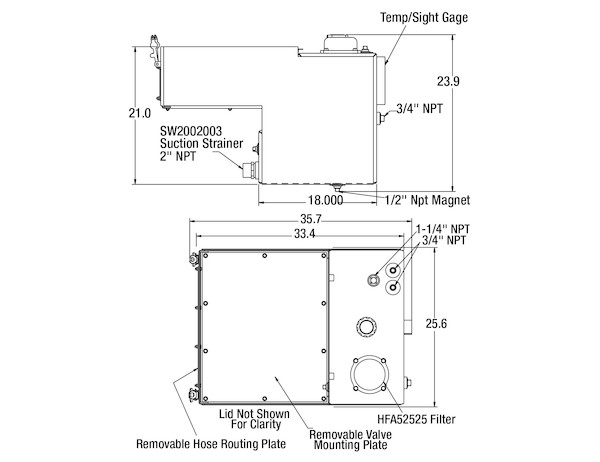

- Dimensions
- 34 × 26 × 24 inches
- Integral Brackets (y/n)
- Yes
- Mount Style
- Side
- Integral Level Gauge (y/n)
- Yes
- Reservoir Shape
- Rectangle
- Included Valve (y/n)
- No
- Magnetic Drain Plug (y/n)
- Yes
- Oil Level Gauge (y/n)
- Yes
- Temperature Gauge (y/n)
- Yes
- Mount Position
- Side Mount
- Return Line Filter Included (y/n)
- Yes
- Additional Port Size
- 1 1/4 NPT
- Filter Head Material_1
- Aluminum
- Suction Port Size
- 2 NPT
- Additional Port Size
- 3/4 NPT
- Additional Port Size
- 1 1/4 NPT
- Height
- 23.9 inch
- Depth
- 35.70 inch
- Capacity
- 30 gallons
- Width
- 25.60 inch
- Usable Capacity
- 30 gallons
- Material Gauge
- 10
- Finish
- Smooth
- Color
- Natural
- Material
- Stainless Steel
- Additional Port Size
- 3/4 NPT
- Hardware and Brackets Included (y/n)
- No
- Additional Port Size
- 1 NPT
