Product Information
Description:

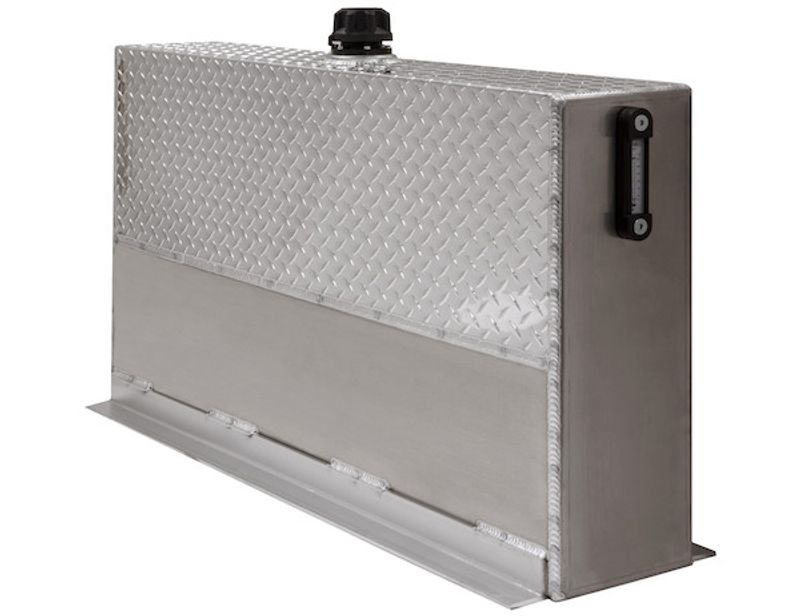

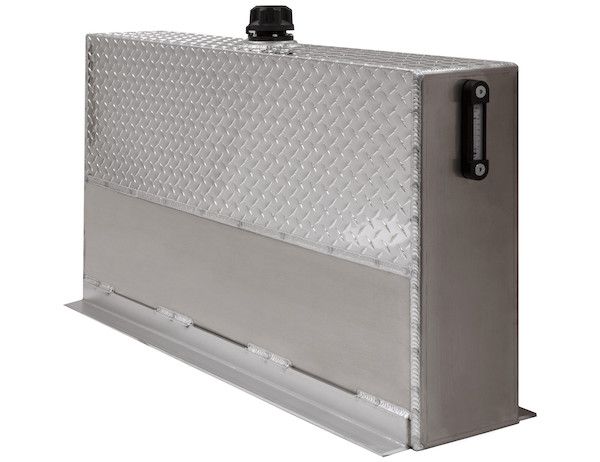

Upright Aluminum Reservoir
The Upright Aluminum Reservoir from Buyers Products features high-quality aluminum construction for lighter weight and excellent heat dissipation. It includes a diamond tread finish on the upper half and is mounted behind the cab, making it an attractive and convenient addition to your truck.
Each reservoir is fully baffled to keep oil cool and moving correctly.
The reservoir features a chrome filler breather cap and a sight/temperature gauge. A mounting hardware kit is included.
Features a lightweight, attractive design and good heat dissipation properties for your hydraulic needs.
Features:
- Upright design fits conveniently behind truck cab.
- Quality aluminum construction for lighter weight and excellent heat dissipation.
- Attractive diamond-tread design on upper half.
- Fully baffled to keep oil cool and moving correctly.
- Includes level/temperature sight gauge.
- Includes mounting hardware.
- Dump Trucks
- Walking Floor/Live Floor Applications
- Truck and Trailer Hydraulic Systems
Technical Details
- Mfg #
- UR35A
- SKU
- UR35A
- UPC
- 724920150262
- NMFC #
- 180860
- Weight
- 69 lbs.

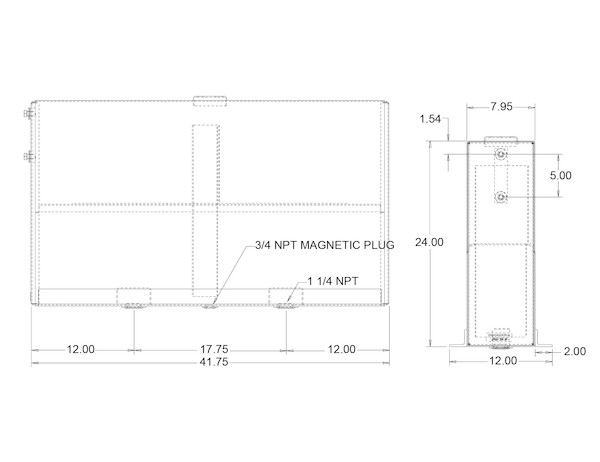

- Dimensions
- 46 × 13 × 26 inches
- Suction Port Size
- 1 1/4 NPT
- Filter Head Material_1
- Aluminum
- Temperature Gauge (y/n)
- -
- Oil Level Gauge (y/n)
- Yes
- Mount Position
- Upright
- Included Valve (y/n)
- No
- Integral Brackets (y/n)
- -
- Additional Port Size
- 3/4 NPT
- Material
- Aluminum
- Material Gauge
- -
- Capacity
- 35 gallons
- Color
- Natural
- Width
- 41.75 inch
- Usable Capacity
- 35 gallons
- Height
- 24.00 inch
- Mount Style
- Upright
- Depth
- 7.95 inch
- Additional Port Size
- 1 1/4 NPT
- Finish
- Diamond Tread
- Integral Level Gauge (y/n)
- No
- Reservoir Shape
- Rectangle
