Description:

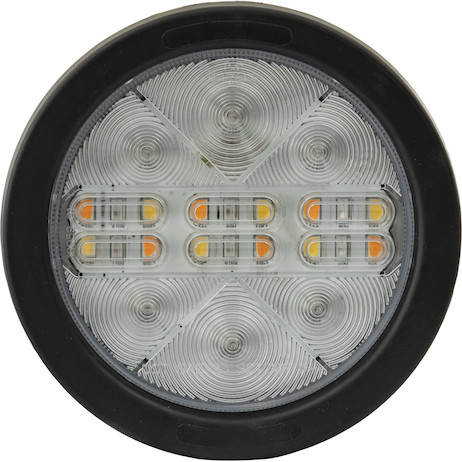

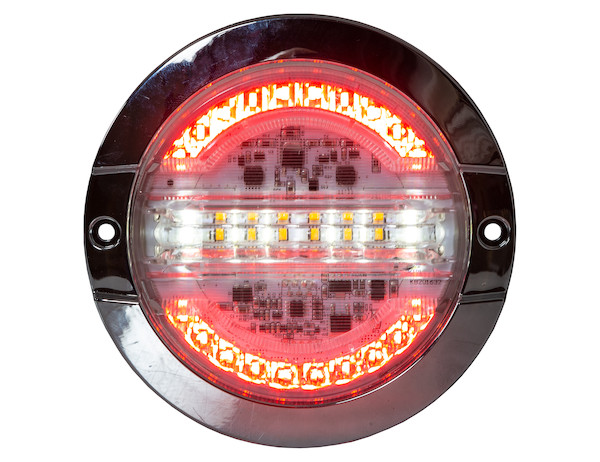

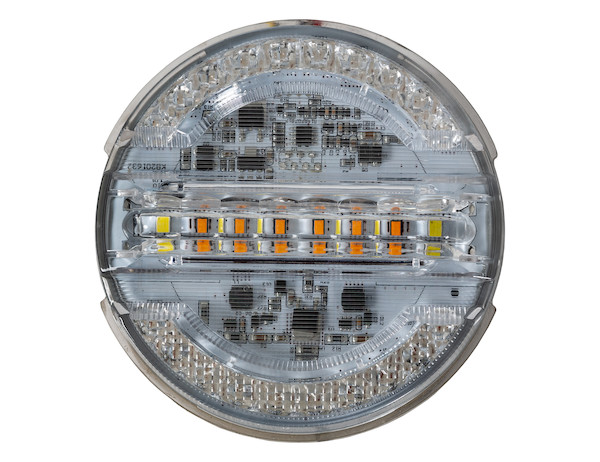

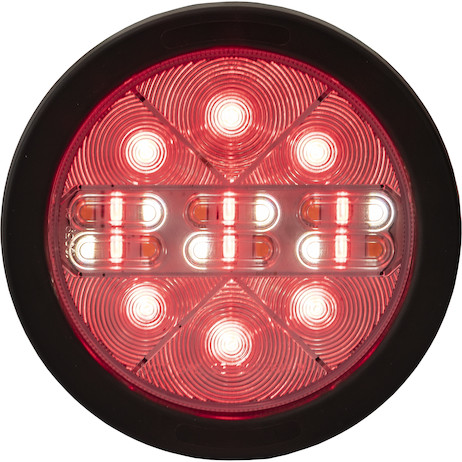

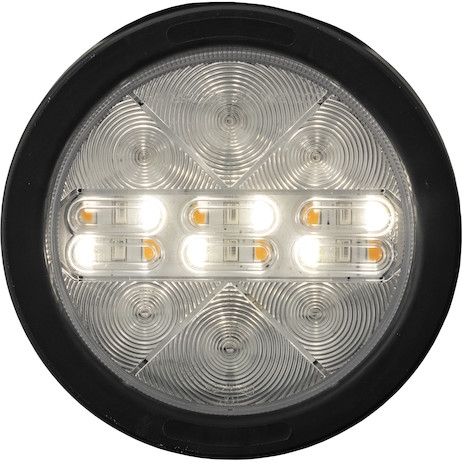

Combination 4 Inch LED Stop/Turn/Tail, Backup, and Amber Strobe Light

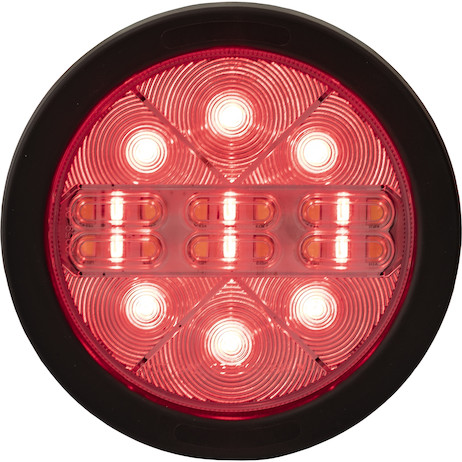

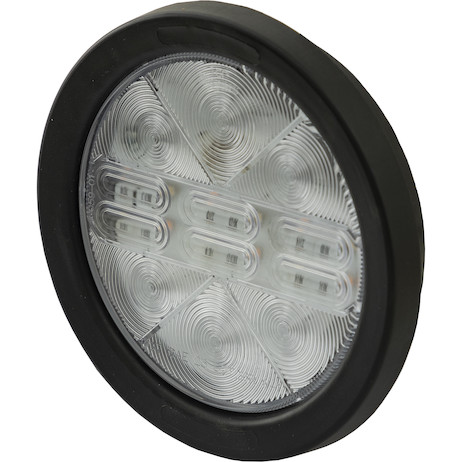

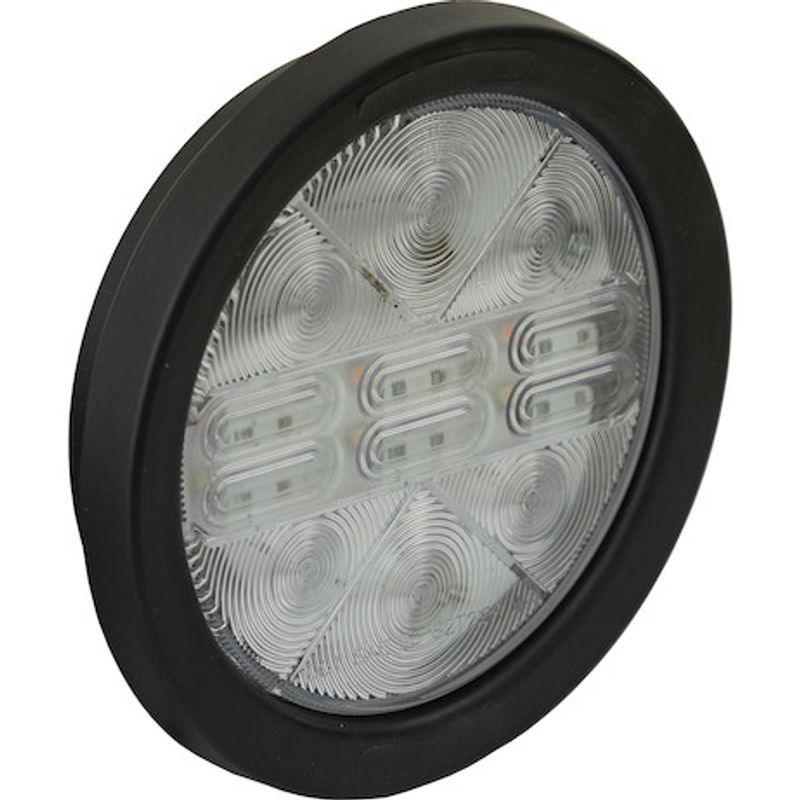

Buyers Products Combination 4 Inch LED Stop/Turn/Tail, Backup, and Amber Strobe Light packs a DOT stop/turn/tail, DOT backup, and warning strobe into a single all-purpose fixture.
This versatile light is CA13 certified and rated IP69K for extreme dust resistance and waterproofing. The Stop/Turn/Tail and Backup functions meet FMVSS/CMVSS 108 regulations. The strobe features 19 flash patterns and is rated SAE Class 1 J595 Class 1. It also has synchronous and alternating capabilities when paired with other strobes.

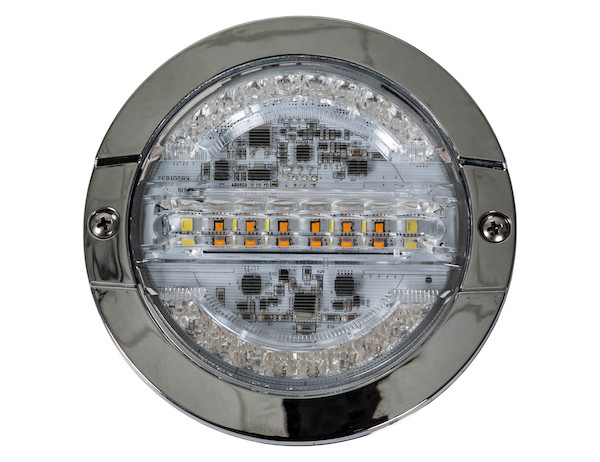

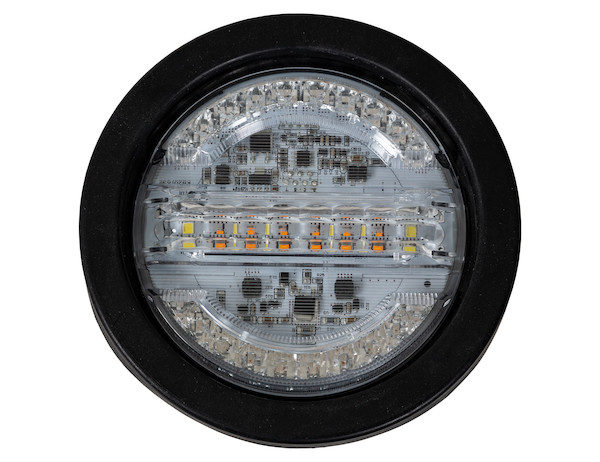

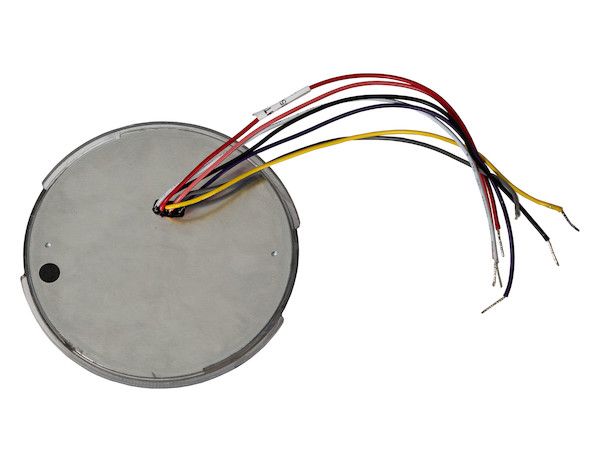

Multiple mounting options are included for your convenience: Grommet Mounting or Screw Mount with Chrome Cover. The light has 7-3/4 in. leads with blunt cut ends.
A multi-purpose light with backup and stop/turn/tail functions that meet DOT FMVSS 108 regulations and an SAE J595 Class 1 strobe all in one fixture.
Features:
- 5624424 features a Patent Pending combination light optic design.
- A DOT backup light, a DOT stop/turn/tail light, and an amber strobe light all in one convenient fixture.
- DOT lights meet FMVSS/CMVSS 108 regulations.

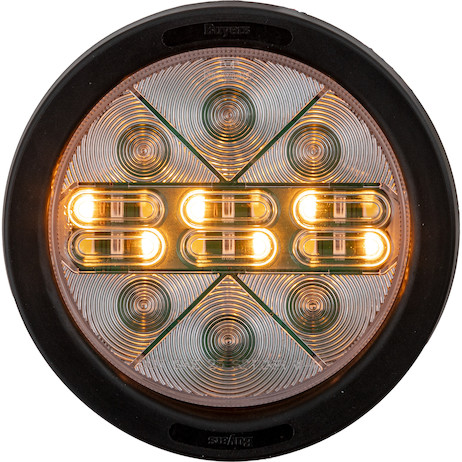

- Strobe function features 19 flash patterns and has synchronous and alternating functions.
- Rated SAEJ595 Class 1.
- CA13 certified.
- Rated IP69K for extreme dust resistance and waterproofing.
- Utility Vehicles
- Service Vehicles
- Construction Vehicles
- Refuse Vehicles
Technical Details
- Mfg #
- 5624424
- SKU
- 5624424
- UPC
- 724920241786
- NMFC #
- 17870SUB5
- Weight
- 1 lbs.
- Dimensions
- 5 × 5 × 2 inches
- Number of LEDs
- 24
- Color
- Amber/Red
- Hard Wired or Plug
- Hard Wired
- Lens Shape
- Round
- Lens Material
- Polycarbonate
- Wattage
- 16 watts
- Lead Length
- 7.75 inch
- Voltage
- 10-33 vdc
- Amp draw at 12 Volts
- 1.1 amps
- Type of Plug
- Blunt Cut
- Number of Wires
- 7
- Housing Material
- Aluminum
- Overall Width
- 0.55 inch
- Depth
- 4.13 inch
- Height
- 4.29 inch
- Mount Type
- Grommet or Surface Mount
- IP Rating
- IP69K
- SAE Classification
- Class 1
- California Title 13
- True
- Flash Patterns
- 19
