Product Information
Description:

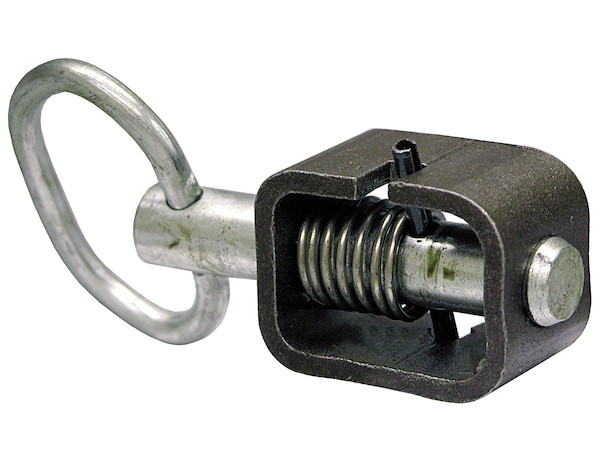

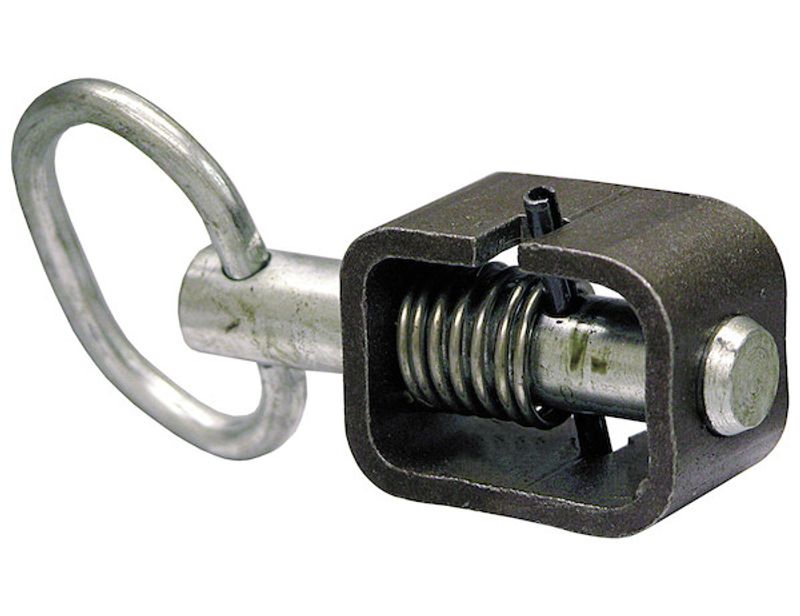

Weld-On Spring Latch
Buyers Products Weld-On Spring Latch is designed for 90° engage application. The spring-loaded mechanism can be locked in the open position; turn to put the spring in the closed position.
The latch comes with either a heat-treated or stainless steel tube. Both feature a stainless steel pin and spring.
Latch can be ordered unassembled for a custom installation. Extended plunger model is also available.
Has a spring-loaded bolt that can be locked in the open position.
Features:
- Spring-loaded bolt can be locked in the open position as needed.
- Choose between a 5/8 in. stainless steel or heat-treated steel pin.
- Can be ordered unassembled for custom installation.
- Stainless steel spring and spring pin provides the ultimate in corrosion resistance.
- SHPE Spreader
- Trailer Equipment
- Truck Equipment
Technical Details
- Mfg #
- B2598H
- SKU
- B2598H
- UPC
- 724920088503
- NMFC #
- 94100
- Weight
- 1 lbs.
- Dimensions
- 4 × 3 × 3 inches
- Housing Length (in.)
- 2.00 inch
- Housing Width (in.)
- 1.50 inch
- Bolt Dia. (in.)
- 0.62 inch
- Bolt Length (in.)
- .84 inch
- Housing Height (in.)
- 1.25 inch
- Pin Length
- 0.84 inch
- Handle Finish
- Zinc Plated
- Handle Material
- Carbon Steel
- Handle Length
- 1.75 inch
- Mount Type
- Weld-On
- Housing Finish
- Plain
- Housing Material
- Carbon Steel
- Bolt Finish
- Plain
- Bolt Material
- Stainless Steel
- Latch Style
- Spring Latch
- Keeper (y/n)
- No
- Bolt Travel
- 19.00/32.00
