Product Information
Description:

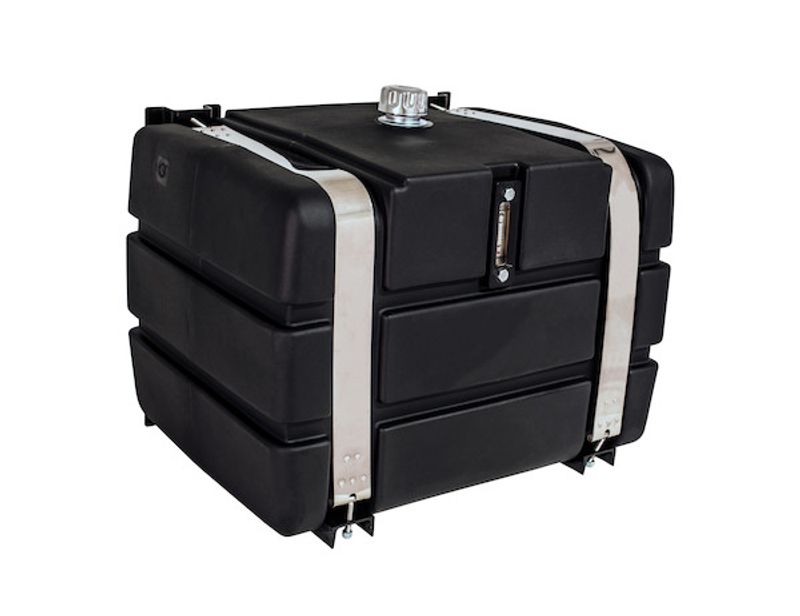

50 Gallon Side Mount Polymer Reservoir
The heavy duty 50 Gallon Side Mount Polymer Reservoir from Buyers Products is lightweight, rustproof, and virtually maintenance-free. It's ideal for applications where weight is a factor, and great for short run dump applications.
The reservoir is fully baffled to control fluid movement and to keep things cool. It features a sight level and temperature gauge and a raised anti-slosh fill neck with a quarter turn, 40 micron chromed filler cap.
Is lightweight, rustproof, and virtually maintenance-free.
Features:
- Heavy duty polymer construction (.375 in. minimum thickness).
- Ideal for short run dump applications.
- Keep fluid clean with the quarter-turn 40 micron filler cap.
- Includes level/temperature sight gauge.
- Fully baffled to control fluid movement and keep things cool.
- Truck and Trailer Hydraulic Systems
- Short Run Dump Applications
- Service Trucks
Technical Details
- Mfg #
- SMR50P
- SKU
- SMR50P
- UPC
- 724920069472
- NMFC #
- 156600SUB6
- Weight
- 76 lbs.

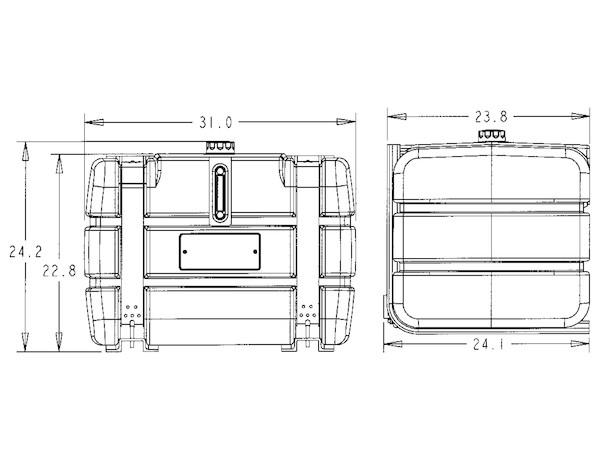

- Dimensions
- 30 × 25 × 26 inches
- Additional Port Size
- 2 NPT
- Suction Port Size
- 2 NPT
- Filter Head Material_1
- Aluminum
- Return Line Filter Included (y/n)
- No
- Temperature Gauge (y/n)
- Yes
- Oil Level Gauge (y/n)
- Yes
- Included Valve (y/n)
- No
- Mount Position
- Side Mount
- Reservoir Shape
- Rectangle
- Style 1 Port Diameter
- 2 inch
- Integral Level Gauge (y/n)
- Yes
- Mount Style
- Side
- Height
- 24.2 inch
- Integral Brackets (y/n)
- Yes
- Depth
- 23.80 inch
- Width
- 31.00 inch
- Usable Capacity
- 50 gallons
- Material Gauge
- 13
- Capacity
- 50 gallons
- Finish
- Bead Blasted
- Color
- Black
- Material
- Polyethylene
- Hardware and Brackets Included (y/n)
- Yes
