Product Information
Description:

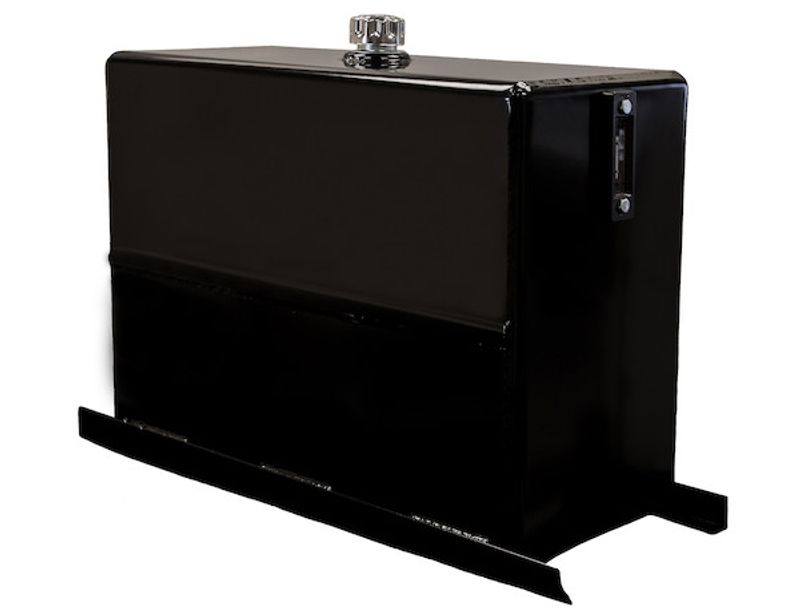

Upright Steel Reservoir
The Upright Steel Reservoir from Buyers Products is constructed of tough 12 Ga steel and fully baffled to keep hydraulic fluid cool. It's ideal for heavy duty dump operations and designed to fit conveniently behind the truck cab.
Choose from a 50 gal or 70 gal capacity, depending on the application. Dump trucks with large cylinder applications benefit from the 70 gal size.
The reservoir features 2 in. and 1-1/4 in. NPT field serviceable ports, a quarter-turn filler breather unit, and a sight/temperature gauge.
A hardware mounting kit is included.
Is constructed from 12 Ga steel and is ideal for dump applications.
Features:
- Upright design fits conveniently behind truck cab.
- Tough 12 Ga steel construction is made to withstand heavy duty jobs.
- Allows greater heat dissipation to keep fluid cool.
- Fully baffled to direct fluid internally.
- Includes level/temperature sight gauge.
- Includes mounting hardware.
- Dump Trucks
- Truck and Trailer Hydraulic Systems
- Walking Floors
Technical Details
- Mfg #
- UR50S
- SKU
- UR50S
- UPC
- 724920039864
- NMFC #
- 180860
- Weight
- 150 lbs.

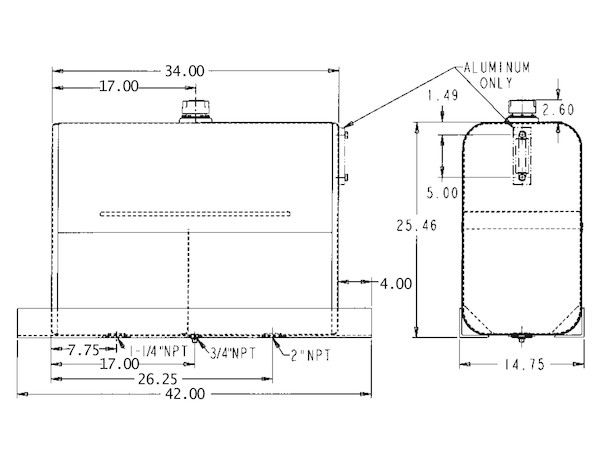

- Dimensions
- 41 × 15 × 27 inches
- Additional Port Size
- 3/4 NPT
- Material
- Carbon Steel
- Finish
- Powder-Coat
- Capacity
- 50 gallons
- Material Gauge
- 12
- Hardware and Brackets Included (y/n)
- Yes
- Color
- Black
- Usable Capacity
- 50 gallons
- Width
- 14.750 inch
- Depth
- 34.00 inch
- Mount Style
- Upright
- Height
- 25.5 inch
- Integral Brackets (y/n)
- -
- Integral Level Gauge (y/n)
- Yes
- Style 1 Port Diameter
- 2 inch
- Style 2 Port Diameter
- 1-1/4 inch
- Reservoir Shape
- Rectangle
- Mount Position
- Upright
- Included Valve (y/n)
- No
- Oil Level Gauge (y/n)
- Yes
- Temperature Gauge (y/n)
- Yes
- Filter Head Material_1
- Aluminum
- Additional Port Size
- 1 1/4 NPT
- Suction Port Size
- 2 NPT
