Buyers Products

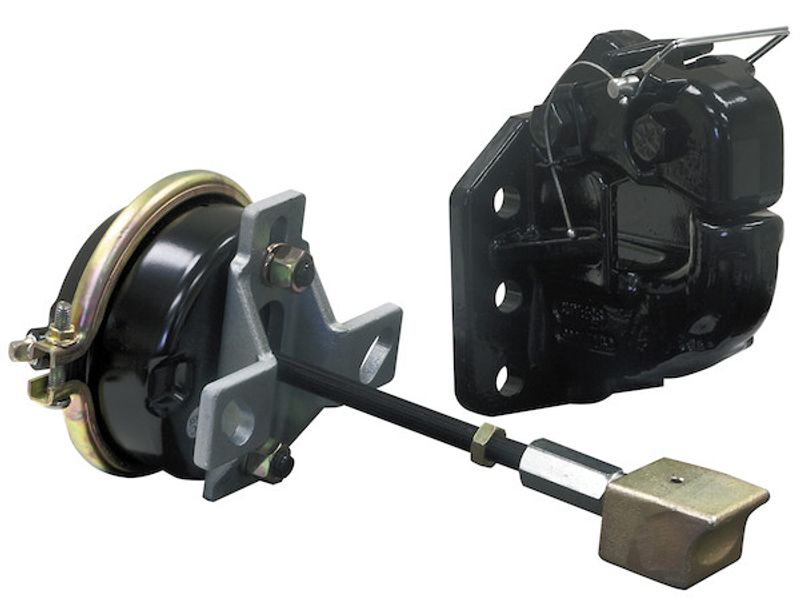

50 Ton Air Compensated Pintle Hook (with Chamber and Plunger)

$362.77

Product Information

Description:

50 Ton Air Compensated Pintle Hook, 6 Bolt

The 50 Ton Air Compensated Pintle Hook from Buyers Products cushions movement between the pintle hook and tow ring. This saves wear and tear on the parts, as well as improves stability, especially in sudden motion or braking situations.

The 6 hole mount, bolt-on pintle hook works in tandem with the vehicle's air system to hold the drawbar eye closely to reduce wear, absorb shock, and prevent uncoupling during operation. The hook is ideal for heavy-duty applications such as semi trailers, both off- and over-the-road. This product can also be used without the air chamber and plunger as a standard pintle hook. For off-road use, the load should be reduced by 25% and a swivel type trailer drawbar should be used.

Reduces wear and absorbs shock in heavy duty towing situations.

Features:

  • Reduces wear and tear on towing parts by reducing slack and movement.
  • Makes for a more comfortable ride through shock absorption between the vehicle and trailer.
  • Extremely strong austempered ductile iron construction.
  • Durable corrosion-resistant powder-coated finish.
  • Great for on- or off-road use.
  • Spring-loaded pintle hook lock arm provides a secure hold on 2 -3/8 in. to 3 in. I.D lunette eyes.
  • Tows up to 100,000 lb.
  • Requires (2) mounting hardware kits.
  • Heavy Duty Towing
  • Off-Road Towing
  • Semi Trailers
  • Pup Trailer Towing

Technical Details

Mfg #
PH50AC
SKU
PH50AC
UPC
724920125321
NMFC #
184850
Weight
45 lbs.
Dimensions
24 × 10 × 10 inches
Vertical Hole Spacing (in.)
2.125 Bottom / 2.375 Top inch
Ball Diameter (in.)
- inch
Pintle Hook Type
Air Compensated
Drawbar Eye Inner Dia. (in.)
2.38-3.00 inch
M.V.L. (lbs)
20,000 pounds
Material
Cast Steel
Color
Black
Finish
Powder-Coat
Includes
Pintle Hook, Plunger, Brake Chamber & Bracket
M.G.T.W. (lbs)
100,000 pounds
Horizontal Hole Spacing (in.)
5.00 inch
Mounting Hole Diameter (in.)
0.781 inch
