Product Information
Description:
50 Ton Heavy Duty Swivel Type Pintle Hook
The 50 Ton Heavy Duty Swivel Type Pintle Hook from Buyers Products features swivel action to reduce stress on towing mechanisms and allow for off-road and uneven terrain towing. The swivel action allows for travel over curbs and rough or broken terrain.
The pintle hook meets military specs and is ideal for heavy duty construction and utility equipment, military equipment, and highway construction towing purposes, with towing loads up to 100,000 lb.
For off-road use, the load should be reduced by 25%.
Reduces stress on towing components, making it ideal for off-road towing.
Features:
- Allows towing heavy equipment over uneven terrain.
- Strong forged steel construction.

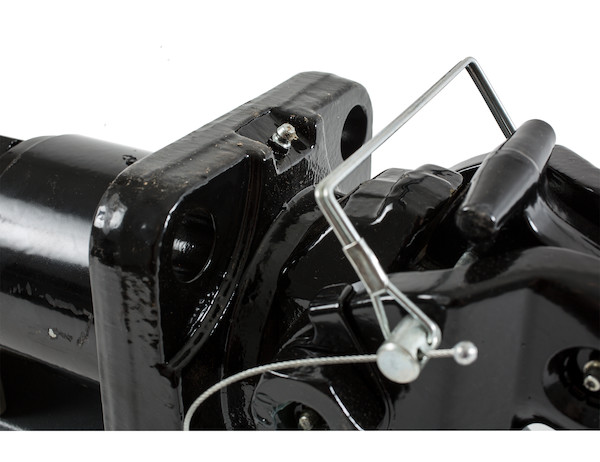

- Easy access to grease fitting.
- Meets military towing specs.
- Spring-loaded pintle hook lock arm provides a secure hold on 3 in. I.D lunette eyes and drawbars.
- Heavy DutyTowing Over Uneven Terrain
- Construction and Utility Equipment Towing
- Military Equipment Towing
- Road Construction
Technical Details
- Mfg #
- BP880
- SKU
- BP880
- UPC
- 724920106528
- NMFC #
- 184850
- Weight
- 62 lbs.

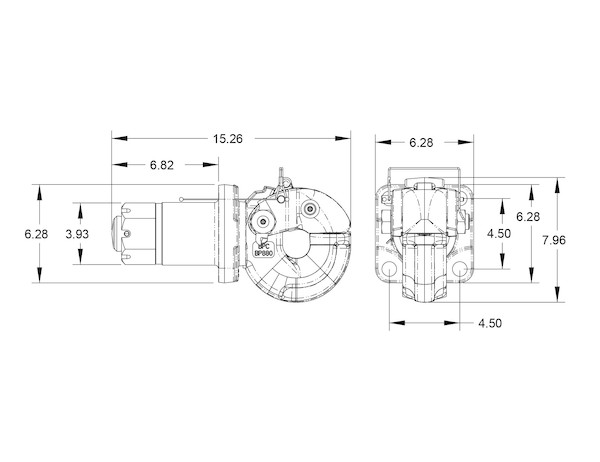

- Dimensions
- 15 × 7 × 9 inches
- M.G.T.W. (lbs)
- 100,000 pounds
- M.V.L. (lbs)
- 20,000 pounds
- Mounting Hole Diameter (in.)
- 0.938 inch
- Horizontal Hole Spacing (in.)
- 4.50 inch
- Vertical Hole Spacing (in.)
- 4.50 inch
- Compares To
- Holland PH-775SL11 & PH-775-01552 and Wallace B50 (2051108)
- Ball Diameter (in.)
- - inch
- Pintle Hook Type
- Swivel
- Color
- Black
- Drawbar Eye Inner Dia. (in.)
- 3.0 inch
- Material
- Forged Steel
- Finish
- Powder-Coat
