Product Information
Description:
LED Light Bar Traffic Arrow
Buyers Products LED Light Bar Traffic Arrow offers a range of arrow and flashing patterns to direct or manage traffic effectively. 8 directional and warning flash patterns, controlled by the in-cab, color-coded controller. The controller also allows for a visible preview of the pattern selection before the light bar proceeds with displaying the selection.

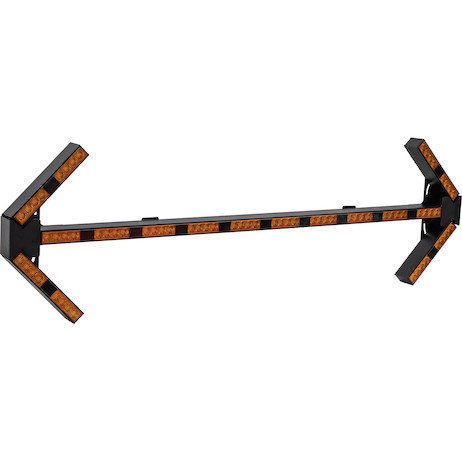

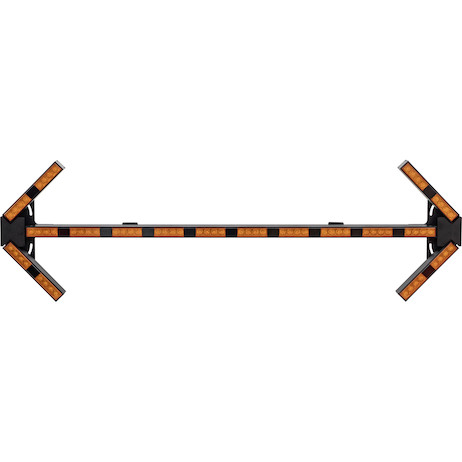

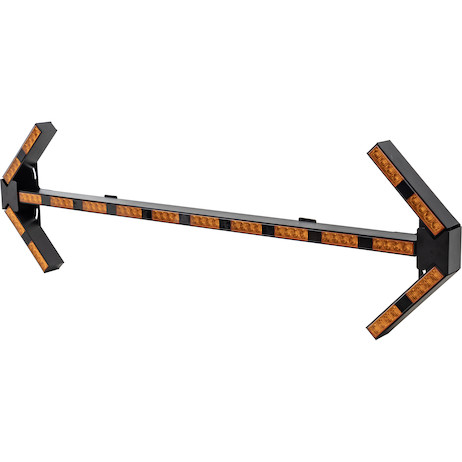

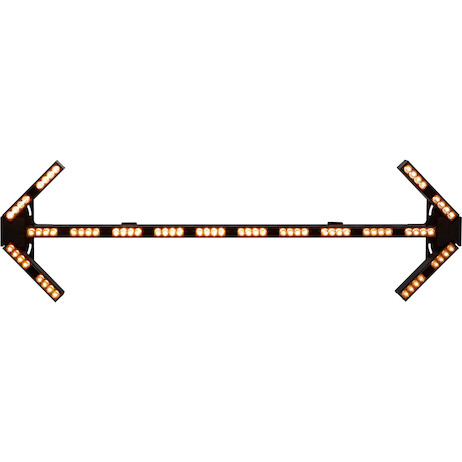

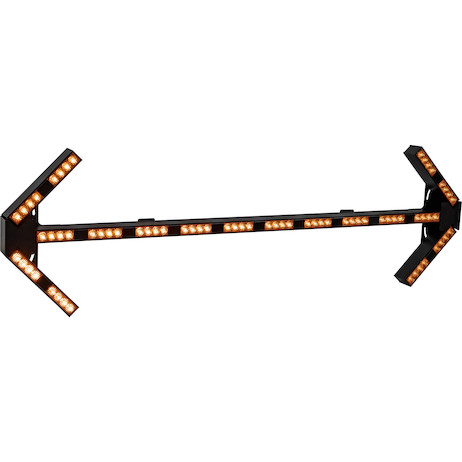

The light itself features extruded aluminum construction with adjustable arrow points. Featuring 72 LEDs (18 modules with 4 LEDs each). Perfect for use on work trucks or utility trucks to increase visibility in areas such as construction zones.
Direct or manage traffic effectively with 8 directional and warning flash patterns.
Features:

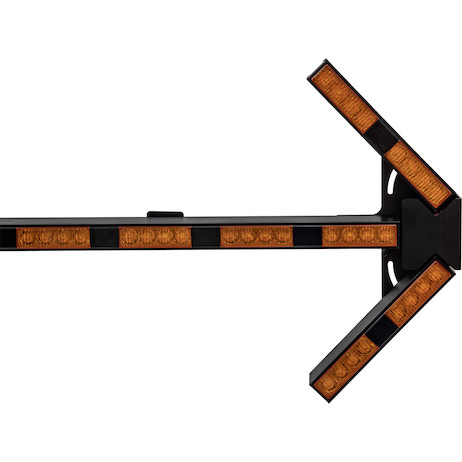

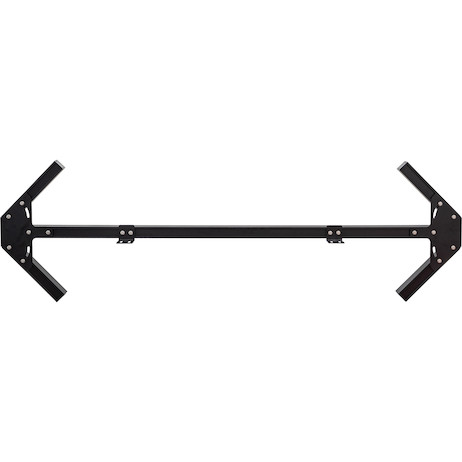

- Extruded aluminum with adjustable arrow points

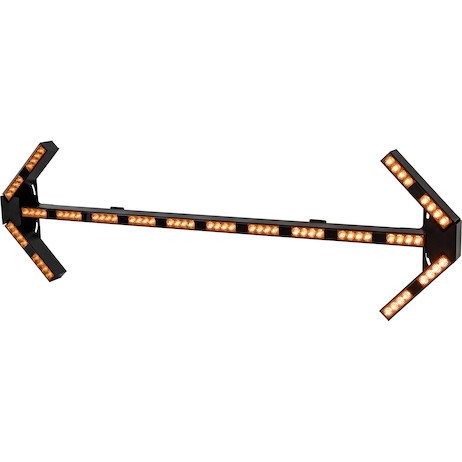

- 72 LEDs - 18 LED modules with 4 LEDs each

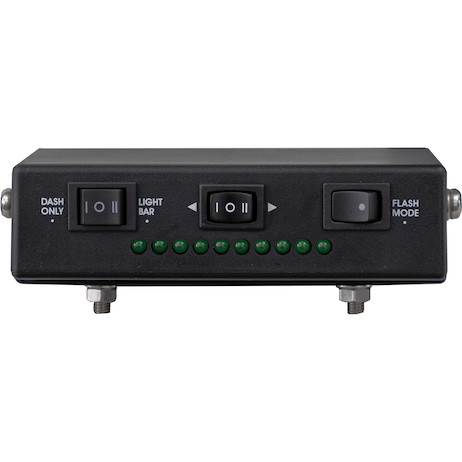

- 12-24V DC Controller with LED lamp display

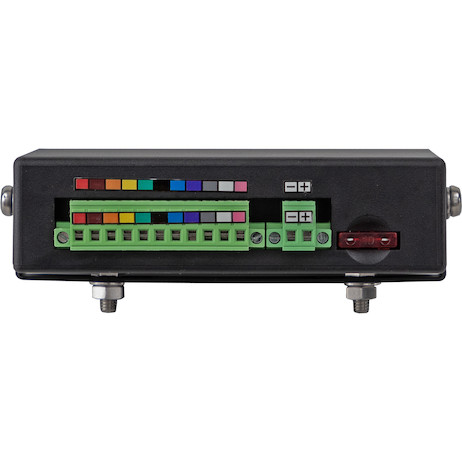

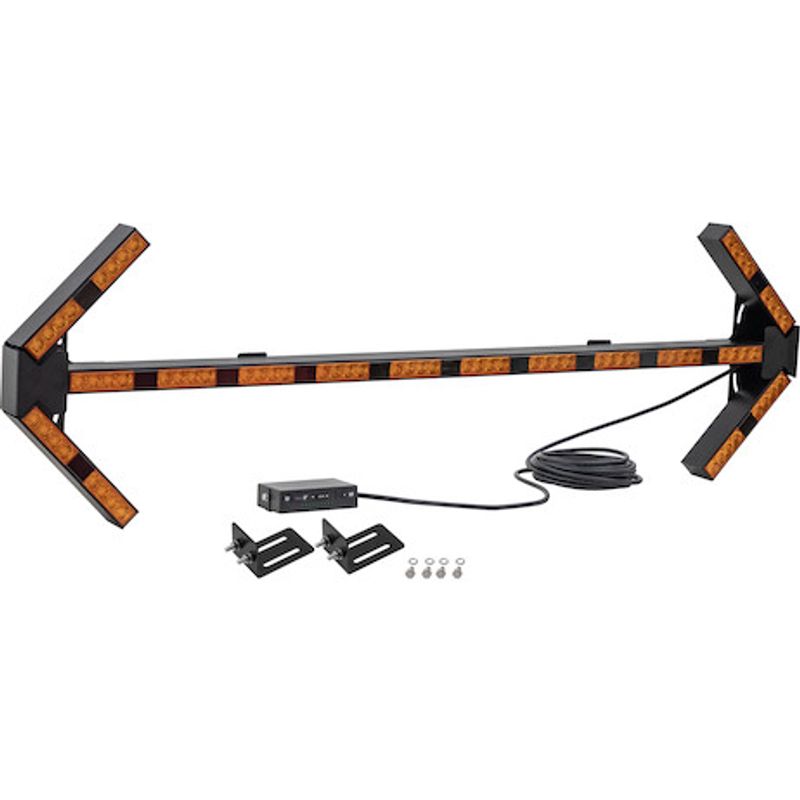

- 25 ft. cord with color-coded terminal block
- 8 directional and warning flash patterns
- Quick access button for left or right directional arrow selection
- Controller allows visible preview of pattern selection without light bar operating

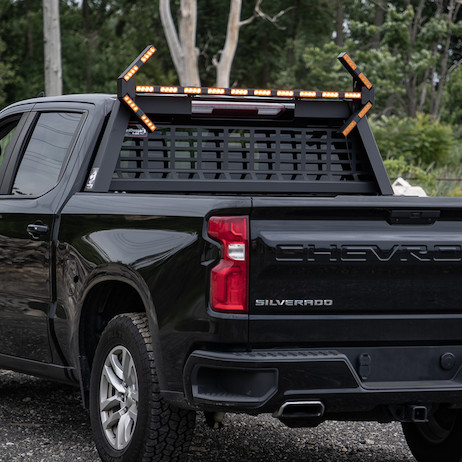

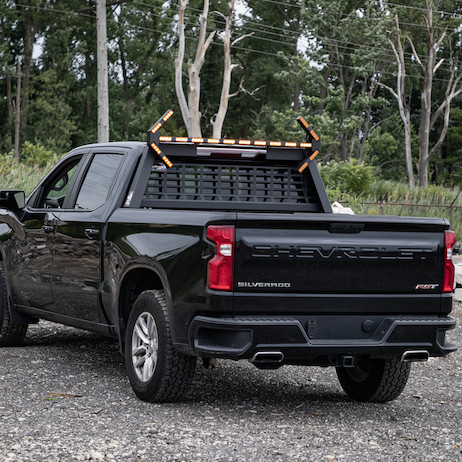

- Work Trucks
- Utility Trucks
Technical Details
- Mfg #
- 8894060
- SKU
- 8894060
- UPC
- 724920248259
- NMFC #
- 17870SUB7
- Weight
- 19 lbs.
- Dimensions
- 59 × 4 × 13 inches
- Mounts Included
- Rear
- Number of Flash Patterns
- 8
- Traffic Adviser?
- Yes
- IP Rating
- IP65
- Depth
- 2.66 inch
- Mount Type
- Screw Mount
- Height
- 17.81 inch
- Overall Width
- 57.21 inch
- Housing Material
- Aluminum
- Voltage
- 12-24V vdc
- Amp draw at 12 Volts
- 2.8 amps
- Lead Length
- 25 ft inch
- Type of Plug
- Blunt Cut
- Lens Material
- Polycarbonate
- Hard Wired or Plug
- Hard Wired
- Lens Shape
- Rectangular
- Color
- Amber
- SAE Classification
- SAE J595 CLASS1
- Number of LEDs
- 72
- Flash Patterns
- 8
