Product Information
Description:

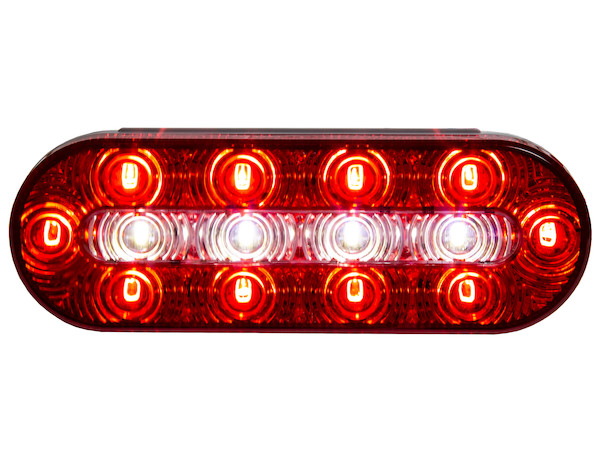

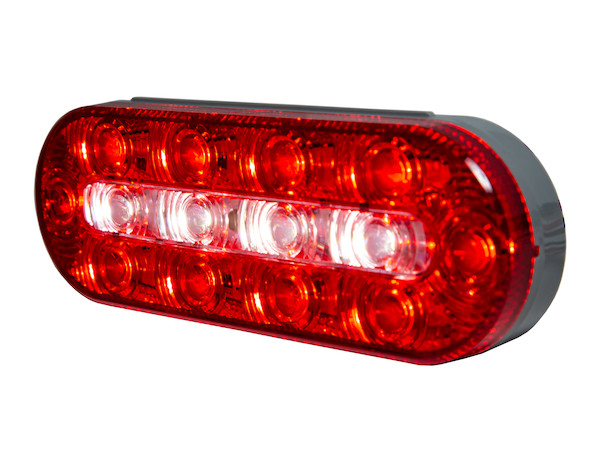

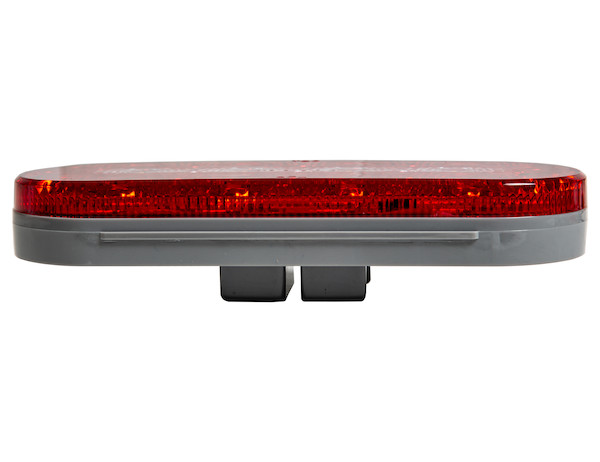

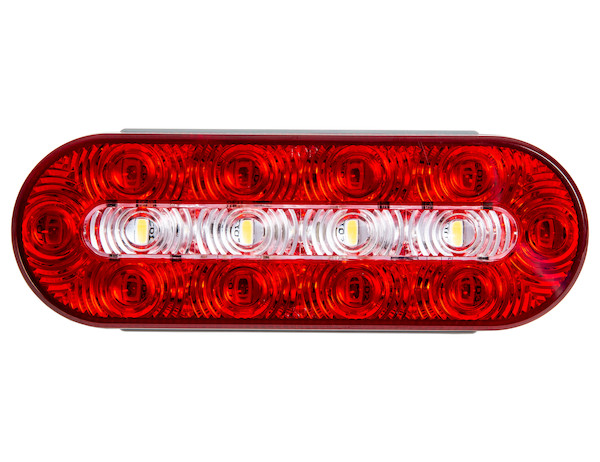

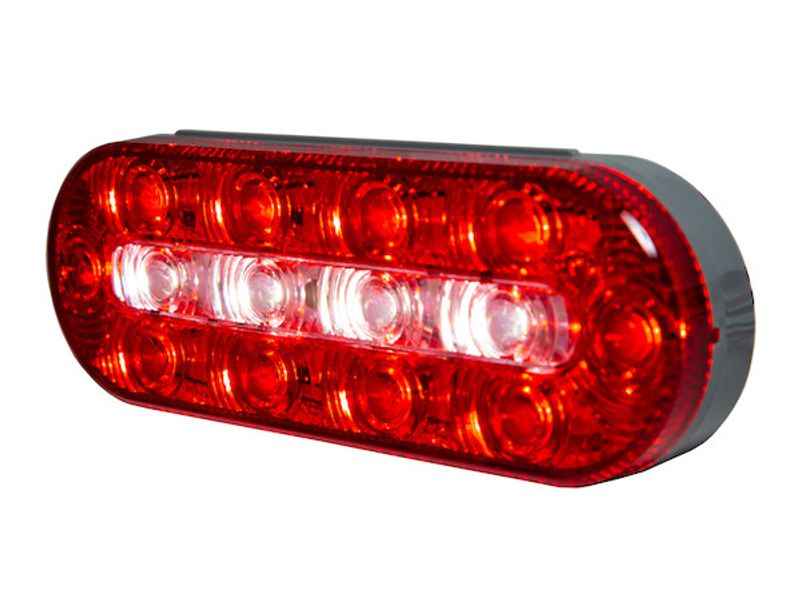

6 Inch Oval LED Combination Stop/Turn/Tail and Backup Light
Buyers Products 6 Inch Oval Stop/Turn/Tail and Backup Light is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.

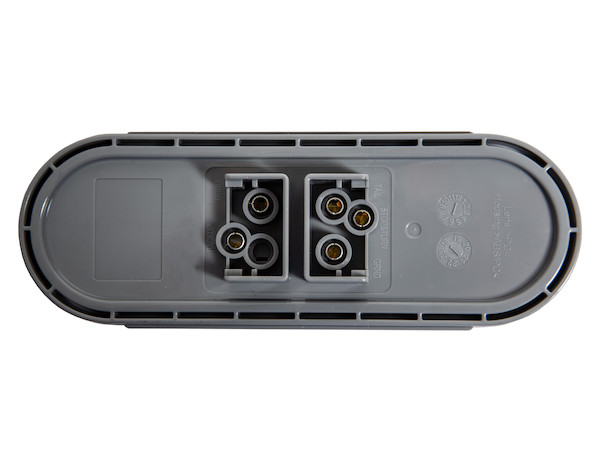

The light is a convenient and efficient way to get a red stop/turn/tail and clear backup light in a single fixture. It uses a PL-3 connection for the stop/turn/tail light and a PL-2 for the backup.
Lights are available individually or in a kit that includes a grommet and plug for installation. They are backed with a limited lifetime warranty.
Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
Features:
- Available in bulk (sold in multiples of 10) or individually in a kit that include a grommet and plug for installation.
- Uses a PL-3 connection for the stop/turn/tail light and a PL-2 for the backup.
- Backed with a limited lifetime warranty.
Technical Details
- Mfg #
- 5626130
- SKU
- 5626130
- UPC
- 724920170031
- NMFC #
- 17870SUB5
- Weight
- 1 lbs.

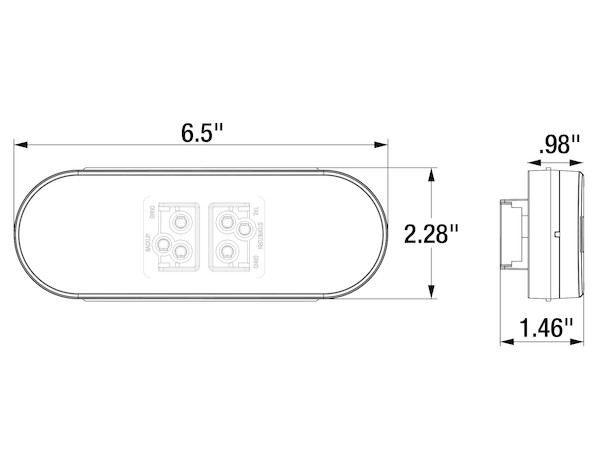

- Dimensions
- 7 × 2 × 1 inches
- Housing Material
- Polycarbonate
- Depth
- 6.48 inch
- Height
- 2.26 inch
- IP Rating
- 67
- Type of Plug
- PL-3 Connection
- Voltage
- 12 vdc
- Wattage
- 4.3 watts
- Operating Temperature
- -40 to 149 fahrenheit
- Color
- Clear/Red
- Connector
- PL-3 (Stop/Turn/Tail), PL-2 (Backup)
- Lens Shape
- Oval
- Hard Wired or Plug
- Plug
- Lens Material
- Polycarbonate
