6 Inch Oval Stop/Turn/Tail + Backup Combination Light with Light Stripe LED Tubes
Product Information
Description:
6 Inch Oval Stop/Turn/Tail + Backup Combination Light with Light Stripe LED Tubes
Buyers Products 6 Inch Oval Stop/Turn/Tail + Backup Combination Light with Light Stripe LED Tubes is used on trucks and trailers to meet FMVSS/CMVSS 108 regulations. This convenient light meets DOT requirements for both a stop/turn/tail and backup light in a single fixture. Patented "Light Stripe" LED technology gives the light a unique, automotive-style look.

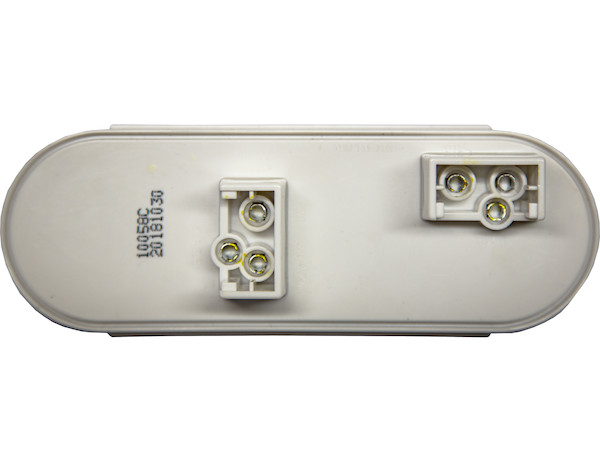

The light features durable polycarbonate construction and ultra-sonic welding to produce an IP69 rated watertight housing. It requires one PL-3 and one PL-2 connection.
Lights are sold in multiples of 10 and backed with a limited lifetime warranty.
Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
Features:
- DOT-compliant stop/turn/tail and backup functionality in a single fixture.
- Automotive-style "Light Stripe" LED tube technology provides a unique look.
- Rated IP69 for extreme dust and water resistance.
- Sold in multiples of 10.
- Backed with a limited lifetime warranty.
- Trucks
- Trailers
Technical Details
- Mfg #
- 5626132
- SKU
- 5626132
- UPC
- 724920183802
- NMFC #
- 17870SUB5
- Weight
- 1 lbs.
- Dimensions
- 7 × 3 × 2 inches
- Color
- Clear/Red
- Lens Shape
- Oval
- Hard Wired or Plug
- Plug
- Lens Material
- Polycarbonate
- Voltage
- 12 vdc
- Type of Plug
- PL-3 Connection
- Amp draw at 12 Volts
- .46 amps

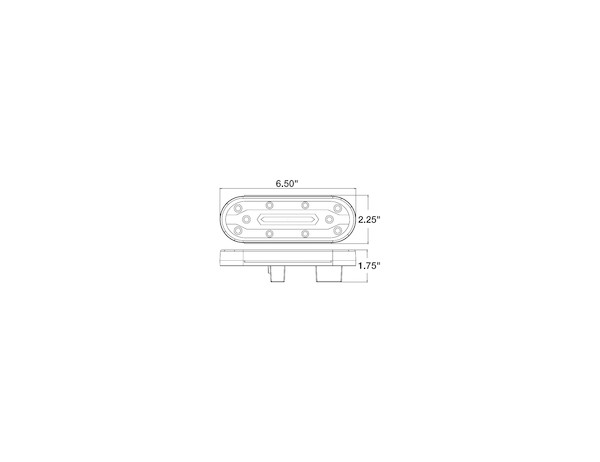

- Height
- 2.25 inch
- Housing Material
- Polycarbonate
- Depth
- 1.75 inch
- Overall Width
- 6.5 inch
