Buyers Products

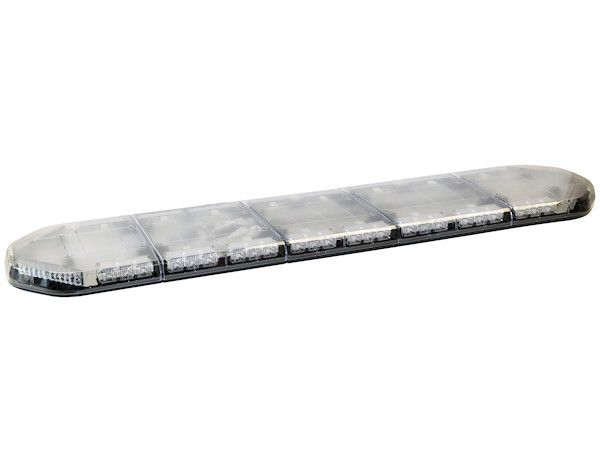

60 Inch Modular Light Bar (8 Amber Modules, 2 Red Stop/Turn/Tail, 2 Take Down)

$1,650.72

Product Information

Description:

60 Inch LED Modular Light Bars

Buyers Products 60 Inch LED Modular Light Bars are available in seven standard configurations. The amber light bar is SAE Class 1 certified and has a CA13 rating. All models feature 11 flash patterns in five programmable groups for a total of 55 different possible flash sequences. A dimming mode also comes standard.

Middle modules are reflective with three LEDs each. Corner modules have six LEDs each. Bright take down light modules are also available. See "Accessories" below for more details.

The light bar's extruded aluminum frame is excellent at dissipating heat, and the sturdy polycarbonate lens is extremely resistant to impact. Two recessed mounting channels and a 10 ft pre-wired power/function cable make the light bar easy to install and operate.

Mounting feet and controller are sold separately. Please contact Customer Service for more information.

Modular light bars are backed with a 5-year warranty.

Solid colors rated SAE J845 Class 1 with 55 flash sequences.

Features:

  • Stock configurations are available to fit any need.
  • 11 flash patterns with 5 programmable groups for 55 different flash sequences.
  • Amber light bar has a SAE Class 1 and CA13 rating.
  • Backed with a 5 year warranty.
  • 3024646 Adjustable Plastic Mounting Feet NOT included. Must be purchased separately.
  • Work Trucks
  • Safety Vehicles
  • Utility Trucks

Technical Details

Mfg #
88930603
SKU
88930603
UPC
724920139663
NMFC #
17870SUB5
Weight
35 lbs.
Dimensions
66 × 18 × 8 inches
Red Stop/Turn/Tail Modules?
Yes
Traffic Adviser?
No
Number of Flash Patterns
55
Mounts Included
No
Number of LEDs per Corner Strobe
6
Number of LEDs per Middle Strobe
3
Dimming Mode (y/n)
Yes
Class Level
1
Take Downs?
Yes
Amber Modules
8
Connector
Blunt Cut
Built-In Switch
No
Certification
CA13/SAE J845 Class 1/SAE J595 Class 1
Color
Amber/Red
Hard Wired or Plug
Hard Wired
Lens Shape
Octagonal
Height
2.188 inch
Depth
- inch
Base / Mount Type
Surface
Overall Width
61 inch
Number of Contacts
Number of Wires
Amp draw at 12 Volts
16 amps
Plug Included
No
Housing Material
Multiple
Type of Plug
Stripped Leads
Lead Length
15 inch
Operating Temperature
fahrenheit
Lens Material
Polycarbonate
Wattage
192 watts
Voltage
12 vdc
