8.0 Cubic Yard Electric Black Poly/Stainless Steel Hopper Spreader With Conveyor Chain
Product Information
Description:

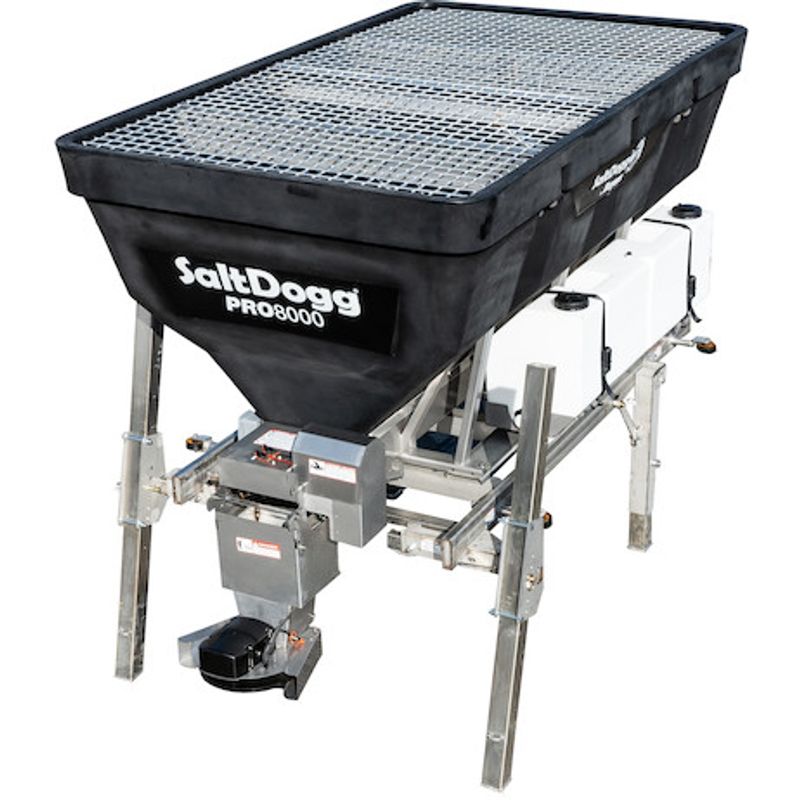

SaltDogg® PRO8000CH Series Poly Hopper Spreaders with Conveyor Chain
Buyers Products SaltDogg PRO8000CH Series Poly Hopper Spreaders give contractors, property managers, and municipalities a powerful 8 cubic yard spreader for commercial and municipal use. The high flow pintle chain conveyor can drive bulk salt, sand, or a 50/50 salt/sand mix at a flow rate of 600 lbs. per minute. The spreader works with dump trucks and flatbeds with a minimum 26,000 GVW (gross vehicle weight). Its electric-powered design means quieter operation with no need for refueling or engine servicing, giving you more time on the road. The hydraulic version provides the extra power needed for municipal applications.
The patented double-wall poly hopper is supported by a corrosion-resistant stainless steel frame and includes two steel top screens to help break up clumps of material during bulk loading. It features a 14-1/2 in. wide, all-steel pintle chain conveyor with a stainless steel trough. An independent 3/4 HP motor or 3.17 CL hydraulic motor powers the conveyor. The included inverted V and 900 lbs. vibrator help break up clumps and keep material flowing. An 18 in. polymer spinner, powered by an independent 1/2 HP, 12V motor or 3.17 CI hydraulic motor, spreads material 5 ft to 30 ft.
The PRO8000CH features a chute with an open trough and stainless steel spinner shield. The spinner assembly can be easily removed for cleaning and storage. The vibrator and independent conveyor and spinner speeds are controlled by an in-cab controller for the electric version. Spreader tie down kit sold separately.
A powerful spreader for heavy-duty commercial use.
Features:
- Works with dump trucks and flatbeds with minimum 26,000 lbs. GVW (gross vehicle weight).
- Durable poly hopper with stainless steel frame and trough.
- 12V DC-powered electric drive or hydraulic drive independent 3/4 HP chain motor, and 1/2 HP spinner motor.
- High flow pintle chain conveyor can drive bulk salt, sand, or a 50/50 salt/sand mix at a flow rate of 600 lb per minute.
- In-cab closed-loop controller with independent conveyor and spinner speeds, and vibrator control for the electric version only.
- 18 in. spinner broadcasts material up to 30 ft.
- Vibrator, top screens, and inverted V included.
- Spreader tie down kit sold separately.
- Backed with a 2 year warranty.
- Made in the USA.
- Commercial Properties
- Industrial Parking Lots
- City Roadways
Technical Details
- Mfg #
- PRO8000CH
- SKU
- PRO8000CH
- UPC
- 724920238182
- NMFC #
- 156600SUB5
- Weight
- 1864 lbs.
- Dimensions
- 146 × 82 × 62 inches
- Feed Mechanism2
- 14 1/2 in. Pintle Chain with 1/4in. Bars
- System Voltage
- 12 vdc
- Spinner Diameter
- 18.00 inch
- Gearbox Ratio
- 20:1
- Spreading Width Range
- 5 to 30 feet
- Spinner Material
- Polyurethane
- Chute Primary Material
- Polyethylene
- Chute
- Adjustable Height
- Controller Type
- High Current Variable Speed
- Trough Material
- 304 Stainless Steel
- Vibrator Force
- 900 pounds
- Drive Motor Horse Power
- 0.75 horsepower
- Hopper Material
- Polyethylene
- Hopper Color
- Black
- Drive Type
- Electric
- Overall Width (at top)
- 82.00 inch
- Overall Height (in.)
- 62.00 inch
- Hopper Width (in.)
- 82.00 inch
- Capacity
- 8.00 cubicyards
- Overall Length
- 146.00 inch
- Hopper Length (in.)
- 133.50 inch
- Works with Bulk Salt
- Yes
- Works with Bagged #1 Rock Salt
- Yes
- Works with Salt / Sand Mix
- Yes
- Frame Base Width
- 50.00 inch
- Works with Bulk Sand
- Yes
- Top Screen
- Yes
- Feed Mechanism
- Conveyor Chain
- Vibrator Included?
- Yes
- Number of Motors
- 2
- Spinner Motor Horse Power
- 0.50 horsepower
