Product Information
Description:

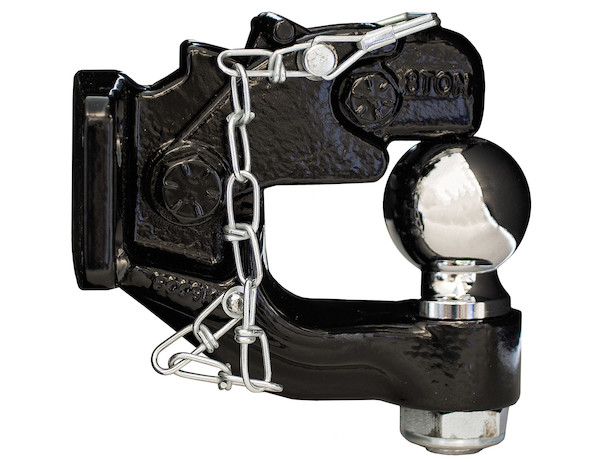

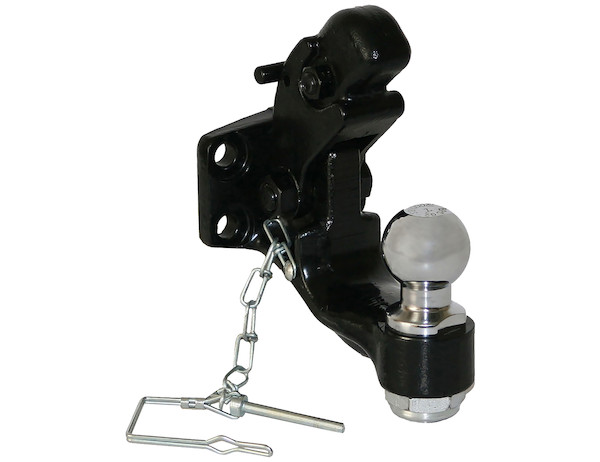

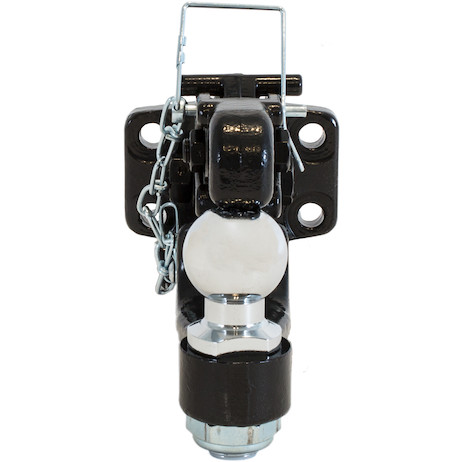

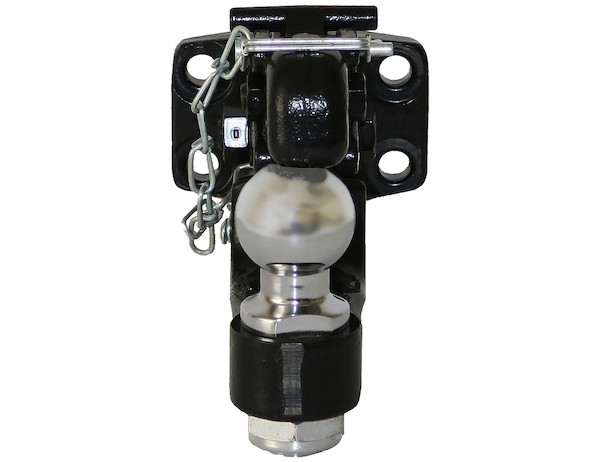

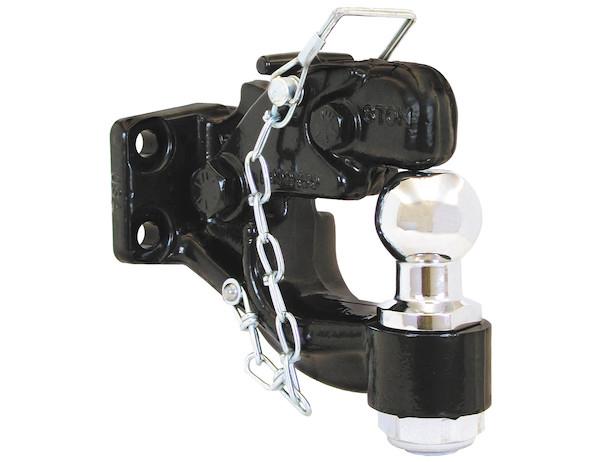

8 Ton Combination Hitch

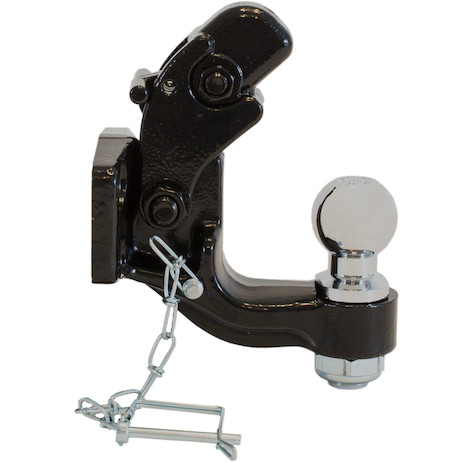

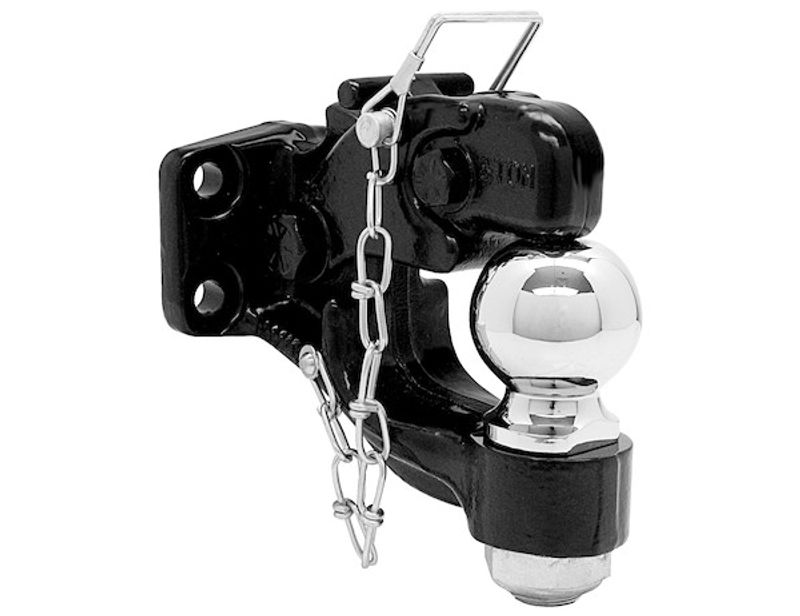

Buyers Products 8 Ton Combination Hitch combines both a ball hitch and pintle hook into one product. It allows you to pull loads that have either a coupler or a drawbar/pintle ring without having to change hitches. The hitch is ideal for contractors, tradesmen and haulers who tow a range of construction equipment.

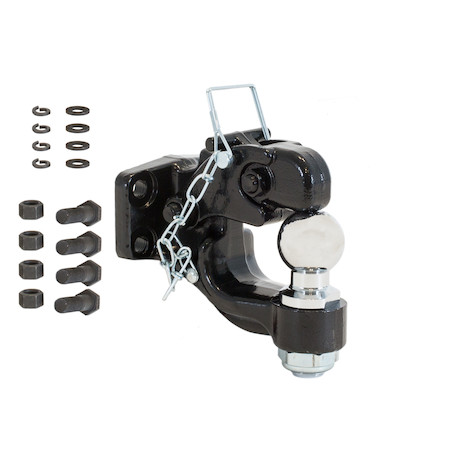

The hitch is available with 1-7/8 in., 2 in., or 2-5/16 in. ball sizes to accommodate different size couplers. It is bolt-mounted (drilling template included). A mounting kit with Grade 8 fasteners is available to order separately or as a set.
Allows you to switch from ball hitch to pintle hook towing without changing hitches.
Features:
Handles multiple towing needs with its interchangeable design.
Ideal for a wide range of light to medium duty trucks with a maximum gross towing weight of 16,000 lb.
Versatile design can accommodate a variety of trailer heights.
Tough, interchangeable forged steel hitch ball.
Durable and long-lasting drop-forged construction, with a corrosion-resistant powder-coated finish.
Towing
Hauling
Rental Towing Vehicles
Technical Details
- Mfg #
- 10050
- SKU
- 10050
- UPC
- 724920052207
- NMFC #
- 192030SUB11
- Weight
- 14 lbs.
- Dimensions
- 8 × 8 × 5 inches
- M.V.L. (lbs)
- 3,000 pounds
- M.G.T.W. (lbs)
- 12,000 pounds
- Color
- Black
- Material
- Forged Steel
- Finish
- Powder-Coat
- Pintle Hook Type
- Standard
- Drawbar Eye Inner Dia. (in.)
- 2.5-3.0 inch
- Ball Diameter (in.)
- 2 inch
- Ball Finish
- Chrome
- Ball Material
- Forged Steel

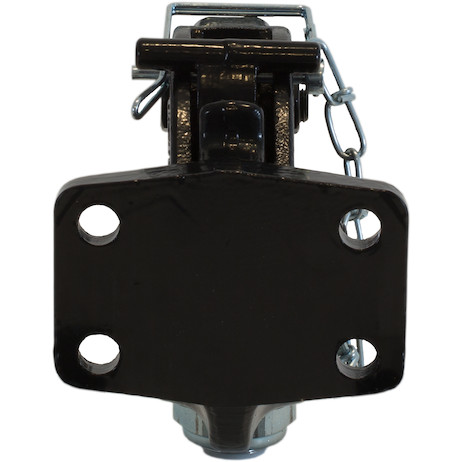

- Horizontal Hole Spacing (in.)
- 3.375 inch
- Mounting Hole Diameter (in.)
- 0.531 inch
- Vertical Hole Spacing (in.)
- 1.75 inch
