Product Information
Description:

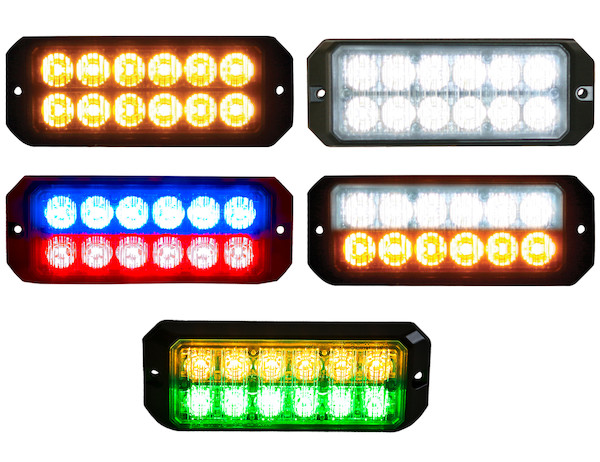

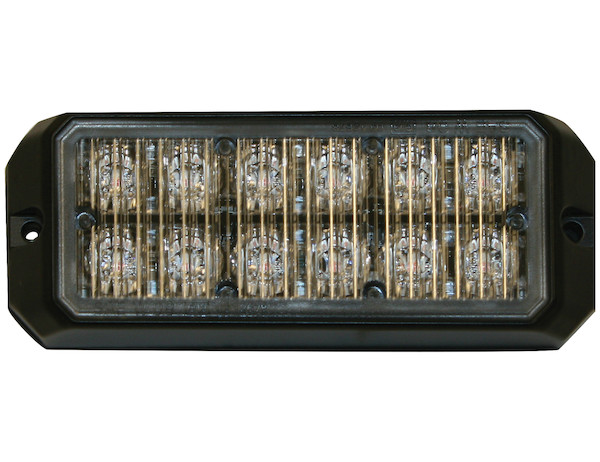

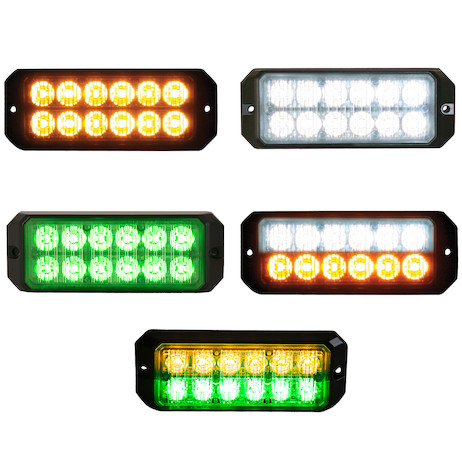

Dual Row 5 Inch LED Strobe Light Series
Buyers Products Dual Row 5 Inch LED Strobe Light Series features 25 flash patterns with alternating and synchronous functions.
The light is available in your choice of several solid or color combinations. Solid colors have a SAE J595 Class 1 rating for brightness. All lights are CA13 certified and rated IP67 for water and dust resistance.
A 90° aluminum mounting bracket is sold separately. Lights are backed with a 5 year warranty.
Rated SAE J595 Class 1 and CA13 certified.
Features:
- Rated SAE J595 Class 1.
- Rated IP67 for water and dust resistance.
- CA13 certified.
- Backed with a 5 year warranty.
- Work Trucks
- Trailers
Technical Details
- Mfg #
- 8891702
- SKU
- 8891702
- UPC
- 724920116954
- NMFC #
- 17870SUB9
- Weight
- 1 lbs.
- Dimensions
- 6 × 2 × 1 inches
- Built-In Switch
- No
- Color

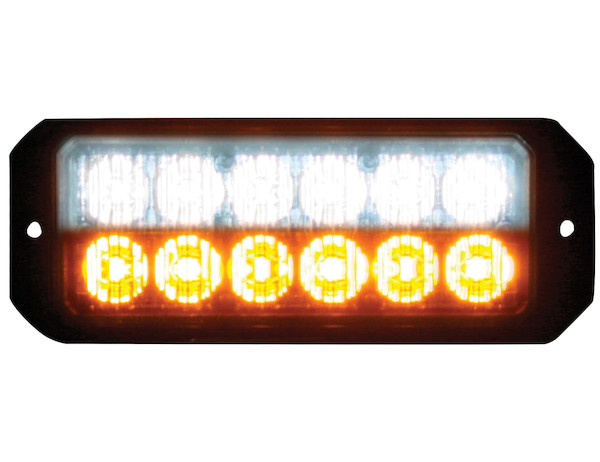

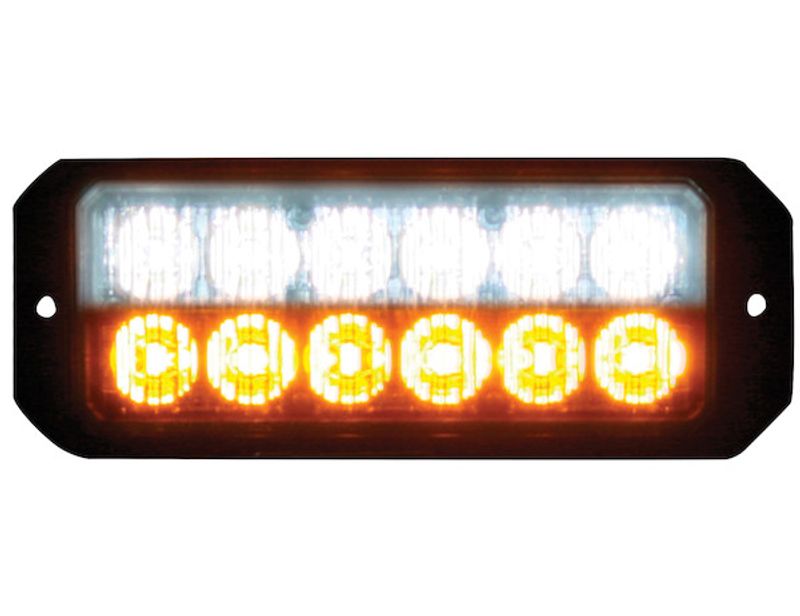

- Amber/Clear
- Connector
- Blunt Cut
- Hard Wired or Plug
- Hard Wired
- Certification
- IP67
- Lens Shape
- Rectangular
- Voltage
- 12-24 vdc
- Wattage
- 26.0 watts
- Lens Material
- Polycarbonate
- Operating Temperature
- fahrenheit
- Lead Length
- 8.00 inch
- Amp draw at 12 Volts
- 2.2 amps
- Type of Plug
- Stripped Leads

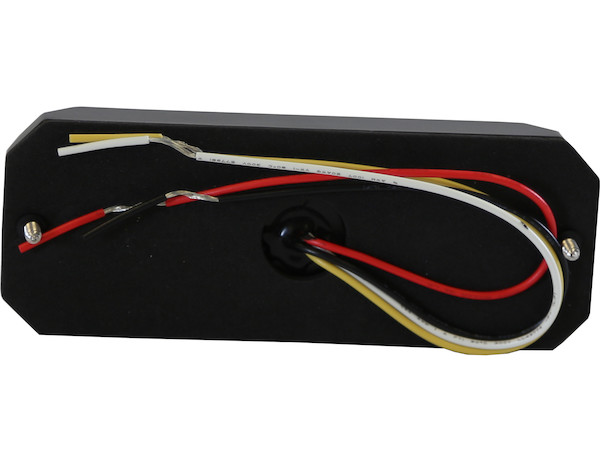

- Number of Wires
- 4
- Number of Contacts
- Plug Included
- No
- Housing Material
- Die Cast
- Overall Width
- 5.190 inch
- Base / Mount Type
- Surface
- Height
- 1.920 inch
- Mount Type
- Bolt-On
- Class Level
- 1
- Synchronous Function
- Yes
- Alternating Function (Y/N)
- Yes
- Grommet/Base Included
- No
- Number of Flash Patterns
- 25
