Buyers Products

Combination 6 Inch LED Amber Marker Light with Amber/Clear Strobe Light

$57.82

Product Information

Description:

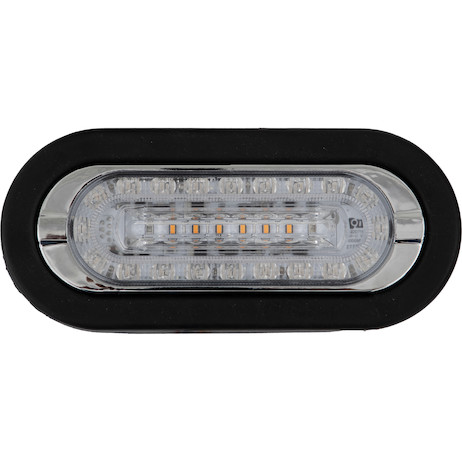

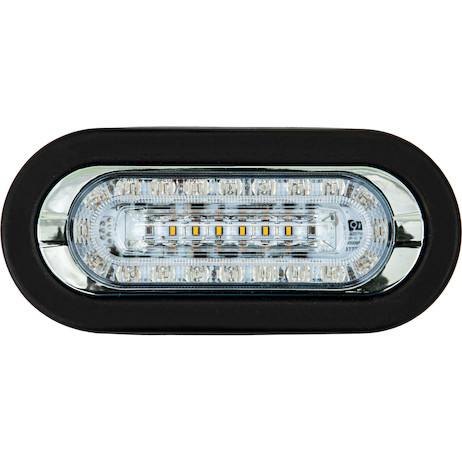

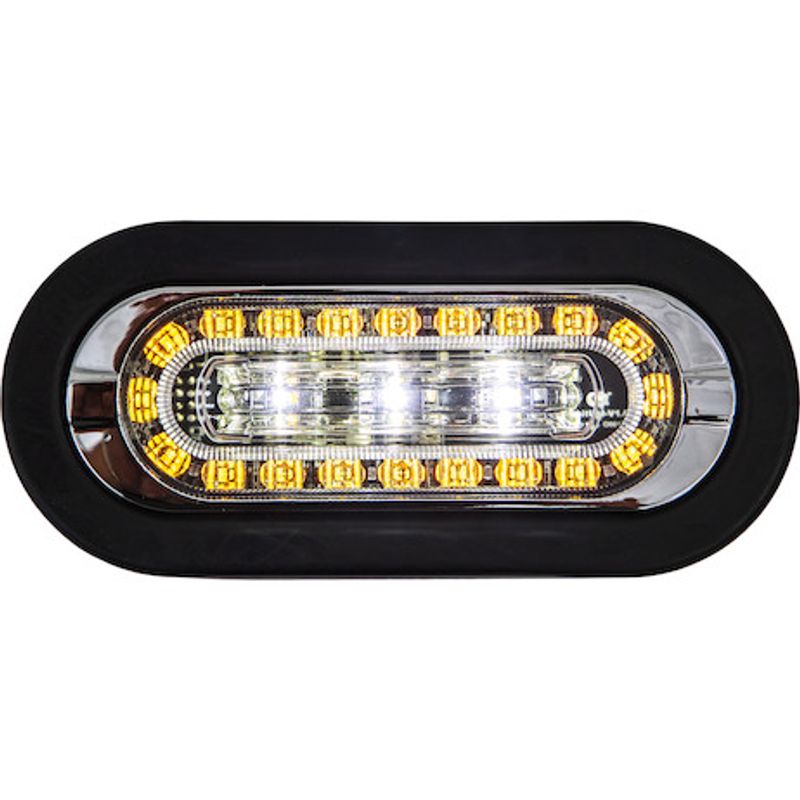

Combination 6 Inch Oval Marker with Strobe Light

Buyers Products Combination 6 Inch Oval Marker with Strobe Light combines a marker light and strobe light into one 6-inch fixture.

This versatile, SAE J595-rated light is CA T13 certified and meets FMVSS-108 regulations. It is rated IP69K for extreme dust resistance and waterproofing. The amber strobe features 19 flash patterns; amber/clear features 12 flash patterns; amber/green features 12 flash patterns. All three strobes have synchronous and alternating capabilities when paired with other strobes.

Multiple mounting options are included for your convenience. A grommet and mounting hardware are included for surface or recessed mounting. The light has 7-3/4 in. leads with blunt cut ends.

A multi-purpose light that meets DOT FMVSS 108 regulations and an SAE J595 Class 1 strobe all in one fixture.

Features:

  • Combines a marker light and a strobe light into one 6-inch light.
  • Can be surface mounted or recessed rubber mounted.
  • Compliments the 5626432 Combination LED Stop/Turn/Tail, Backup, and Strobe Light by having the same 6-inch oval housing that is suited for front or side mounting.
  • You can synchronize the front and rear strobes to the same flash pattern so that they work together in simultaneous or alternating flash patterns.
  • Utility Vehicles
  • Service Vehicles
  • Construction Vehicles
  • Refuse Vehicles

Technical Details

Mfg #
5626226
SKU
5626226
UPC
724920242240
NMFC #
17870SUB9
Weight
1 lbs.
Dimensions
9 × 4 × 2 inches
Flash Patterns
12
California Title 13
True
Certification
SAE J595, CA T13, FMVSS-108
SAE Classification
SAE J595
Color
Amber/Clear
Number of LEDs
26
Built-In Switch
No
Lens Shape
Oval
Hard Wired or Plug
Hard Wired
Lens Material
Polycarbonate
Lead Length
7 inch
Operating Temperature
-30 C to +70 C fahrenheit
Wattage
10 watts
Type of Plug
Blunt Cut
Amp draw at 12 Volts
.83 amps
Voltage
12 vdc
Plug Included
No
Number of Wires
5
Number of Contacts
5
Base / Mount Type
Recessed or Surface
Housing Material
Plastic
Overall Width
2 5/8 inch
Depth
1 inch
IP Rating
IP67, IP69K
Height
3 1/4 inch
Overall Length
7 3/4 inch
Mount Type
Recessed or Surface
