Product Information
Description:

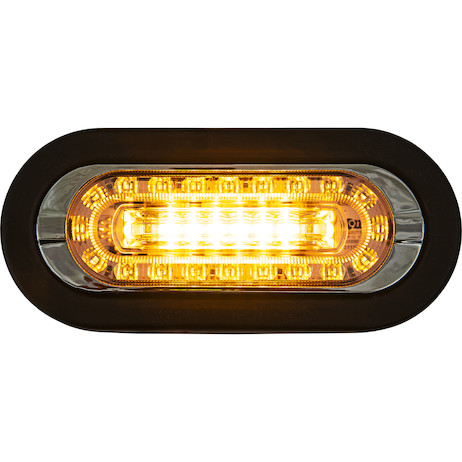

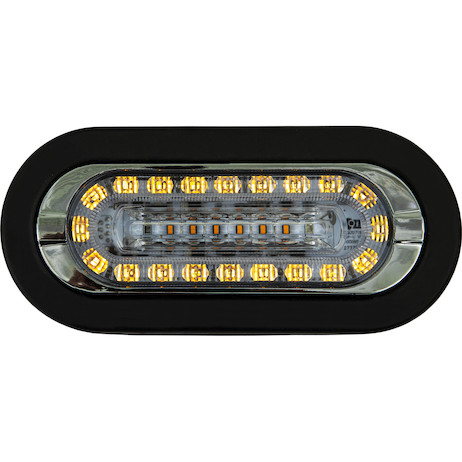

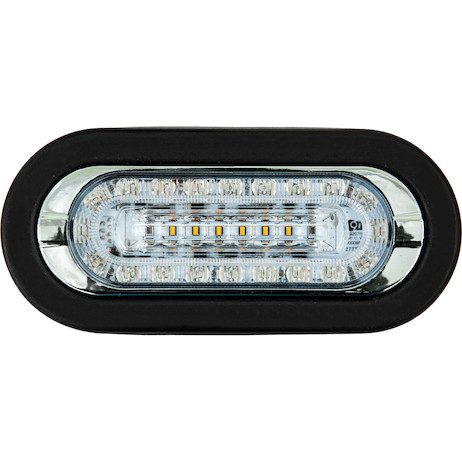

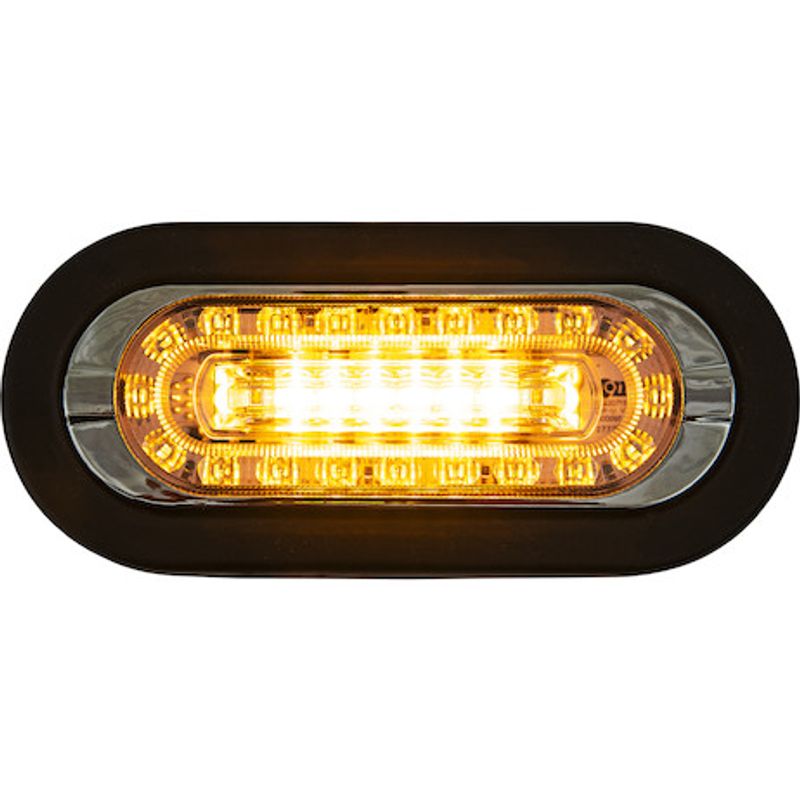

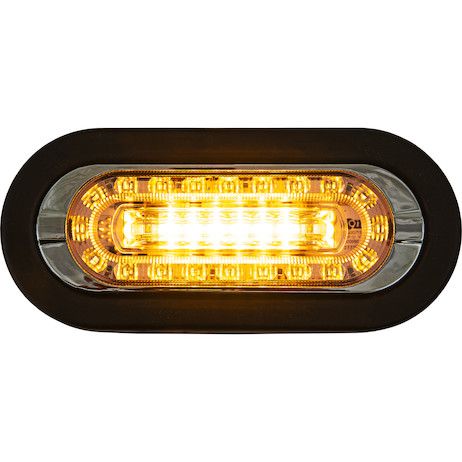

Combination 6 Inch Oval Marker with Strobe Light
Buyers Products Combination 6 Inch Oval Marker with Strobe Light combines a marker light and strobe light into one 6-inch fixture.
This versatile, SAE J595-rated light is CA T13 certified and meets FMVSS-108 regulations. It is rated IP69K for extreme dust resistance and waterproofing. The amber strobe features 19 flash patterns; amber/clear features 12 flash patterns; amber/green features 12 flash patterns. All three strobes have synchronous and alternating capabilities when paired with other strobes.
Multiple mounting options are included for your convenience. A grommet and mounting hardware are included for surface or recessed mounting. The light has 7-3/4 in. leads with blunt cut ends.
A multi-purpose light that meets DOT FMVSS 108 regulations and an SAE J595 Class 1 strobe all in one fixture.
Features:
- Combines a marker light and a strobe light into one 6-inch light.
- Can be surface mounted or recessed rubber mounted.
- Compliments the 5626432 Combination LED Stop/Turn/Tail, Backup, and Strobe Light by having the same 6-inch oval housing that is suited for front or side mounting.
- You can synchronize the front and rear strobes to the same flash pattern so that they work together in simultaneous or alternating flash patterns.
- Utility Vehicles
- Service Vehicles
- Construction Vehicles
- Refuse Vehicles
Technical Details
- Mfg #
- 5626026
- SKU
- 5626026
- UPC
- 724920243162
- NMFC #
- 17870SUB9
- Weight
- 1 lbs.
- Dimensions
- 9 × 4 × 1 inches
- Lead Length
- 7 inch
- Type of Plug
- Blunt Cut
- Lens Material
- Polycarbonate
- Lens Shape
- Oval
- Wattage
- 10 watts
- Hard Wired or Plug
- Hard Wired
- Number of LEDs
- 26
- Certification
- SAE J595, CA T13, FMVSS-108
- Built-In Switch
- No
- Color
- Amber
- California Title 13
- True
- SAE Classification
- SAE J595
- Flash Patterns
- 19
- Amp draw at 12 Volts
- .83 amps
- Voltage
- 12-24 vdc
- Plug Included
- No
- Number of Contacts
- 5
- Number of Wires
- 5
- Base / Mount Type
- Recessed or Surface
- Overall Width
- 2 5/8 inch
- Height
- 3 1/4 inch
- Housing Material
- Plastic
- IP Rating
- IP67, IP69K
- Depth
- 1 inch
- Overall Length
- 7 3/4 inch
- Mount Type
- Recessed or Surface
- Operating Temperature
- -30 C to +70 C fahrenheit
