CURT

15703 - Commercial Duty Class 5 Hitch; 2-1/2in.; Select Silverado; Sierra 2500; 3500 HD - 2001-2010 Chevrolet Silverado 2500 HD and more

Product Fit
$708.64

Product Information

Description:

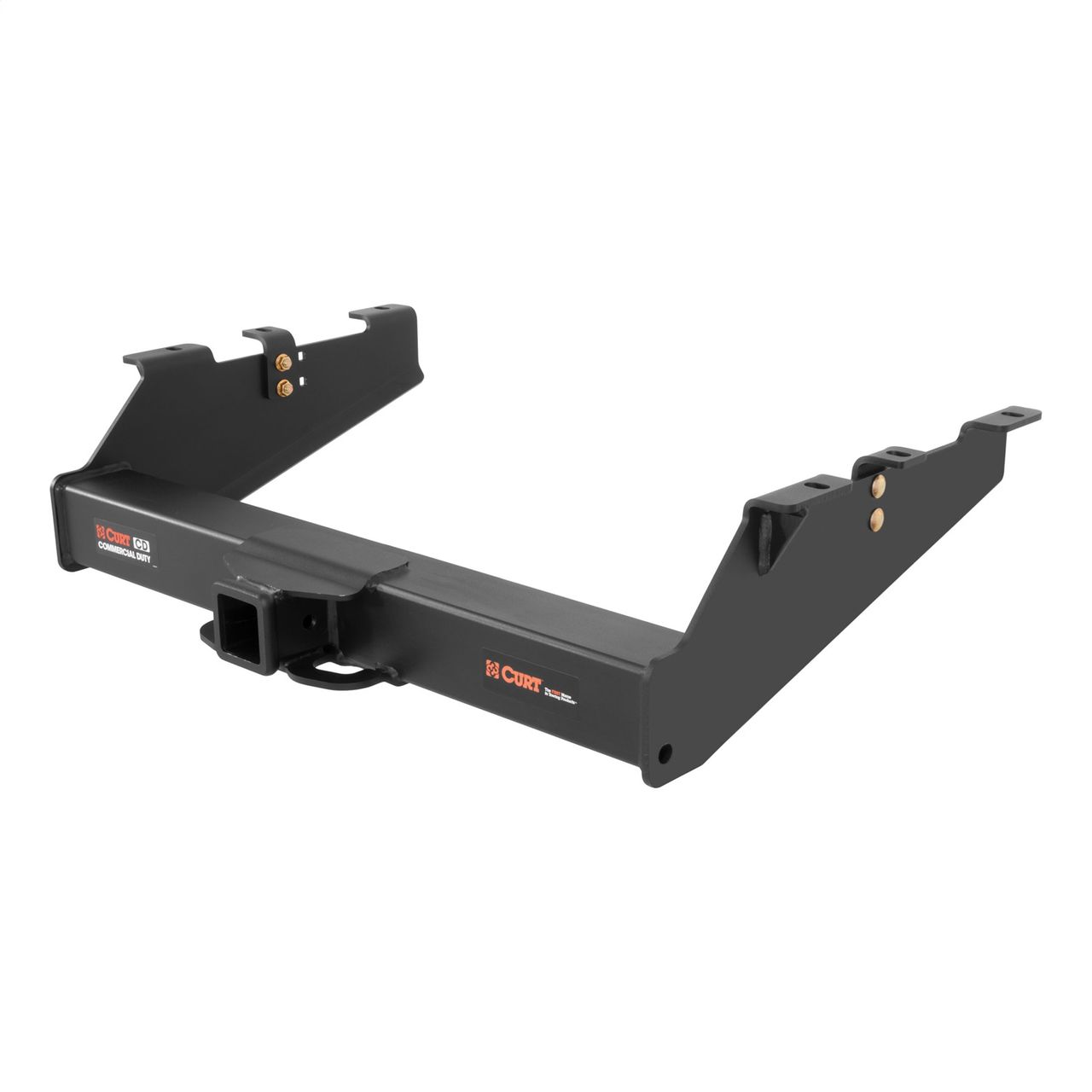

CURT 15703 Commercial Duty Class 5 Trailer Hitch; 2-1/2-Inch Receiver; Compatible with Select Chevrolet Silverado; GMC Sierra 2500; 3500 HD

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 18,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Silverado 2500, 2500 HD, 2500 HD Classic, 3500, 3500 HD or 3500 Classic and GMC Sierra 2500, 2500 HD, 2500 HD Classic, 3500, 3500 HD or 3500 Classic (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2 in. x 2-1/2 in. receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

Features:

  • Made w/A Vehicle-Specific Design For A Custom Fit
  • Tested For Safety In Accordance w/SAE J684
  • Precisely Welded For Superior Strength And Fit
  • Constructed w/A Large Powerful Main Body
  • Protected By A Highly Durable Carbide Powder Coat Finish
  • Co-Cured In A Rust-Resistant Liquid Bonderite Coating
  • Strengthened w/A Cast Welded Seamless Collar
  • Features Wide Safety Chain Openings For Heavy-Duty Hooks
  • Backed By A Limited Lifetime Warranty
  • Made in USA [may include imported hardware]

Technical Details

Mfg #
15703
SKU
CU-15703
UPC
612314157037
GTIN
00612314157037
Weight
74 lbs.
Dimensions
48 × 33 × 14 inches
Body Shape
Square
Drilling Required
Yes
Finish
Carbide Black Powder Coat
Gross Trailer Weight
18000 lbs.
Install Time
30 Minutes
Position
Rear
Receiver Tube Size
2.500 in.
Visibility
Concealed
WC Tongue Weight
2700
WD Tongue Weight
2700
Weight Carrying Capacity
18000
Weight Distribution
18000
