Product Information
Description:

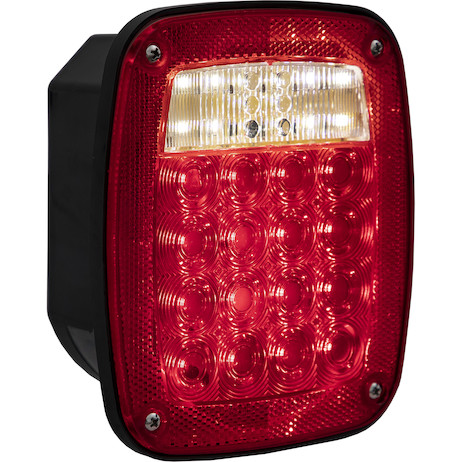

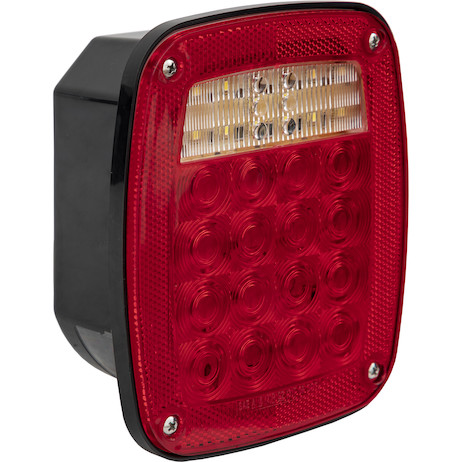

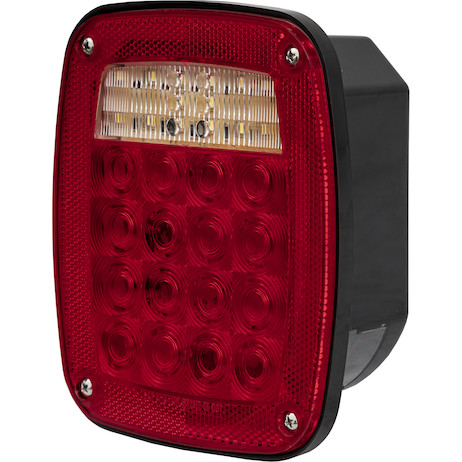

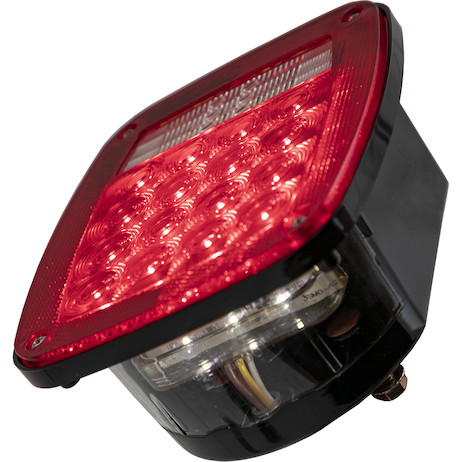

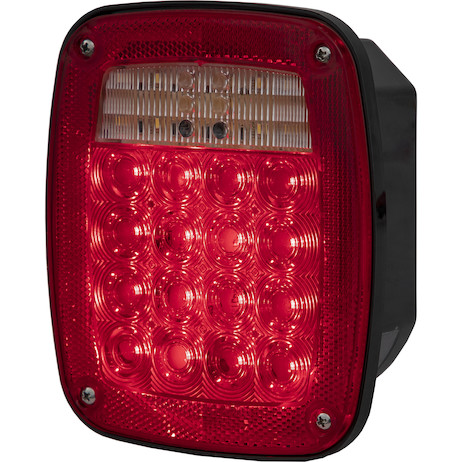

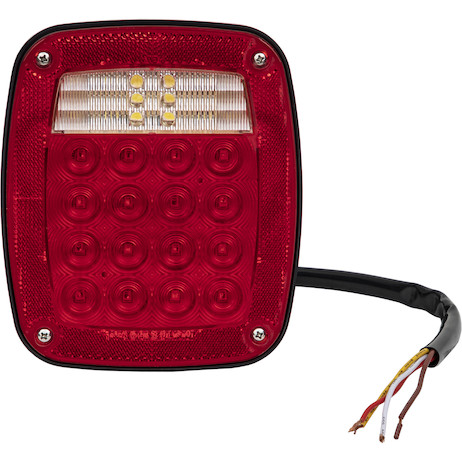

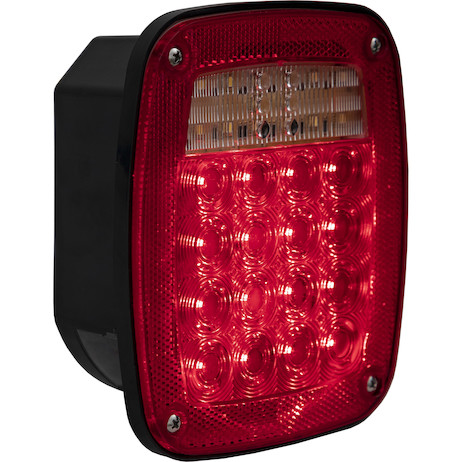

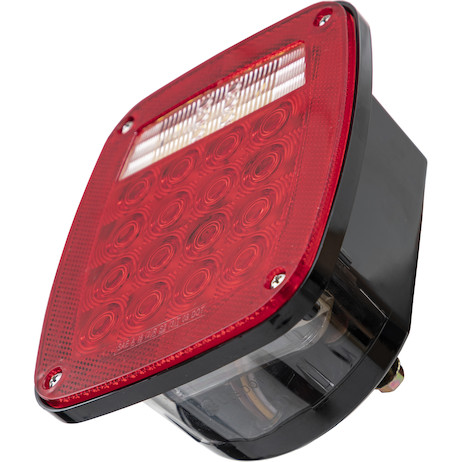

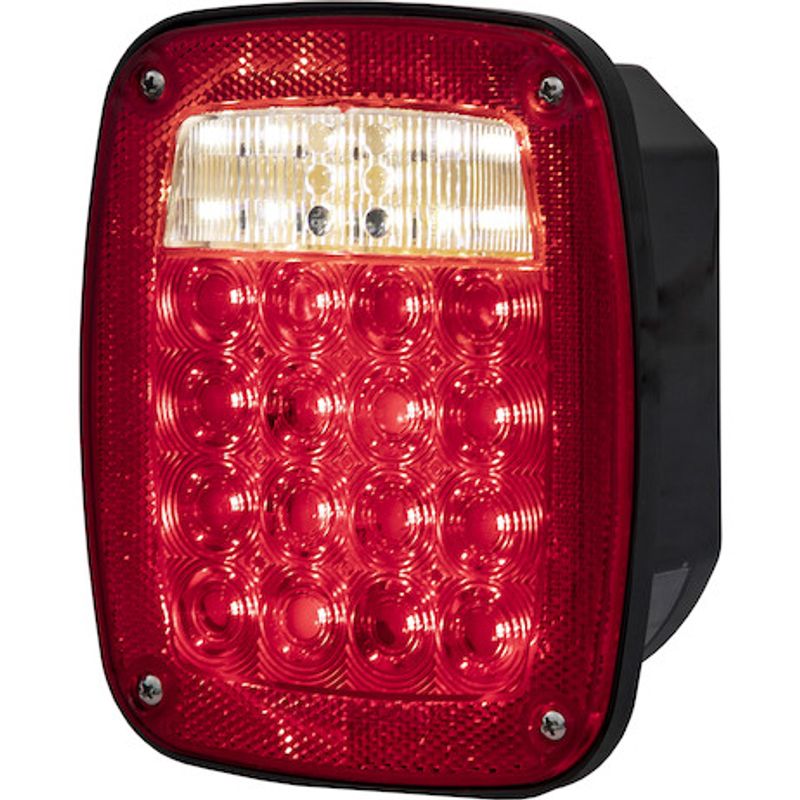

5.75 Inch Box Style Stop/Turn/Tail Light
Buyers Products 5.75 Inch Box Style Stop/Turn/Tail Light can be used as an OEM replacement for your truck chassis/service body lights. The light features an internal Reflex optic, which eliminates the need for a separate reflector. The driver side version also includes a license plate light.

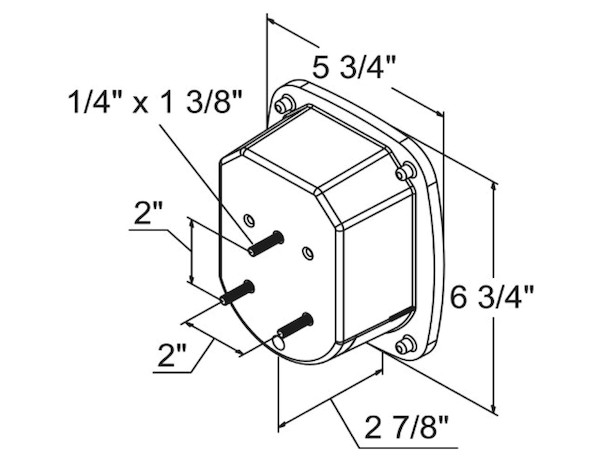

Lights have a red lens and are hard-wired with blunt cut leads and a 3-stud mounting pattern. An optional license plate bracket is also available.
The lights are backed with a limited lifetime warranty.
Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.
Features:
- Includes internal Reflex optics to eliminate the need for a separate reflector.

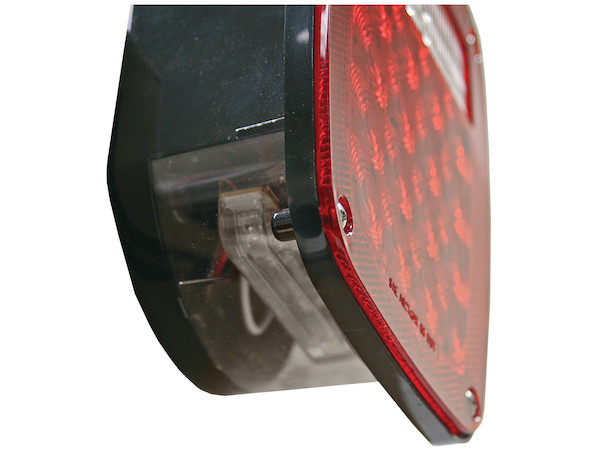

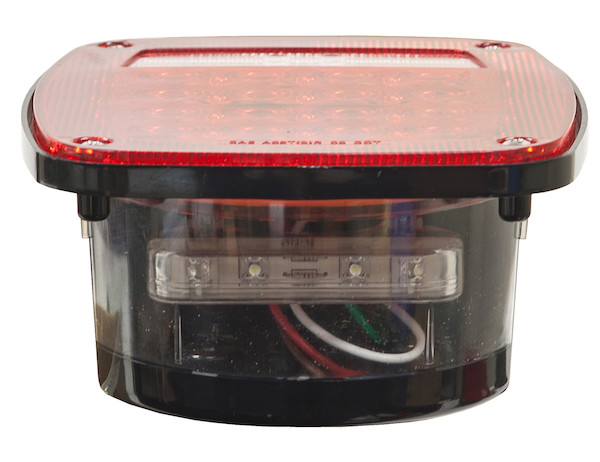

- The driver side version (5626738) also includes a license plate light.

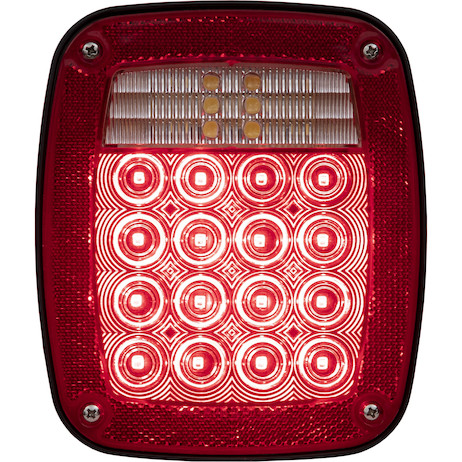

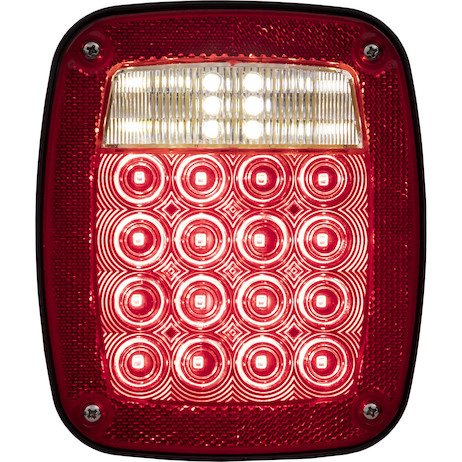

- 5626734 has 16 Red and 14 Clear LEDS. 5626738 has 16 Red and 17 Clear LEDs.
- Optional 5626700 license plate bracket is available.
- Backed with a limited lifetime warranty.
- Box Trucks
- Chassis Replacement Lights
- Service Body Trucks
Technical Details
- Mfg #
- 5626738
- SKU
- 5626738
- UPC
- 724920113878
- NMFC #
- 17870SUB5
- Weight
- 2 lbs.
- Dimensions
- 9 × 9 × 7 inches
- Height
- 6.750 inch
- Depth
- - inch
- Overall Width
- 5.750 inch
- Base / Mount Type
- Surface
- Housing Material
- Plastic
- Number of Contacts
- Plug Included
- No
- Number of Wires
- 4
- Type of Plug
- Blunt Cut
- Amp draw at 12 Volts
- 0.091 amps
- Voltage
- 12 vdc
- Wattage
- 1.09 watts
- Operating Temperature
- fahrenheit
- Lens Material
- Polycarbonate
- Lens Shape
- Rectangular
- Hard Wired or Plug
- Hard Wired
- Built-In Switch
- No
- Color
- Red
