Product Information
Description:
Compact-Style Dump Body-Up Indicator Kit
Buyers Products Compact-Style Dump Body-Up Indicator Kit mounts to the frame of your vehicle to notify you when the dump body is raised to increase alertness while working. It is designed to reduce the chance of overhead collisions with raised dump bodies.
Waterproof and IP68 rated, this indicator can perform in the most extreme temps: -40 F° to 185 F°. The Body-Up Indicator Kit has 304 stainless steel housing for the ultimate in corrosion resistance.

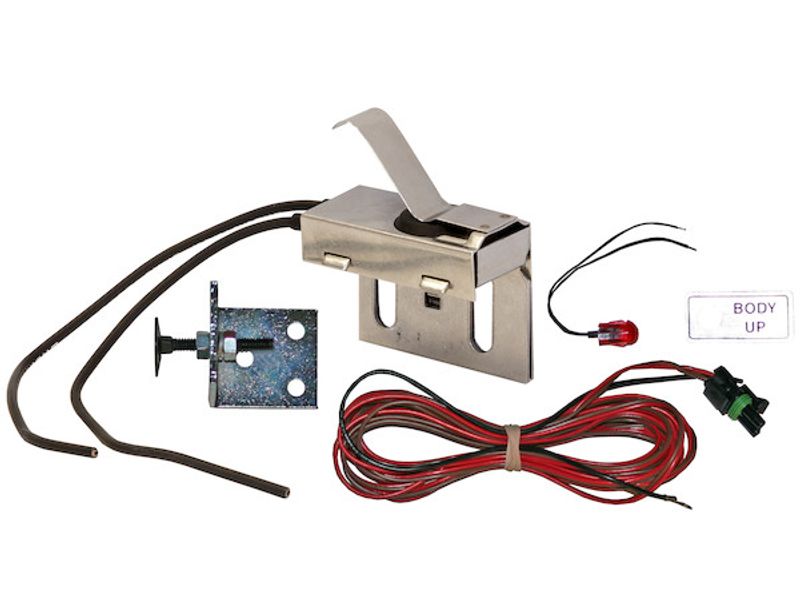

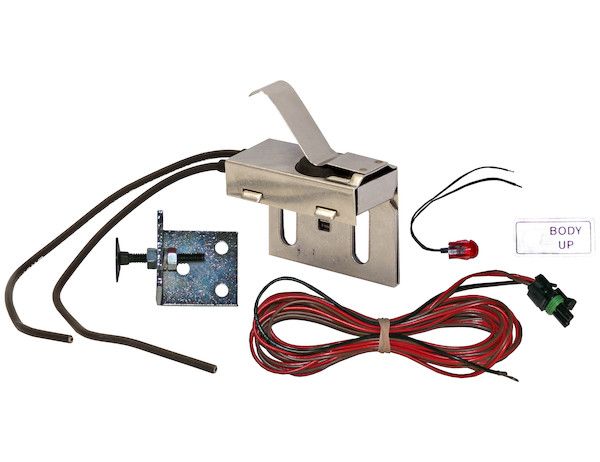

The 12V, 5A kit also includes a wiring harness and red indicator light so you'll have everything you need for installation. Choose between a standard red light or a buzzer light with 70 dB alarm.
Mounts to the frame of your vehicle to notify you when the dump body is raised.
Features:
- Alerts driver when dump bed or gate is raised.
- The bright red light quickly notifies you if dump body is up.
- Choose standard red light or buzzer light with a 70 dB alarm.
- Dump Body Applications
- Dump Trucks
- Dump Trailers
Technical Details
- Mfg #
- SK16
- SKU
- SK16
- UPC
- 724920152686
- NMFC #
- 63160SUB9
- Weight
- 1 lbs.
- Dimensions
- 11 × 9 × 3 inches
- Use With
- -
- Connector
- Packard
- Indicator Light Included?
- Yes
- Buzzer Included?
- Yes
- Voltage
- 12 - 24 vdc
- Amperage
- 5.0 amps
- Depth
- 0.86 inch
- Height
- 1.50 inch
- Body Up Style
- Lever
- Water Resistant (y/n)
- Yes
- Minimum Operating Temperature
- -40 fahrenheit
- Maximum Operating Temperature
- 185 fahrenheit
- Wiring Harness Length
- 1.75 feet
- Mounting Holes Center to Center
- 1.00 inch
