SnowDogg

Expressway Plow - 11 Foot Carbon Steel Blade, Trip Edge, Swivel, 4 Inch Cylinders

$14,352.00

Product Information

Description:

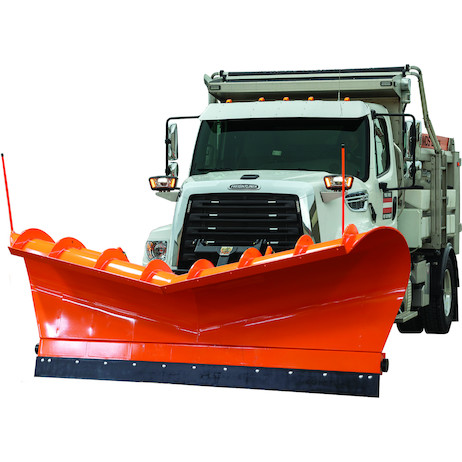

SnowDogg® Expressway Municipal Snow Plow - Carbon Steel Blade with Trip Edge

Buyers Products SnowDogg® Expressway Full Trip Municipal Snow Plow with Carbon Steel Blade is a high speed interstate plow. The Expressway's massive flared blade stands 40 in. high in the middle and 55 to 56 in. at either end. It's built with sturdy 7 Ga steel with eight 1/2 in. reinforcing ribs and finished with a corrosion-resistant orange Tuff Kote™ powder coat. The roll-formed design creates an integral deflector that improves operator visibility by reducing drift. It also throws snow substantially farther than a traditional straight blade. The plow's trip edge design helps protect your equipment from unseen obstacles without dumping the load of snow you're pushing.

Fortified components give the Expressway the power needed to plow large amounts of heavy snow at high speeds. The tubular steel push frame spans the width of the moldboard ribs to spread impact force and reduce wear, and the sector features sturdy 3/4 in. angular construction. Double acting chrome angle cylinders provide powerful hydraulic reversing. A heavy duty level chain lift keeps the plow parallel to the ground regardless of terrain. All steel components have a corrosion-resistant black powder-coated finish.

A powerful municipal plow designed for high speed interstate use.

Features:

  • Designed for high speed interstate plowing.
  • Flared moldboard stands 40 in. high in the middle and 55 to 56 in. (depending on model) at either end.
  • Integral roll-formed deflector reduces drift to improve driver visibility and throws snow farther than a traditional straight blade.
  • Corrosion resistant Tuff Kote™ orange powder-coated finish on the blade and a black powder-coated finish on the frame.
  • Trip edge design helps protect equipment from unseen curbs and other obstacles.
  • Tubular steel push frame spans the width of the moldboard's ribs for exceptional strength and to spread impact force.
  • Sturdy 3/4 in. angular construction on the sector provides durability where it's needed most.
  • Made in the USA.

Technical Details

Mfg #
1663410202
SKU
1663410202
UPC
724020170529
NMFC #
130195SUB2
Cutting Edge Dimensions
8 x 5/8 inch
Blade Width
132 inch
Color
Orange
Rib Material
Carbon Steel
Finish
Powder Coat with Primer
Push Frame Tubing Dimensions
4 x 3/8 inch
Tubing Diameter
3 x 1/2 inch
King Pin Diameter
2.00 inch
Number of Trip Springs
5
Tubing Material
Carbon Steel
Attachment Style
Swivel
Rib Thickness
0.50 inch
Blade Height
40/55 inch
Trip Style
Trip Edge
Number of Ribs
8
Angle Cylinder Dimensions
4 x 2 x 12 inch
Cutting Edge Material
1080 Steel
Angle Cylinder Action
Double Acting
Material
Carbon Steel
Trip Spring Syle
Torsion
