Product Information
Description:
Fabricators Pintle Mount Hitch Plate
The Fabricators Hitch Plate from Buyers Products lets you build your hitch plate to meet your specific vehicle and needs.

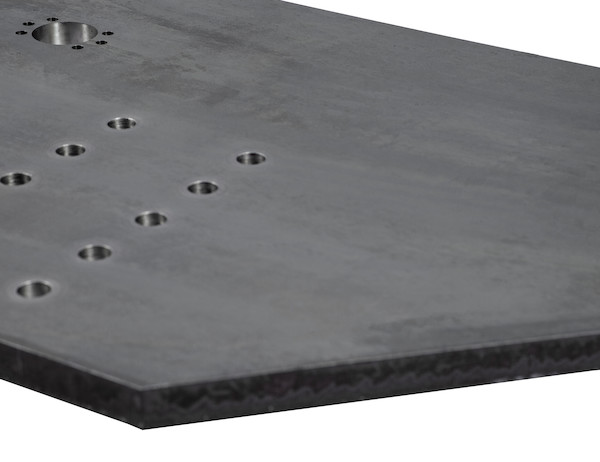

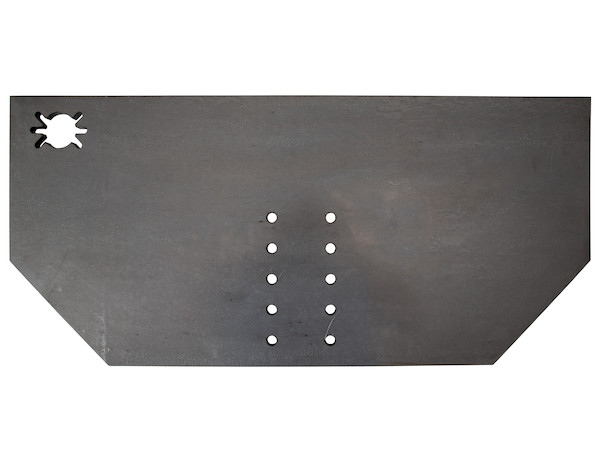

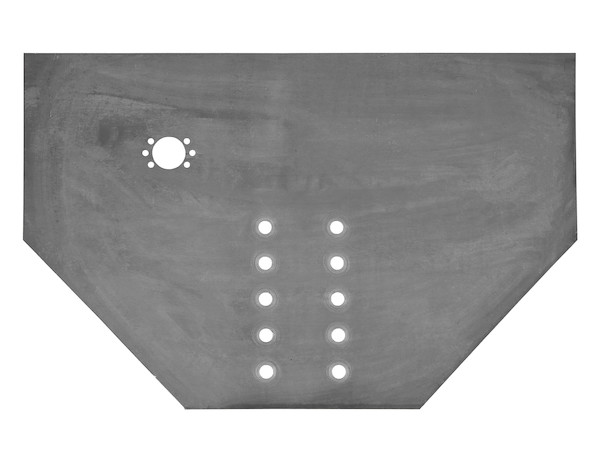

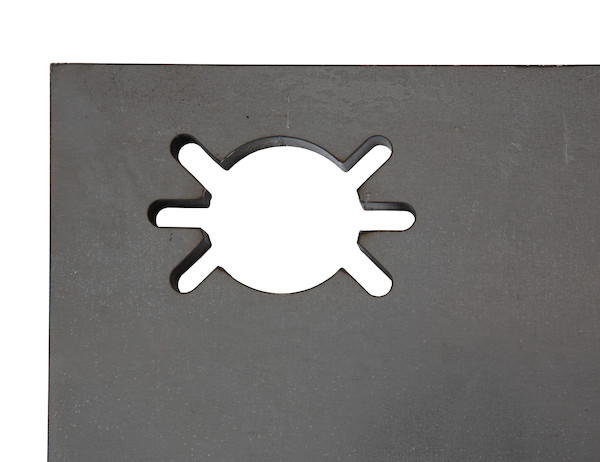

Available in thicknesses of 1/2 in., 5/8 in., 3/4 in., or 1 in., the hitch plate features multiple pintle hook mounting positions and a pre-punched hole for electrical connectors. The hitch plate is welded to the frame.

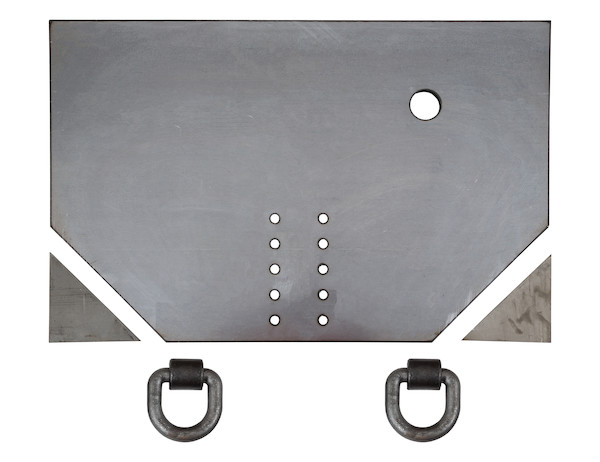

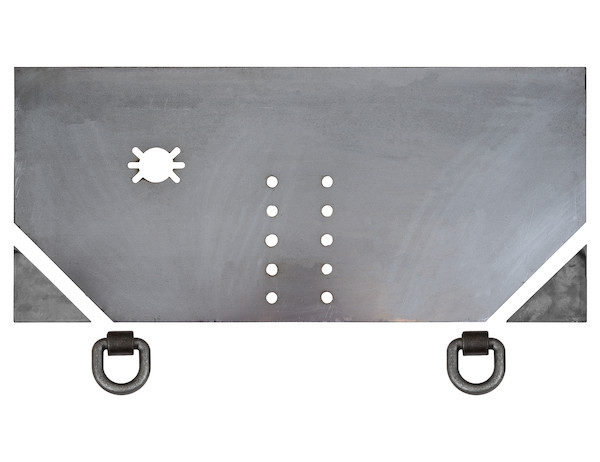

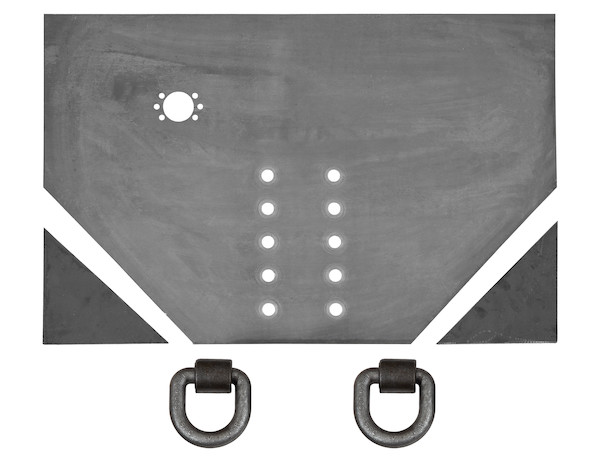

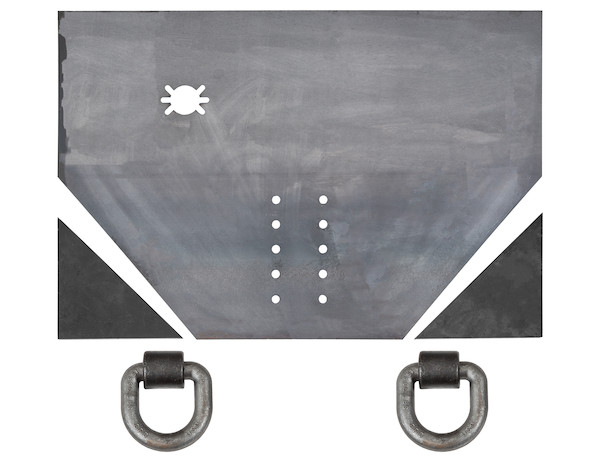

Included are two D-rings and weld-on gussets for custom placement.

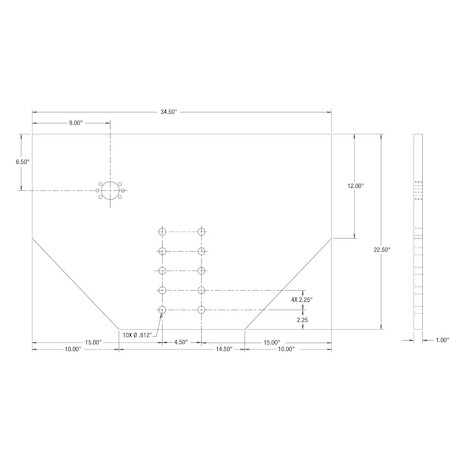

Hole Diameter: .56” for 1809027A, 1809040, 1809042, 1809043 .812” for 1809029 Vertical Hole Spacing: 1.75” for 1809027A, 1809040, 1809042, 1809043 2.25” for 1809029 Horizontal Hole Spacing: 3.38” for 1809027A, 1809040, 1809042, 1809043, 4.5” for 1809029
Lets you build your hitch plate to meet your specific vehicle and needs.
Features:
- Customize your hitch plate to meet your specific vehicle and needs.
- Multiple pintle hook mounting positions.
- Choose the thickness you need.
- ***4.5" bolt centers on 1809029 fits PH30, 30-Ton Pintle Hitch.
- Please Note: Items not compatible with Air Compensated Pintle Hooks.
- Dump Trucks
Technical Details
- Mfg #
- 1809029
- SKU
- 1809029
- UPC
- 724920163439
- NMFC #
- 106140
- Weight
- 217 lbs.
- Receiver Size (in.)
- - inch
- M.G.T.W. (lbs.)
- Not Rated pounds
- M.V.L. (lbs.)
- - pounds
- Finish
- Plain
- Hitch Plate or Bumper
- Fabricator's Kit
- Material
- Carbon Steel
- Height (in.)
- 22.50 inch
- Width (in.)
- 34.50 inch
- Thickness (in.)
- 1.00 inch
- Application Summary
- Dump Truck
- Application Specific (Y/N)
- No
