Product Information
Description:

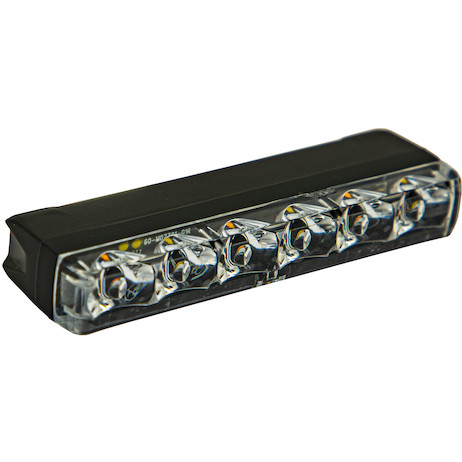

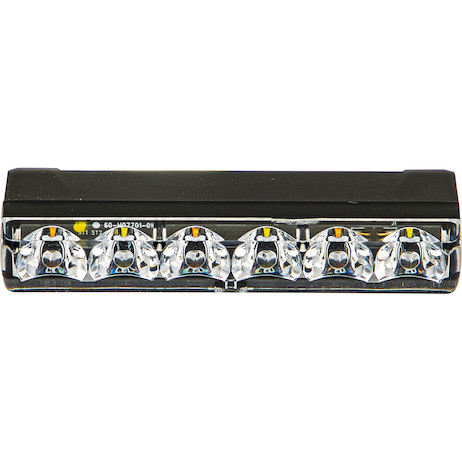

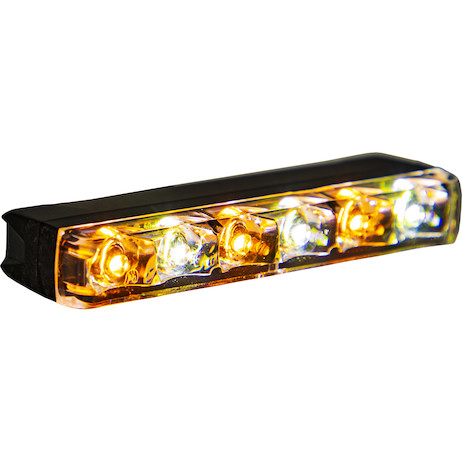

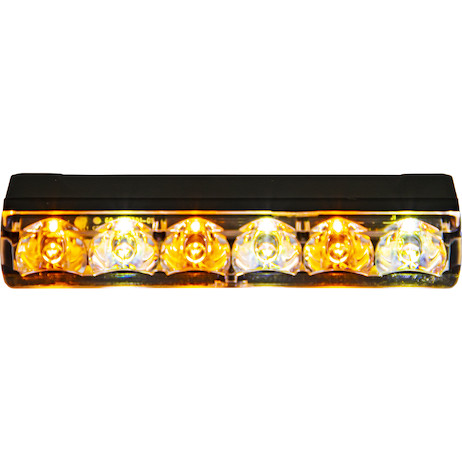

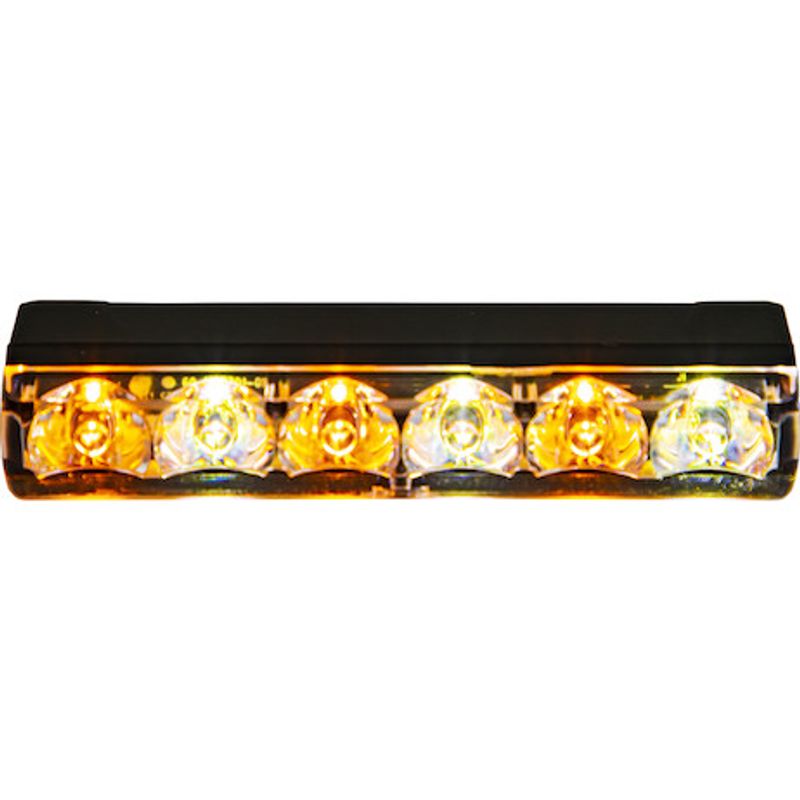

Narrow Profile 3.5 Inch LED Strobe Light Series
Buyers Products Narrow Profile 3.5 Inch LED Strobe Light Series is designed to fit the narrow spacing in a vehicle's front grille or between the rear bumper and tailgate of pickup trucks. The strobe is CA13 certified and rated SAE J595 Class 1 and IPX8 waterproof.

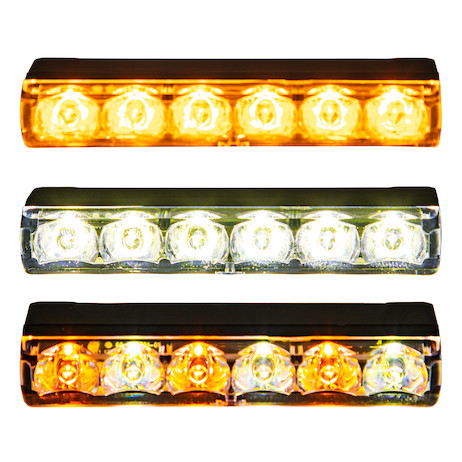

The narrow profile strobe light is available in three different colors. It features 18 flash patterns (single color) or 28 flash patterns (dual color) with synchronous and alternating functions.
Lights are backed with a 5 year warranty.
Rated SAE J595 Class I with 16 (single color) or 28 (dual color) flash patterns and synchronous and alternating functions.
Features:
- Narrow profile fits tight spaces.
- Mounting hardware and brackets are included.
- Available with SAE J595 Class 1 rating and CA13 certification.
- IPX8 waterproof rating.
- Backed with a 5 year warranty.
- Trucks
- Utility Trucks
- Pickup Trucks
- Construction Vehicles
Technical Details
- Mfg #
- 8892712
- SKU
- 8892712
- UPC
- 724920232029
- NMFC #
- 17870SUB5
- Weight
- 1 lbs.
- Dimensions
- 4 × 2 × 2 inches
- SAE Classification
- J595 Class 1
- California Title 13
- True
- Number of Flash Patterns
- 28
- Certification
- SAE J595 Class 1, IPX8, CA13
- Grommet/Base Included
- Y
- Color
- Amber/Clear
- Alternating Function (Y/N)
- Y
- Synchronous Function
- Y
- Type of Flash Pattern
- Synchronous or alternating
- Class Level
- 1
- Hard Wired or Plug
- Hard Wired
- Lens Shape
- Rectangular
- Lead Length
- 9 inch
- IP Rating
- IPX8
- Mount Type
- Surface
- Height
- 0.51 inch
- Depth
- 1.05 inch
- Overall Width
- 3.36 inch
- Number of Wires
- 5
- Base / Mount Type
- Surface
- Housing Material
- Aluminum
- Voltage
- 12-24 vdc
- Amp draw at 12 Volts
- 1.2 amps
- Type of Plug
- Blunt Cut
