Buyers Products

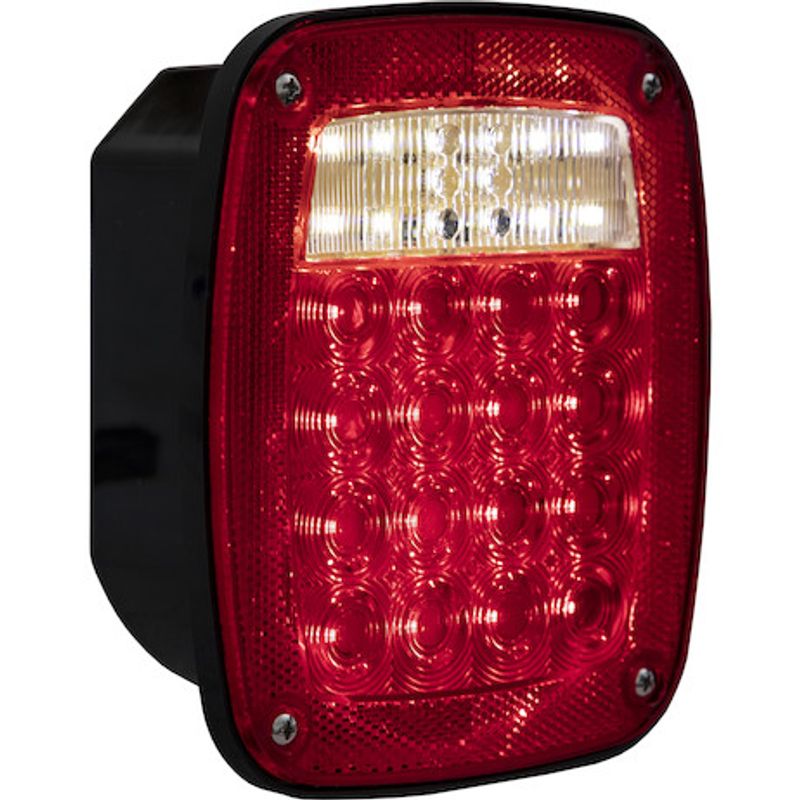

Passenger Side 5.75 Inch Red Stop/Turn/Tail Light

$46.30

Product Information

Description:

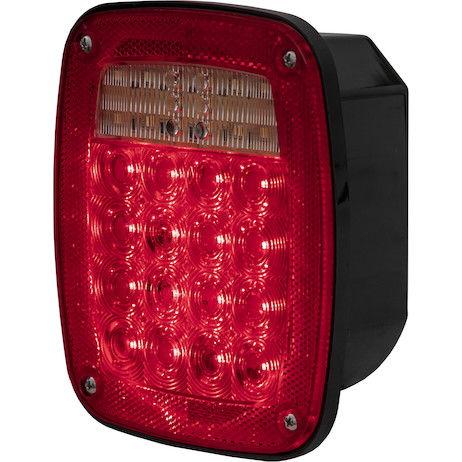

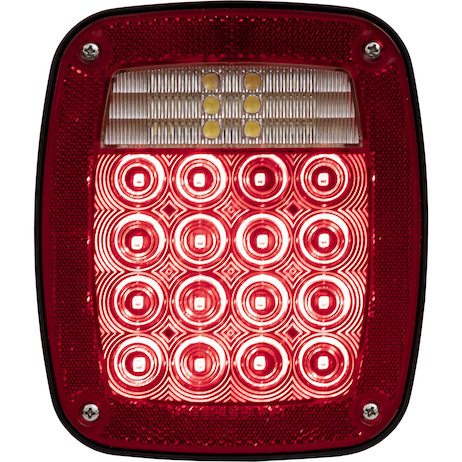

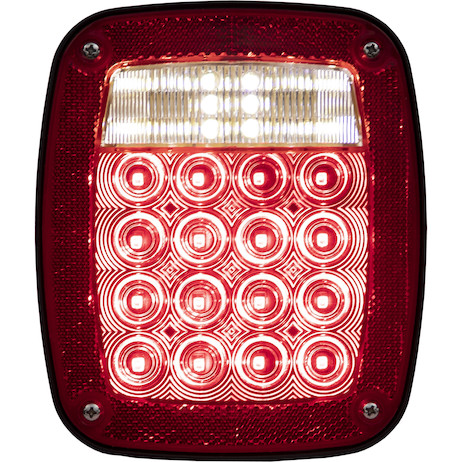

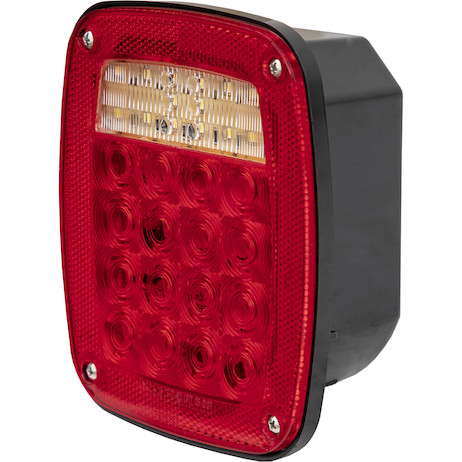

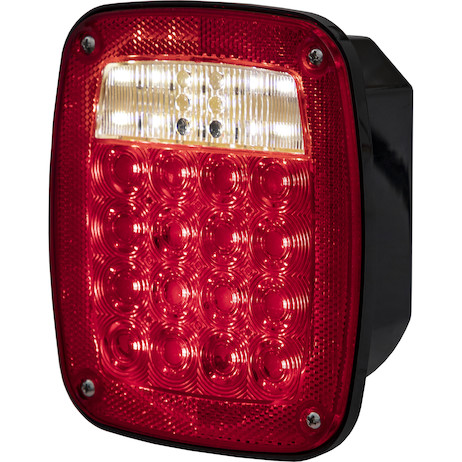

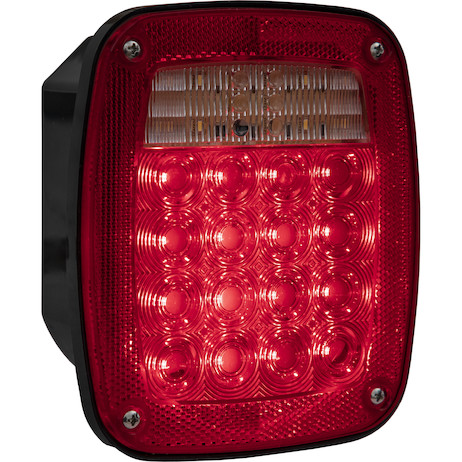

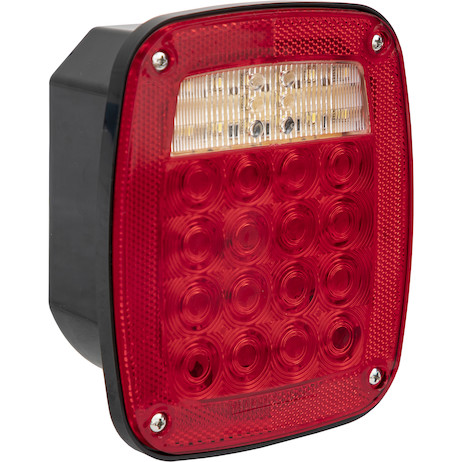

5.75 Inch Box Style Stop/Turn/Tail Light

Buyers Products 5.75 Inch Box Style Stop/Turn/Tail Light can be used as an OEM replacement for your truck chassis/service body lights. The light features an internal Reflex optic, which eliminates the need for a separate reflector. The driver side version also includes a license plate light.

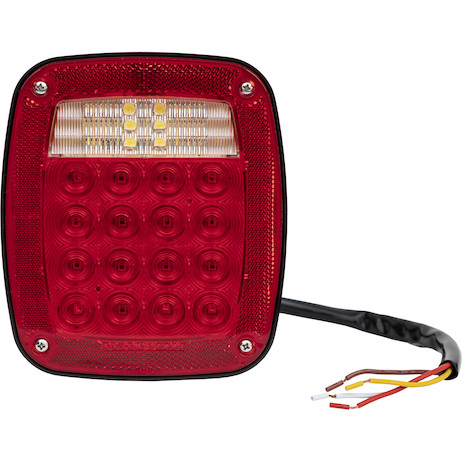

Lights have a red lens and are hard-wired with blunt cut leads and a 3-stud mounting pattern. An optional license plate bracket is also available.

The lights are backed with a limited lifetime warranty.

Used on trucks and trailers to meet FMVSS/CMVSS 108 regulations.

Features:

  • Includes internal Reflex optics to eliminate the need for a separate reflector.
  • The driver side version (5626738) also includes a license plate light.
  • 5626734 has 16 Red and 14 Clear LEDS. 5626738 has 16 Red and 17 Clear LEDs.
  • Optional 5626700 license plate bracket is available.
  • Backed with a limited lifetime warranty.
  • Box Trucks
  • Chassis Replacement Lights
  • Service Body Trucks

Technical Details

Mfg #
5626734
SKU
5626734
UPC
724920113885
NMFC #
17870SUB7
Weight
1 lbs.
Dimensions
7 × 4 × 6 inches
Height
6.750 inch
Depth
- inch
Base / Mount Type
Surface
Housing Material
Plastic
Overall Width
5.750 inch
Number of Contacts
Plug Included
No
Number of Wires
4
Operating Temperature
fahrenheit
Wattage
1.09 watts
Amp draw at 12 Volts
0.091 amps
Voltage
12 vdc
Lens Material
Polycarbonate
Lens Shape
Rectangular
Type of Plug
Blunt Cut
Built-In Switch
No
Hard Wired or Plug
Hard Wired
Color
Red
