SaltDogg

SaltDogg Hydraulic Replacement Tailgate Spreader Drivers Discharge

$5,027.10

Product Information

Description:

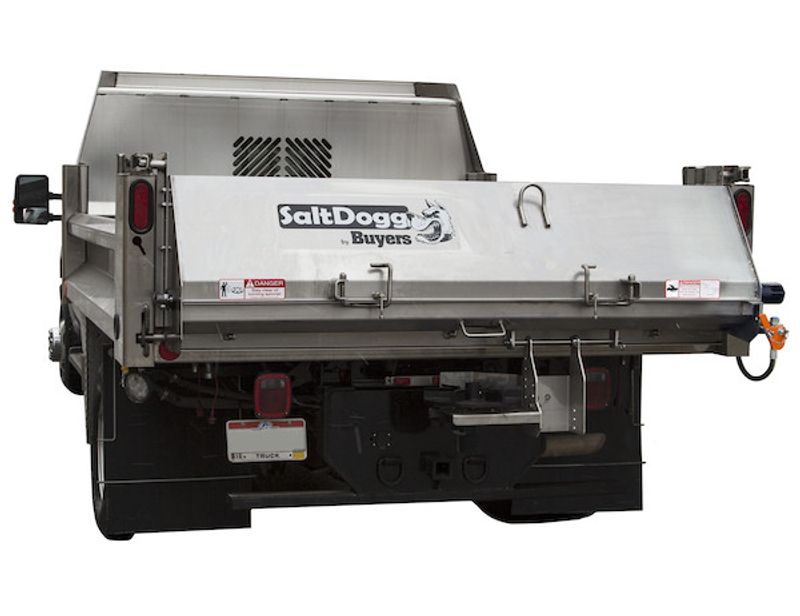

SaltDogg® Hydraulic Replacement Tailgate Spreader

Buyers Products SaltDogg Hydraulic Replacement Tailgate Spreader is designed to install in place of the tailgate on 1 ton dump bodies. It is easy to mount and dismount and is ideal for dump bodies with low ground clearance. The spreader can handle bulk salt or a 50/50 salt/sand mix.

The spreader is constructed of corrosion resistant 304 stainless steel. It features an anti-flow plate as well as a lifting loop for ease of installation. The spreader is equipped with a 6 in. dual flight auger with 3/8 in. flighting to keeps material moving. It's driven by a single direct drive hydraulic motor and has screens on either end.

The 18 in. poly spinner uses its own independent hydraulic motor to spread material up to 25 ft with a driver side or center discharge.

Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS. See Related Products below..

Is designed to fit in place of the tailgate of 1 ton, 96 in. wide dump bodies.

Features:

  • Fits in place of tailgate on a 1 ton/super duty dump body.
  • Ideal for dump bodies with low ground clearance.
  • Auger and spinner powered by independent hydraulic motors.
  • Made to handle bulk salt or a 50/50 salt/sand mix.
  • Hydraulic spreader controls sold separately with variety of options available.
  • 18 in. spinner casts up to 25 ft.
  • Durable stainless steel auger keeps material moving.
  • High quality 304 stainless steel construction.
  • Available with center or left side discharge.
  • Easy to mount and remove with built-in lift point.
  • Made in the USA.
  • Salt Spreaders
  • Snow and Ice Control
  • Road and Highway Maintenance

Technical Details

Mfg #
9035103
SKU
9035103
UPC
724920151054
NMFC #
130355SUB3
Weight
535 lbs.
Dimensions
90 × 32 × 20 inches
Hopper Material
304 Stainless Steel
Capacity
- cubicyards
Drive Type
Hydraulic
Vehicle Application
Multiple Dump Body Configurations
Feed Mechanism2
6 in. Auger with 3/8 in. Flighting
Discharge Position
Driver Side
Gearbox Ratio
Direct
Spreading Width Range
4 To 25 feet
Chute Primary Material
304 Stainless Steel
Spinner Material
Polyurethane
Spinner Diameter
18.00 inch
Chute
Adjustable Height
Controller Type
Not Included
Vibrator Included?
No
Number of Motors
2
Trough Material
304 Stainless Steel
Feed Mechanism
Horizontal Auger
Top Screen
Yes
Included Cover
Y
Works with Bagged #1 Rock Salt
Yes
Works with Bulk Sand
No
Works with Salt / Sand Mix
Yes
Works with Bulk Salt
Yes
Overall Height (in.)
36.00 inch
Overall Width (at top)
84.27 inch
Overall Length
23.80 inch
Hopper Width (in.)
84.27 inch
Hopper Length (in.)
23.80 inch
