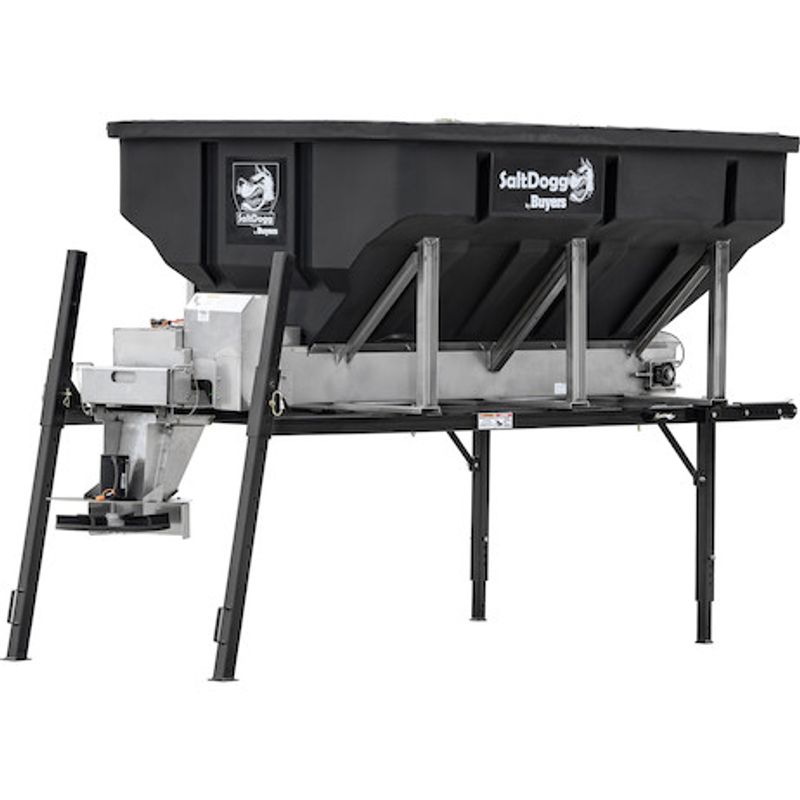

SaltDogg® PRO4000MCH Series Poly Hopper Spreader with Chain

$13,347.60

Product Information

Description:

SaltDogg® PRO4000CH Series Poly Hopper Spreaders with Conveyor Chain

NEW: The SaltDogg PRO4000MCH Spreader with Conveyor Chain, combining the power and reliability of SaltDogg® PRO Series Spreaders with the advantages of modern CAN bus architecture. With a compact MultiPlex controller and a single, small control cable running to the cab, installation is quick and hassle-free. The direct power connection from the battery to the spreader ensures seamless operation. Unloading excess material is a breeze thanks to the rear-mounted controls and swing-away chute. Multiple speed presets, a convenient pause button, and an adjustable spread pattern"”made possible by the height-adjustable chute and material deflector"”let you work with precision and efficiency.

Buyers Products SaltDogg PRO4000CH Series Poly Hopper Spreaders are a powerful spreader designed for commercial and municipal use. The spreader works with dump trucks and flatbeds with a minimum 17,500 GVW (gross vehicle weight). The 4 cubic yard spreader handles bulk salt, sand, or a 50/50 salt/sand mix. Its electric-powered design means quieter operation that doesn't require refueling or engine servicing, giving you more time on the road. The hydraulic version provides the extra power needed for municipal applications.

A PRO Series spreader is an investment made to last. The double-wall, lighter weight, all-poly hopper won't rust or dent. A simple cleaning makes it look like new. The spreader is supported by a corrosion-resistant stainless steel frame. An inverted V eases start up and works with the included 400 lbs. vibrator to break up clumps and keep material flowing.

The all steel 14-1/2 in. pintle chain conveyor with 1/4 in. bars, driven by a 3/4 HP, 12V gear motor or 3.17 CI hydraulic motor, feeds material at a smooth, steady pace. An 18 in. polymer spinner, powered by an independent 1/2 HP, 12V motor or 3.17 CI hydraulic motor, casts material 5-30 ft. The adjustable chute has an open trough and stainless steel spinner shield. The spinner assembly is easily removable for cleaning and storage.

Intuitive in-cab controls for the electric version let you independently manage conveyor and spinner speeds and turn the vibrator on and off with the flick of a switch. The spreader also comes standard with two steel top screens and a vinyl tarp with tie down kit.

The PRO4000CH Series is backed with a 2-year warranty.

A powerful spreader for commercial and municipal use.

Features:

  • Works with dump trucks and flatbeds with minimum 17,500 lb GVW (gross vehicle weight).
  • Durable 4 cubic yard poly hopper with stainless steel frame and trough.
  • 12V DC-powered electric or hydraulic drive with independent conveyor and spinner motors.
  • Handles bulk salt, sand, or a 50/50 sand/salt mix.
  • In-cab control of independent auger and spinner speeds, with vibrator control electric version only.
  • 18 in. spinner broadcasts material up to 30 ft.
  • A high flow 14-1/2 inch conveyor chain keeps the material moving to the spinner.
  • Included 400 lb vibrator keeps material from clumping and getting stuck.
  • Top screens, inverted V, and tie downs included
  • Backed with a 2 year warranty.
  • Made in the USA.
  • Industrial Parking Lots
  • City Roadways
  • Commercial Properties
  • Apartment Complexes

Technical Details

Mfg #
PRO4000MCH
SKU
PRO4000MCH
UPC
724920261821
NMFC #
130355SUB6
Weight
912 lbs.
Dimensions
115 × 74 × 44 inches
Chute
Adjustable Height w/Side Swing
Number of Motors
2
Overall Height (in.)
43.50 inch
Overall Length
114.80 inch
Overall Width (at top)
74.00 inch
Vibrator Force
450 pounds
Works with Bulk Sand
Yes
Feed Mechanism2
14 1/2 in. Pintle Chain with 1/4in. Bars
Hopper Width (in.)
74.00 inch
Hopper Color
Black
Hopper Material
Polyethylene
Spreading Width Range
5 to 30 feet
Vibrator Included?
Yes
Chute Primary Material
Polyethylene
Controller Type
High Current Variable Speed
Drive Motor Horse Power
0.75 horsepower
Gearbox Ratio
20:1
Works with Bagged #1 Rock Salt
Yes
Works with Salt / Sand Mix
Yes
Drive Type
Electric
Hopper Length (in.)
99.50 inch
Spinner Diameter
18.00 inch
System Voltage
12 vdc
Works with Bulk Salt
Yes
Frame Base Width
56.40 inch
Spinner Material
Polyurethane
Trough Material
304 Stainless Steel
Capacity (Cu. Ft.)
4.00 cubicfeet
Feed Mechanism
Conveyor Chain
Spinner Motor Horse Power
0.50 horsepower
Top Screen
Yes
