SaltDogg

SaltDogg Under Tailgate Spreader Standard Discharge-8 Inch Sides-Stainless Steel

$4,830.80

Product Information

Description:

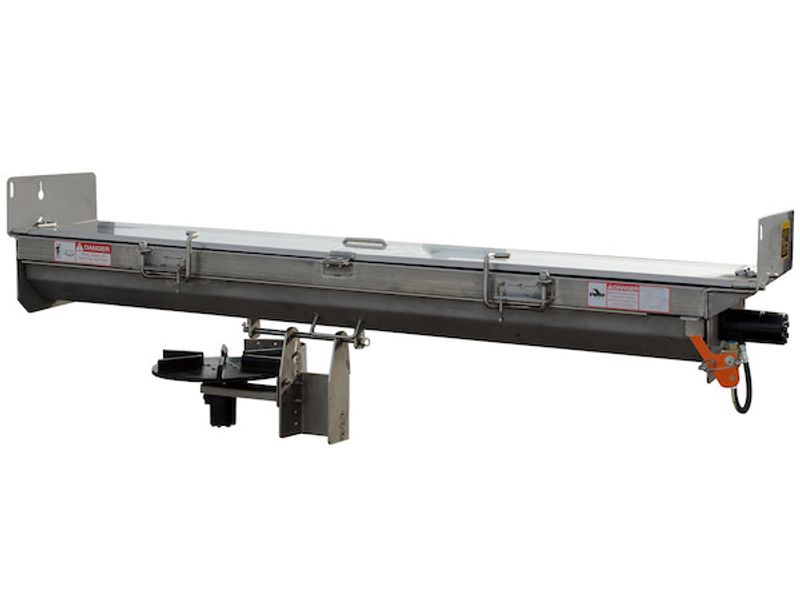

SaltDogg® Hydraulic Under Tailgate Spreader

Buyers Products SaltDogg Hydraulic Under Tailgate Spreader is the perfect way for contractors and municipalities to convert their dump trucks into winter warriors. It can handle spreading bulk sand, salt, or 50/50 salt/sand mixes and fits 96 in. wide dump bodies.

The spreader is built to last with corrosion resistant 304 stainless steel. It features an anti-flow plate and a hydraulic safety lockout. Its 6 in. auger with 3/8 in. flighting provides steady material flow. An auger screen is included to help break up clumps and prevent jams, and a three-point hinged bottom cover allows easy access to the entire auger assembly and hassle-free cleaning.

Spread material up to 40 ft with the 18 in. poly spinner (available with standard, center, or driver side discharges). The spreader is also available in direct drive or 5:1 gearbox configurations. Both systems feature sealed, self-aligning 1-1/4 in. diameter bearings with grease fittings and low-speed, high-torque orbital motors.

Buyers Products offers additional options that can make the spreader suit your needs, including hard-face flighting and stainless steel spill shields. Call for more information.

Hydraulic spreader controls are sold separately. A variety of options are available, including manual hydraulic, manual with load sensing, and electric over hydraulic, available with or without GPS. See Related Products below.

Features corrosion resistant 304 stainless steel construction.

Features:

  • Works with 96 in. wide dump bodies.
  • Rugged 6 in. auger with 3/8 in. flighting.
  • Independent hydraulic auger and spinner motors.
  • Handles bulk salt or a 50/50 sand/salt mix.
  • 18 in. poly spinner can cast material up to 40 ft.
  • High quality 304 stainless steel construction.
  • Made in the USA.
  • Dump Bodies
  • Snow and Ice Control
  • Road and Highway Maintenance

Technical Details

Mfg #
92420SSA
SKU
92420SSA
UPC
724920101851
NMFC #
130355SUB5
Weight
482 lbs.
Dimensions
96 × 20 × 26 inches
Discharge Position
Standard
Side Plate Height
8.00 inch
Feed Mechanism2
6 in. Auger with 3/8 in. Flighting
Gearbox Ratio
Direct
Spreading Width Range
4 To 40 feet
Spinner Material
Polyurethane
Spinner Diameter
18.00 inch
Chute Primary Material
304 Stainless Steel
Chute
Adjustable Height
Controller Type
Not Included
Vibrator Included?
No
Number of Motors
2
Drive Type
Hydraulic
Vehicle Application
Multiple Dump Body Configurations
Capacity
- cubicyards
Hopper Material
304 Stainless Steel
Overall Height (in.)
31.25 inch
Overall Length
18.00 inch
Overall Width (at top)
96.00 inch
Hopper Width (in.)
96.00 inch
Works with Bulk Salt
Yes
Hopper Length (in.)
18.00 inch
Works with Salt / Sand Mix
Yes
Works with Bulk Sand
Yes
Works with Bagged #1 Rock Salt
Yes
Included Cover
Y
Top Screen
Yes
Feed Mechanism
Horizontal Auger
