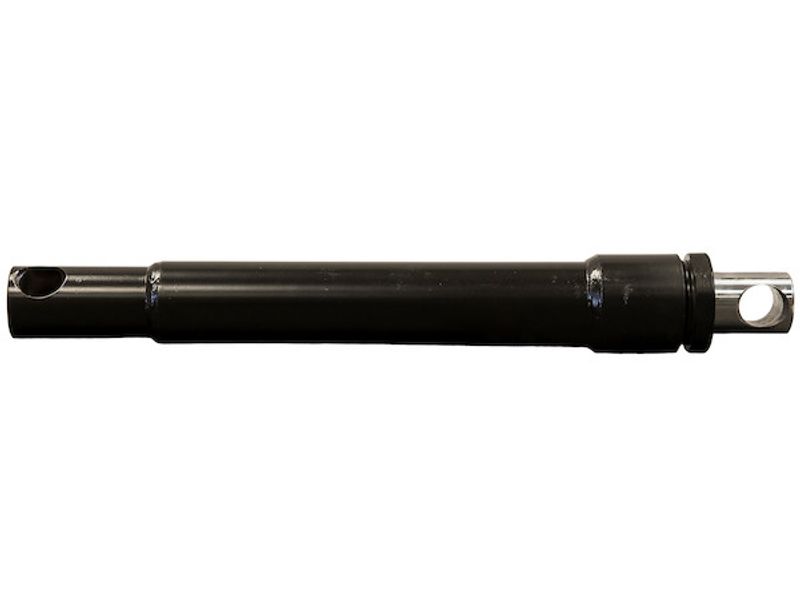

SAM 1-1/2 x 10 Inch Power Angling Cylinder Old Style-Replaces Western #25209
$98.84
Product Information
Description:
SAM Angle and Lift Cylinders to fit Western® Snow Plows
SAM Angle and Lift Cylinders to fit Western Snow Plows are similar to Western OEM: 25209, 56538K, 56614, 64148, 56750, 56102, 56709W, 25200, 25210, and 25878.
Are similar to Western OEM: 25209, 56538K, 56614, 64148, 56750, 56102, 56709W, 25200, 25210, and 25878.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1304200
- SKU
- 1304200
- UPC
- 724920015028
- NMFC #
- 119260
- Weight
- 13 lbs.
- Dimensions
- 21 × 3 × 3 inches
- Center to Center Extended
- 27.000 inch
- Base Diameter/Thickness
- 1.750 inch
- Center to Center Retracted
- 17.000 inch
- Rod Diameter/Thickness
- 1.500 inch
- Acting
- Single
- Stroke
- 10.000 inch
- Bore
- 1.500 inch
- Port Size
- 1/4 NPT
- OEM Primary Part Number
- 25209
- Western®
- 25209
- OEM Primary Brand
- Western®
- OEM Brand 2_1
- -
- OEM Part Number 2
- -
- OEM Brand 4_1
- -
- OEM Brand 3_1
- -
- OEM Part Number 3
- -
- OEM Part Number 4
- -
- OEM Part Number 5
- -
- OEM Brand 5_1
- -
- Pin Size
- 1 inch
- Port Location
- Inline
