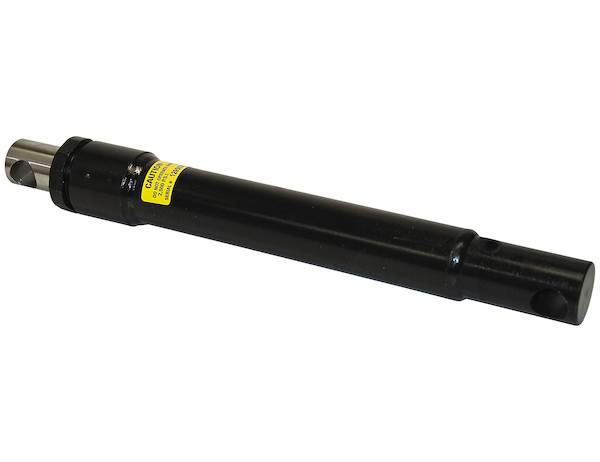

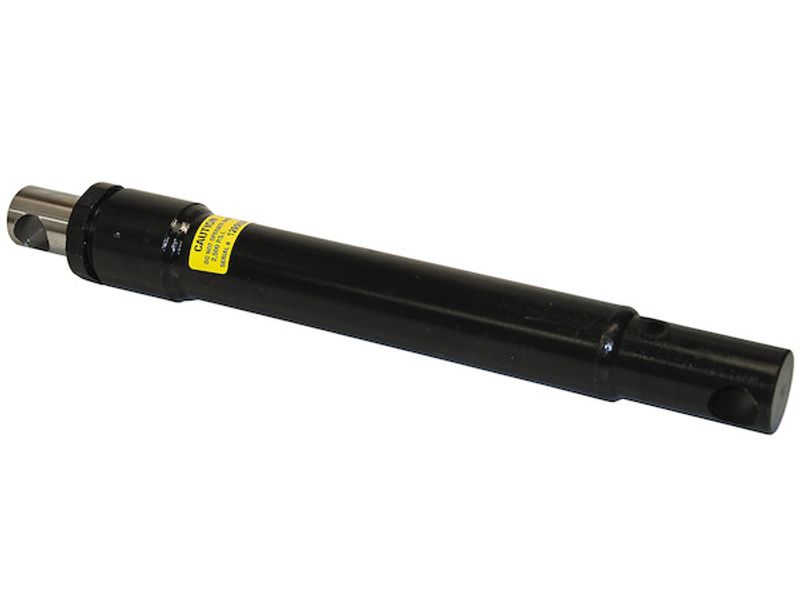

SAM 1-1/2 x 10 Inch Power Angling/Lift Cylinder-Replaces Meyer/Diamond #81700020
$114.45
Product Information
Description:
SAM Lift and Angle Cylinders to fit Meyer®/Diamond® Snow Plows
SAM Lift and Angle Cylinders to fit Meyer/Diamond Snow Plows are similar to Meyer/Diamond OEM: 05810, 07968, 05437, 05752 and 05984; Diamond OEM: 81700020.
Are similar to Meyer/Diamond OEM: 05810, 07968, 05437, 05752 and 05984; Diamond OEM: 81700020.
Features:
- References to manufacturers or brands are for descriptive purposes only.
Technical Details
- Mfg #
- 1304100
- SKU
- 1304100
- UPC
- 724920003612
- NMFC #
- 119260
- Weight
- 14 lbs.
- Dimensions
- 20 × 3 × 4 inches
- Port Location
- 90°
- Port Size
- 1/4 NPT
- Bore
- 1.500 inch
- Acting
- Single
- Stroke
- 10.000 inch
- Center to Center Retracted
- 17.250 inch
- Center to Center Extended
- 27.250 inch
- Rod Diameter/Thickness
- 1.500 inch
- Base Diameter/Thickness
- 1.750 inch
- Pin Size
- 1.000 inch
- OEM Primary Brand
- Meyer®
- Meyer®
- 81700020
- OEM Primary Part Number
- 81700020
- OEM Brand 2_1
- -
- OEM Part Number 2
- -
- OEM Brand 3_1
- -
- OEM Brand 4_1
- -
- OEM Brand 5_1
- -
- OEM Part Number 3
- -
- OEM Part Number 4
- -
- OEM Part Number 5
- -
